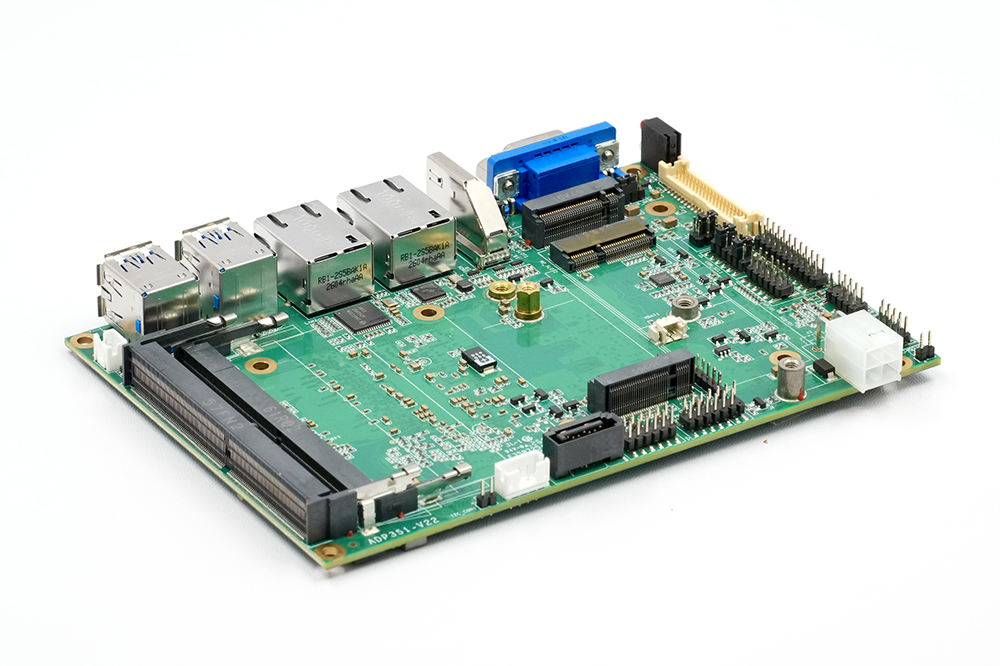

PCM-ADP351 industrial motherboard 3.jpg

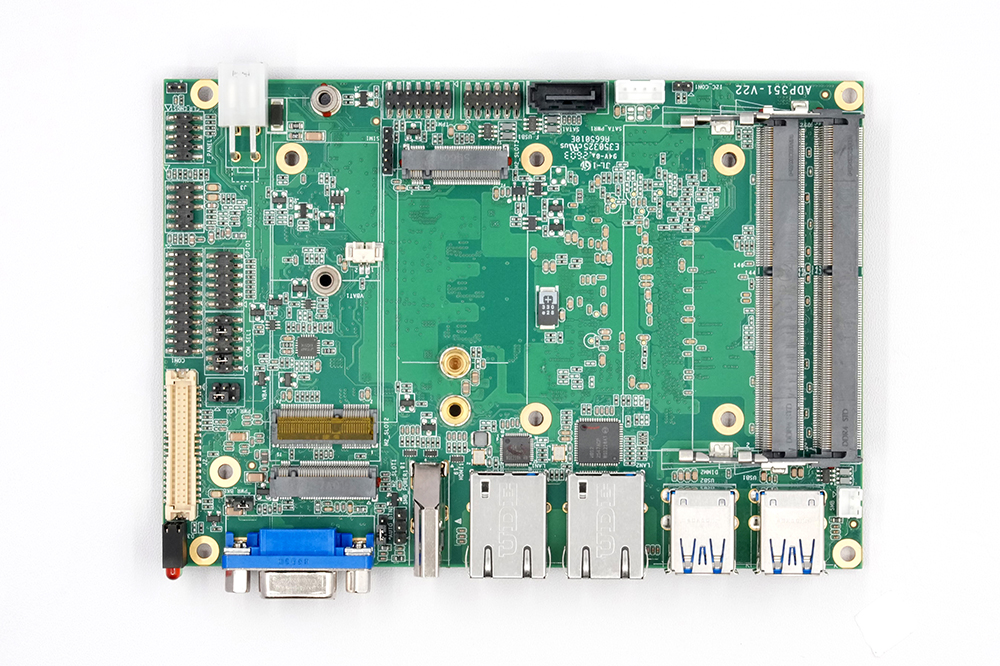

PCM-ADP351 industrial motherboard 4.jpg

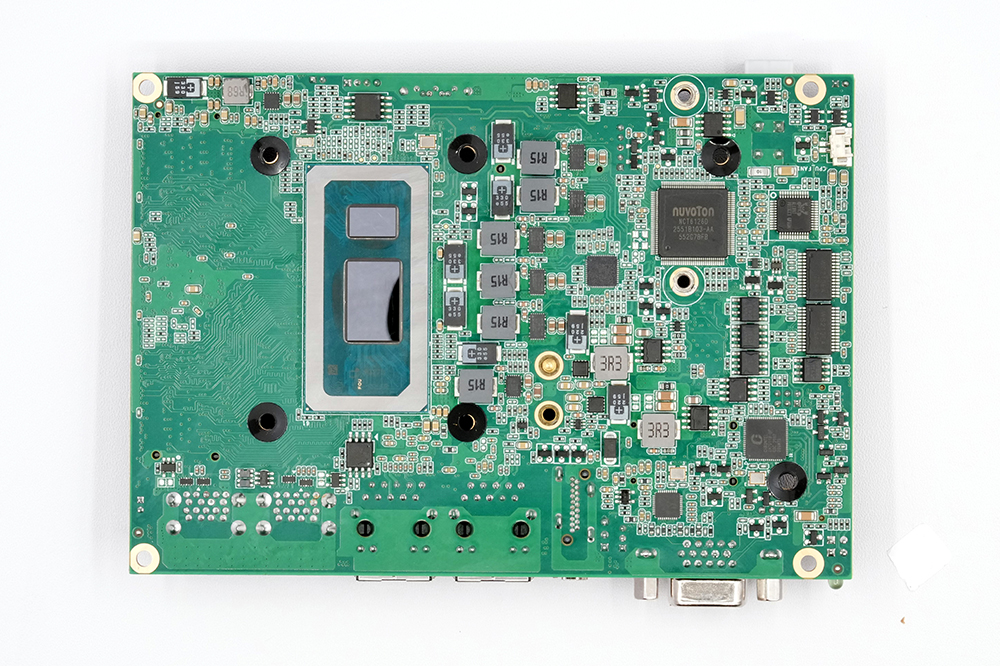

PCM-ADP351 industrial motherboard 5.jpg

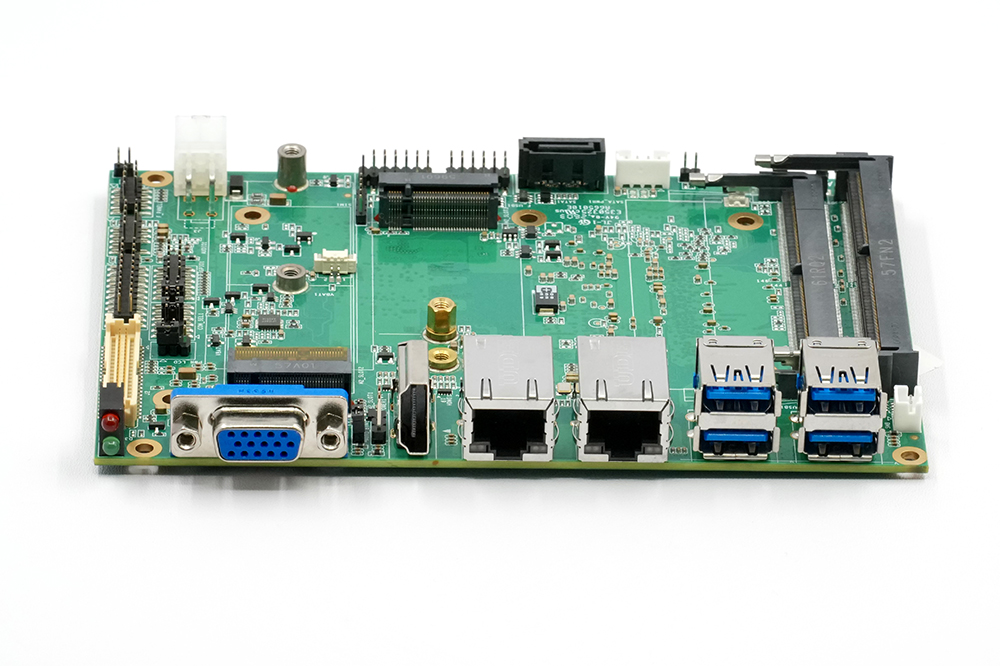

PCM-ADP351 industrial motherboard 1.jpg

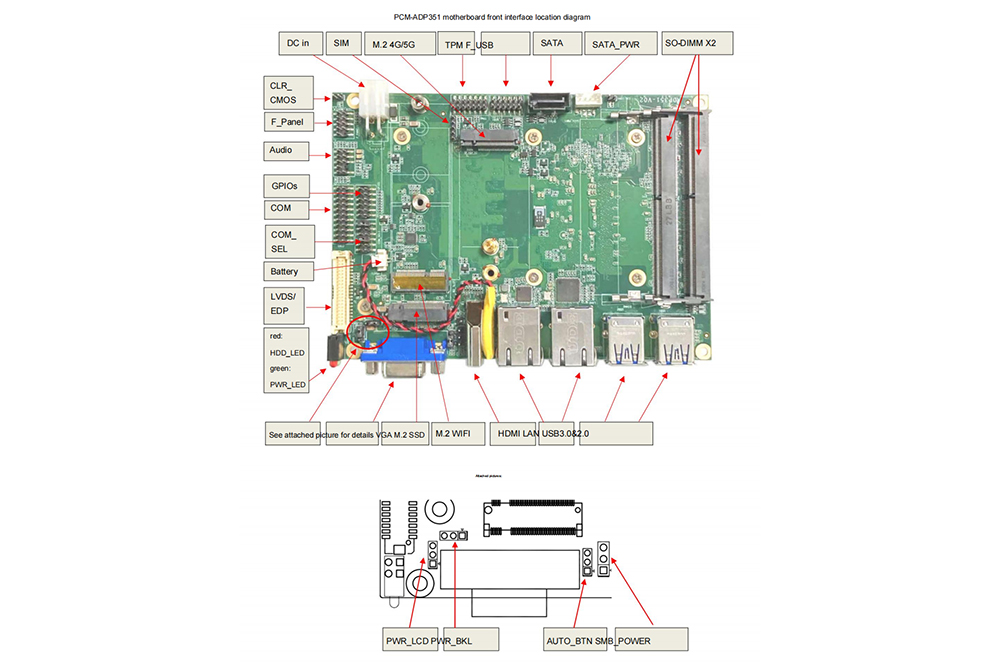

PCM-ADP351 industrial motherboardsavge.jpg

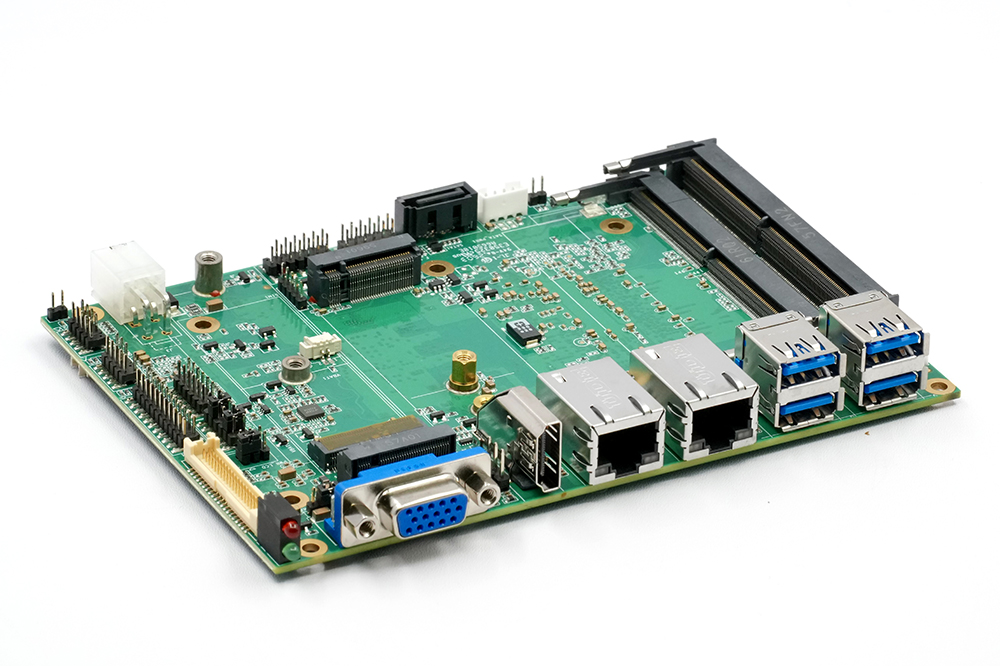

PCM-ADP351industrial motherboard 2.jpg

Wide Temperature X86 Industrial Motherboard with 12th&13th Gen Intel CPU

PCM-ADP351 is a 3.5-inch x86 industrial motherboard equipped with 12th Alder Lake-P and 13th Raptor Lake-P Intel Core CPUs. It supports dual-channel DDR4 SO-DIMM memory up to 64GB, dual Gigabit Ethernet, multiple display outputs and abundant industrial serial & GPIO ports. With wide-temperature design, it operates stably from -20°C to +60°C, with optional -40°C~+75°C extended temp range. It features diverse storage and M.2 expansion slots, wide 12V-19V DC input, compatible with Win10/11 and Linux. Ideal for machine vision, industrial gateway, automation equipment and self-service terminals.

    Contact us Download
    product details

    description1

    Product Introduction

    3.5-inch motherboard, with onboard Alder Lake-P/Raptor Lake-P series processors.

    Intel Alder Lake -P/Raptor Lake-P series processors

    » Supports up to 64GB DDR4 SO-DIMM dual-channel memory, frequency 2133/2666/ 3200MHz

    » Integrated Intel 12th Gen Xe LP Graphics Core

    » Supports VGA, HDMI, LVDS ( 18/24- bit single or dual channel) or EDP

    » Supports Intel 10/100/1000Mbit Ethernet, SATA, and NVMe SSDs

    » Supports USB 2.0 and USB 3.0 , serial port, and GPIO interface

    Input voltage: +12V~+19V , + 12V is recommended.

    » Operating temperature: -20 °C to + 60 °C (optional -40°C to + 75 °C )

    Technical Information

    Plate type 3.5-inch motherboard
    Processor Intel Core i3-1215U, 2C+4A, up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core i3-1215UE, 2C+4A, up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core i3-1220P, 2C+8A, up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 28W-64W
    Intel Core i5-1235U, 2C+8A, up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core i5-1240P, 4C+8A, up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 28W-64W
    Intel Core i5-1245UE, 2C+8A, up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core i7-1255U, 2C+8A, up to 4.7 GHz (P-Core) 3.5 GHz (E-Core), 15W-55W
    Intel Core i7-1260P, 4C+8A, up to 4.7 GHz (P-Core) 3.4 GHz (E-Core), 28W-64W
    Intel Core i7-1265U, 2C+8A, up to 4.8 GHz (P-Core) 3.6 GHz (E-Core), 15W-55W
    Intel Core i7-1265UE, 2C+8A, up to 4.7 GHz (P-Core) 3.5 GHz (E-Core), 15W-55W
    Intel Core i3-1315U, 2C+4A, up to 4.5 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core i5-1335U, 2C+8A, up to 4.6 GHz (P-Core) 3.4 GHz (E-Core), 15W-55W
    Intel Core i3-1315UE, 2C+4A, up to 4.5 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core i5-1335UE, 2C+8A, up to 4.5 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core i7-1355U, 2C+8A, up to 5.0 GHz (P-Core) 3.7 GHz (E-Core), 15W-55W
    Intel Core i7-1365UE, 2C+8A, up to 4.9 GHz (P-Core) 3.7 GHz (E-Core), 15W-55W
    Memory Two dual-channel SO-DIMM DDR4 memory modules, maximum 64GB, frequency 2133/2666/3200MHz
    Graphics processing Supports one HDMI port with a maximum resolution of 3840x2160 @ 60Hz, and one VGA port with a maximum resolution of 1920x1080 @ 60Hz.
    Supports one 18/24-bit single-channel or dual-channel LVDS, with a maximum resolution of 1920x1080 @ 60Hz, or EDP.
    Network card Supports two Intel 10/100/1000Mbit Ethernet ports (Intel® I219V and I211AT/I210AT)
    Storage Supports one SATA 3.0 interface and one M.2 SSD (M-Key 2280 SSD NVMe).
    mPCIe Supports one M.2 WIFI port (E-Key 2230 PCIe x1 & USB 2.0)
    Supports one M.2 4G/5G port (B-Key 3042/3052 PCIe x1 & USB 2.0)
    USB Supports 4 front-panel USB 3.0/2.0 ports and 4 internal USB 2.0 ports.
    Serial port Supports 6 RS232 (3-wire) ports, with COM1 and COM2 selectable between RS232/422/485.
    IO Supports 8 GPIOs, 1 SIM card slot (optional), and 1 TPM socket.
    Sound card ALC662/897 High-Fidelity Sound Card (Line-in, Line-out, Mic-in)
    Power supply +12V~+19V, +12V is recommended.
    Temperature Operating temperature: -20°C to +60°C (optional: -40°C to +75°C)
    Size 146 mm x 102 mm
    Heat dissipation Fan cooling
    Operating system Windows 10, Windows 11, Linux
