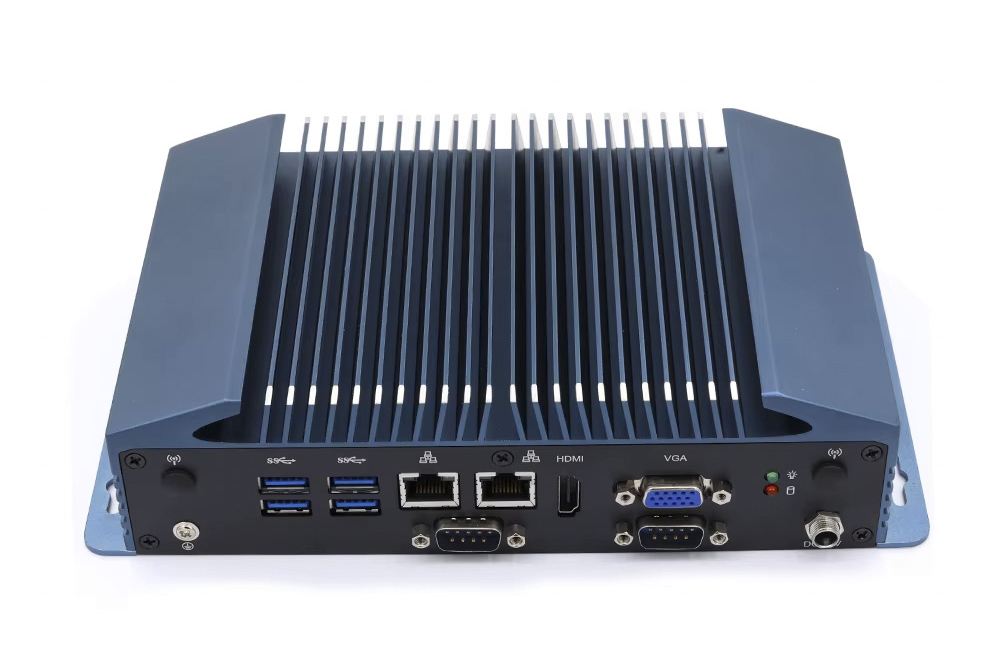

ECS-E351 fanless industrial pc 01 mini industrial computer.jpg
ECS-E351 fanless industrial pc 01.jpg

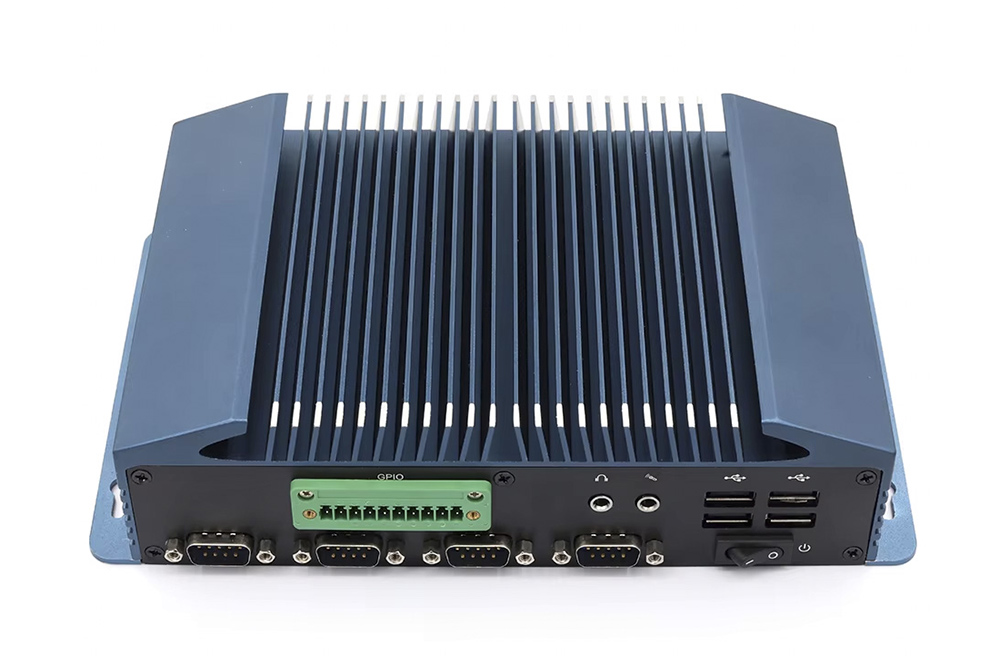

ECS-E351 fanless industrial pc 02.jpg

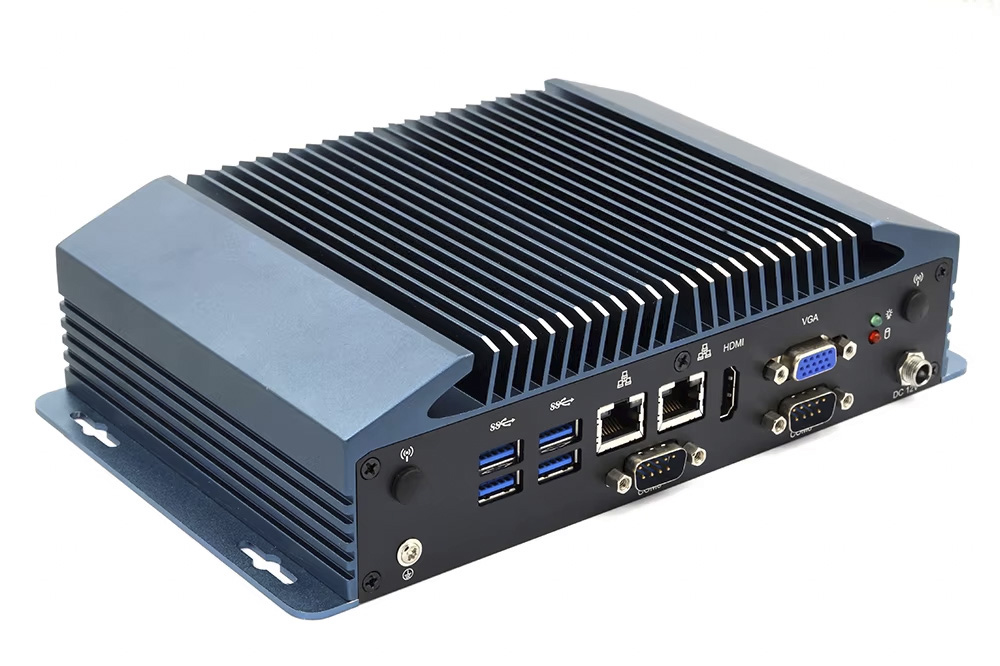

ECS-E351 fanless industrial pc 03.jpg

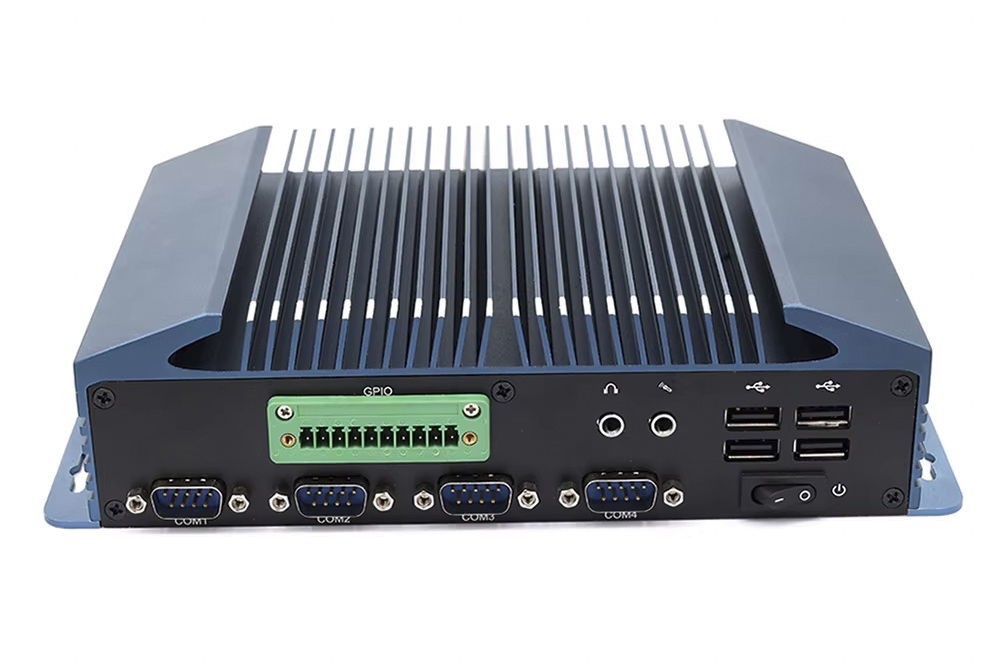

ECS-E351 fanless industrial pc 04.jpg

Wide Temperature X86 Fanless Embedded Computer, Elkhart Lake CPU Max 32GB DDR4, Rich Serial USB Dual Ethernet Ports

ECS-E351 is a fanless X86 industrial mini PC powered by scalable Intel Elkhart Lake Celeron/Atom low-power CPUs. It supports up to 32GB DDR4 memory, dual gigabit LAN, 6 serial ports, 8 USB interfaces, dual HDMI/VGA display outputs, plus M.2 slots for WiFi and 4G/5G expansion. Built with all-aluminum passive cooling, it delivers outstanding wide-temperature performance, stably running from -20°C to +60°C (optional -40°C~+70°C). With wide 12-24V DC input and robust industrial I/O, it fits industrial automation, IoT edge gateways, machine vision and smart monitoring for 24/7 harsh-environment operation.

    Contact us Download
    product details

    description1

    Technical Information

    Processor Intel® Elkhart Lake series SOCs support:
    Intel® Celeron® N6210 Dual core 1.2 GHz up to 2.6 GHz, 6.5 W
    Intel® Celeron® N6211 Dual core 1.2 GHz up to 3.0 GHz, 6.5 W
    Intel® Celeron® J6412 Quad-core 2.0 GHz up to 2.6 GHz, 10 W
    Intel® Celeron® J6413 Quad-core 1.8 GHz up to 3.0 GHz, 10 W
    Intel® Celeron® N6415 Quad-core 1.2 GHz up to 3.0 GHz, 6.5 W
    Intel® Celeron® J6426 Quad-core 2.0 GHz up to 3.0 GHz, 10 W
    Intel® Atom® X6200FE Dual-Core 1.0 GHz, 4.5 W
    Intel® Atom® X6212RE Dual-core 1.2 GHz, 6W
    Intel® Atom® X6414RE Quad-core 1.5 GHz, 9W
    Intel® Atom® X6427FE Quad-core 1.9 GHz, 12W
    Intel® Atom® X6425RE Quad-core 1.9 GHz, 12W
    Intel® Atom® X6211E Dual-core 1.3 GHz up to 3.0 GHz, 6 W
    Intel® Atom® X6413E Quad-core 1.5 GHz up to 3.0 GHz, 9 W
    Intel® Atom® X6425E Quad-core 2.0 GHz up to 3.0 GHz, 12 W
    Memory SO-DIMM DDR4 memory (1.2V, supports up to 32GB) with a maximum frequency of 3200MHz.
    Graphics processing Supports one VGA port with a maximum resolution of 1920x1080 @ 60Hz
    Supports one HDMI port with a maximum resolution of 3840x2160 @ 60Hz.
    Network card Supports 2 REALTEK 8111H 10/100/1000Mbit Ethernet
    Storage One SATA 3.0 standard interface, one M.2 2280 SSD interface (PCIe x1 & SATA)
    PCIe Supports one M.2 WIFI port (E-Key 2230 PCIe x1)
    Supports one M.2 4G/5G port (B-Key 3042/3052 USB 2.0 & PCIe x1)
    USB Supports 4 USB 3.0 ports and 4 USB 2.0 ports.
    Serial port 4 RS232 (3-wire), 2 RS232 (3-wire) / RS422 / RS485
    IO Supports 8 GPIOs and 1 SIM card slot (expandable, optional).
    Sound card ALC662 High-Fidelity Sound Card (Line-Out, MIC-in)
    Power supply +12V to +24V voltage, +12V is recommended. Power on (default), trigger power on (optional).
    Adapter 60W or above
    Temperature Operating temperature: -20°C to +60°C (optional: -40°C to +70°C)
    Size 205 mm (length) x 140 mm (width) x 55 mm (height) (Overall dimensions excluding wall mount and external interface)
    Heat dissipation Fanless design
    Operating system Windows 10, Windows 11, Linux
    Weight 1.46 kg (bare machine), 2.55 kg (including packaging)
    Color The entire unit is blue, with black front and rear panels.
