Wide Temp X86 11th Gen Tiger Lake-U Industrial Mainboard with Max 32GB DDR4 Rich IO Dual Gigabit Ethernet
description1
Product Introduction

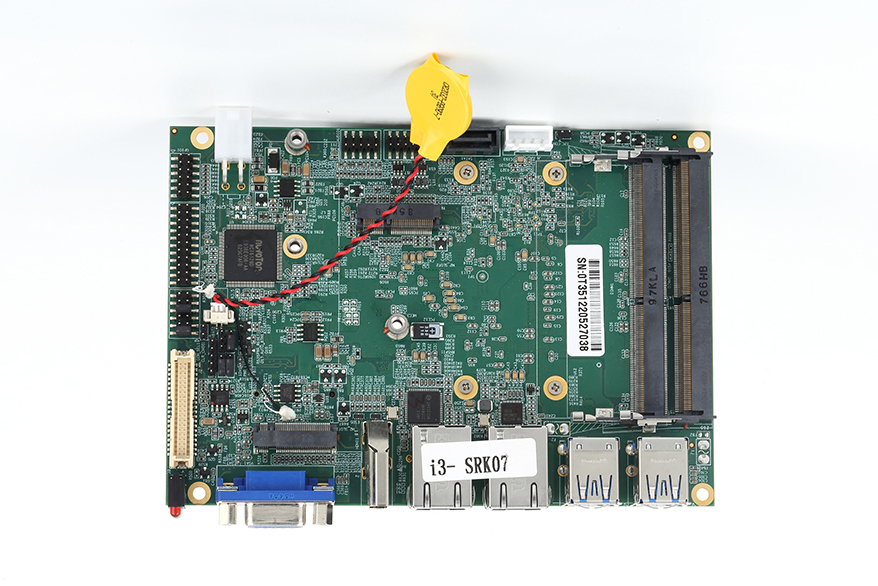

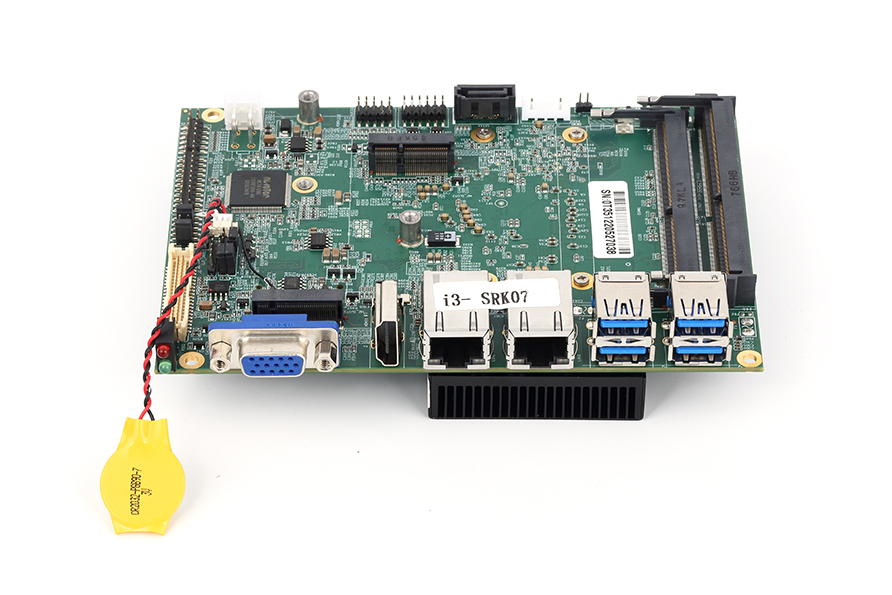

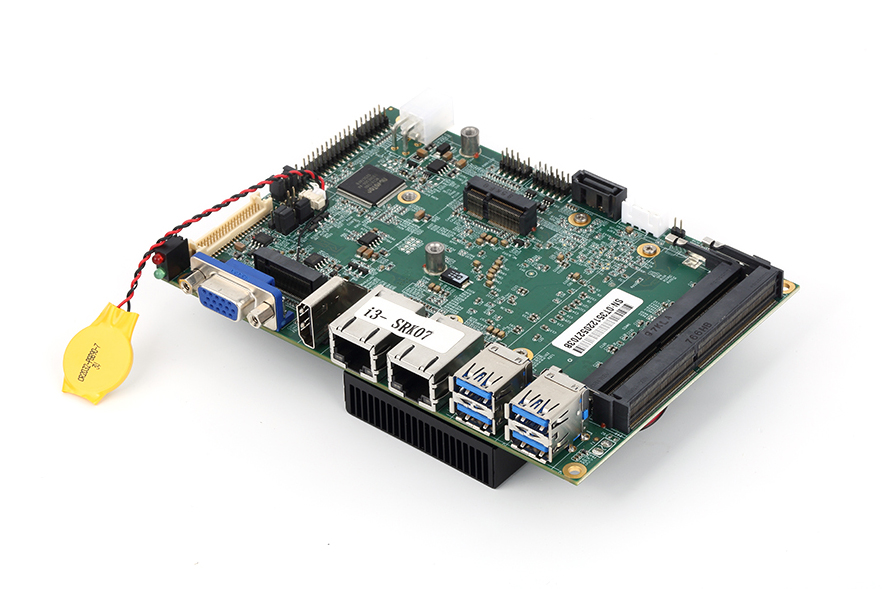

3.5-inch motherboard with onboard TIGER LAKE U -series processor
Intel Tiger Lake U -series processors
» Supports up to 32GB DDR4 SO-DIMM dual-channel memory, frequency 2133/2666/ 3200MHz
» Integrated Intel 12th Gen Xe LP Graphics Core
» Supports VGA, HDMI, LVDS ( 18/24- bit single or dual channel) or EDP
» Supports Intel 10/100/1000Mbit Ethernet, SATA, and NVMe SSDs
» Supports USB 2.0 and USB 3.0 , serial port, and GPIO interface
Input voltage: +12V~+19V , + 12V is recommended .
» Operating temperature: -20°C to + 60 °C (optional -40°C to 75 °C)
Technical Information
| Plate type | 3.5-inch motherboard |
| Processor | Intel Core™ i3-1115G4, 2C4T, up to 4.1 GHz Intel Core™ i3-1125G4, 4C8T, up to 3.7 GHz Intel Core™ i5-1135G7, 4C8T, up to 4.2 GHz Intel Core™ i5-1145G7, 4C8T, up to 4.4 GHz Intel Core™ i7-1165G7, 4C8T, up to 4.7 GHz Intel Celeron 6305, 2C2T, 1.8 GHz Intel Celeron 6305E, 2C2T, 1.8 GHz |
| Memory | Two dual-channel SO-DIMM DDR4 memory modules, maximum 32GB, frequency 2133/2666/3200MHz |
| Graphics processing | Supports one HDMI port with a maximum resolution of 3840x2160 @ 60Hz, and one VGA port with a maximum resolution of 1920x1080 @ 60Hz. Supports one 18/24-bit single-channel or dual-channel LVDS |
| Network card | Supports two Intel 10/100/1000Mbit Ethernet ports (Intel® I219V/LM and I211AT/I210AT) |
| SATA | Supports one SATA 3.0 interface and one M.2 SSD (M-Key 2280 SSD NVMe). |
| mPCIe | Supports one M.2 WIFI port (E-Key 2230 PCIe x1) Supports one M.2 4G/5G port (B-Key 3042/3052 USB2.0 & PCIe x1) |
| USB | Supports 4 front-panel USB 3.0/2.0 ports and 4 internal USB 2.0 ports. |
| Serial port | Supports 6 RS232 (3-wire) ports, with COM1 and COM2 selectable between RS232/422/485. |
| IO | Supports 8 GPIOs, 1 SIM card slot (expandable, optional), and 1 TPM socket. |
| Sound card | ALC662 High-Fidelity Sound Card (Line-in, Line-out, Mic-in) |
| Power supply | +12V~+19V, +12V is recommended. |
| Temperature | Operating temperature: -20°C to +60°C (optional: -40°C to +75°C) |
| Size | 146 mm x 102 mm |

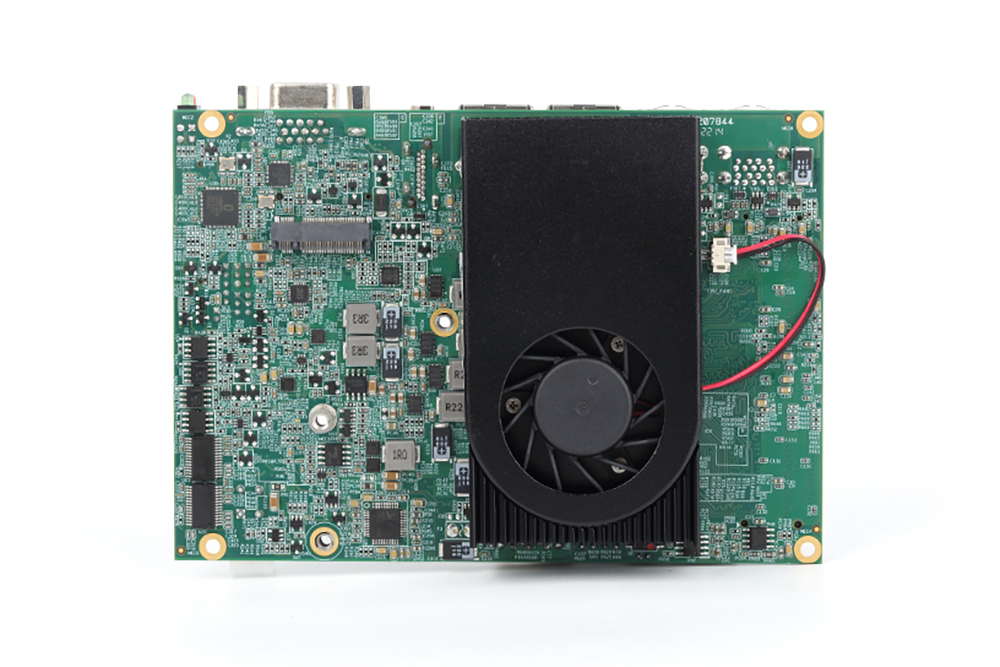

| Heat dissipation | Fan cooling |
| Operating system | Windows 10, Windows 11, Linux |
FAQ
Q1: What memory advantage separates PCM-T351 from single-slot embedded motherboards?
A: It carries dual DDR4 SO-DIMM slots for dual-channel memory, hitting a max 32GB capacity to process multi-stream camera data and heavy multitasks smoothly. The 11th Gen Tiger Lake-U Core i7/i5/i3 CPUs deliver faster graphic encoding than low-power Bay Trail/Elkhart Lake chips.
Q2: What flexible industrial IO and expansion slots does it feature?
A: It has 8 USB ports (4 external + 4 internal), six configurable RS232/422/485 serial ports, plus independent M.2 slots for NVMe SSD, Wi-Fi and 4G/5G cellular modules with a SIM holder. A TPM socket is reserved for data encryption.
Q3: Power and thermal specifications?
A: It adopts 12–19V narrow DC input and active fan cooling to sustain high CPU boost frequencies. Standard temperature range is -20℃~+60℃, with rugged -40℃~+75℃ wide temp version available.
Q4: Brand and target application scenarios?
A: Designed and manufactured by Shenzhen YDSTECH. Optimized for high-performance self-service kiosks, multi-screen industrial monitoring, high-frame-rate machine vision and edge gateways requiring powerful real-time computing.
