Industrial X86 DDR4 Embedded Motherboard with Wide Temperature Support
description1

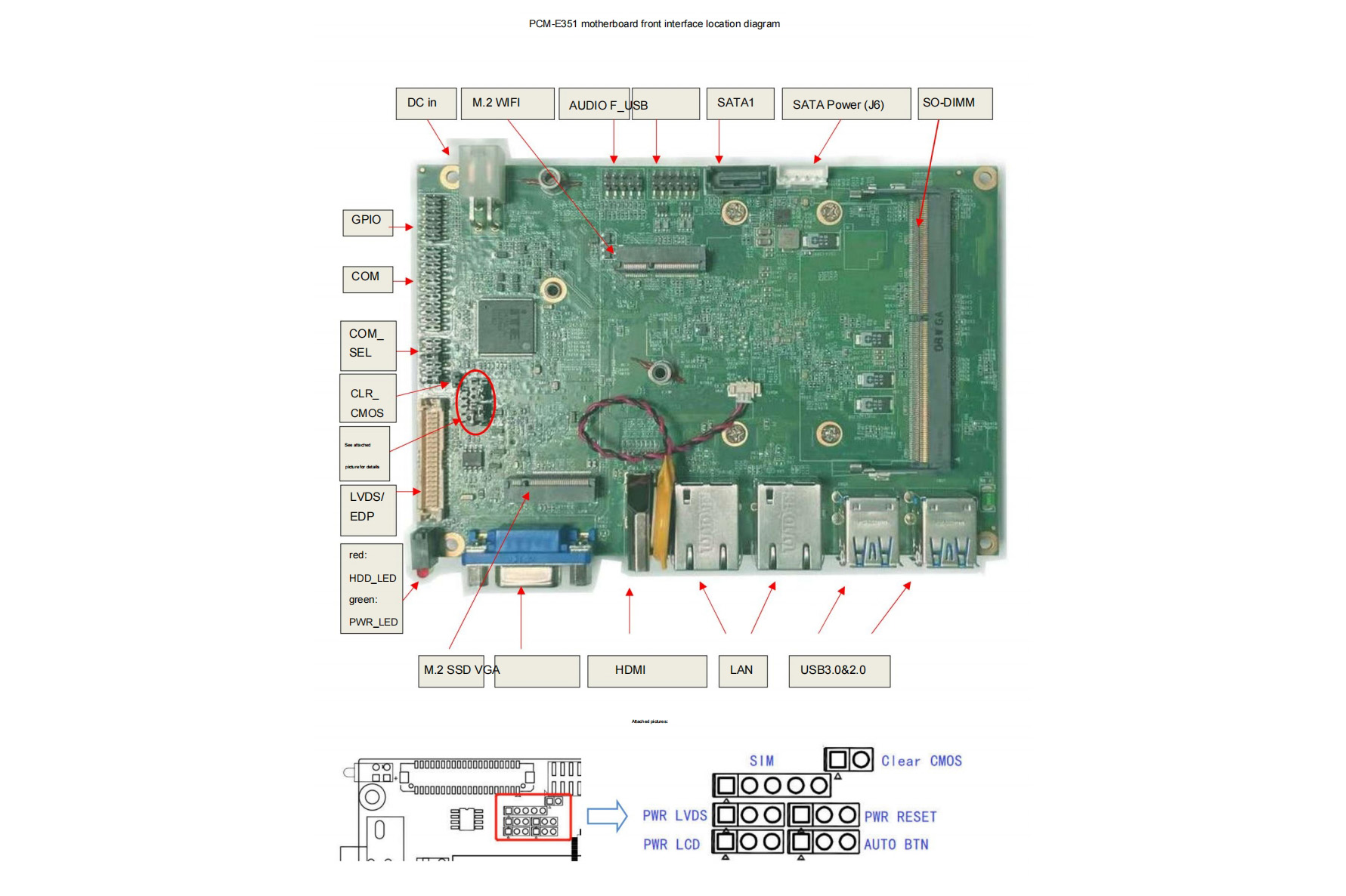

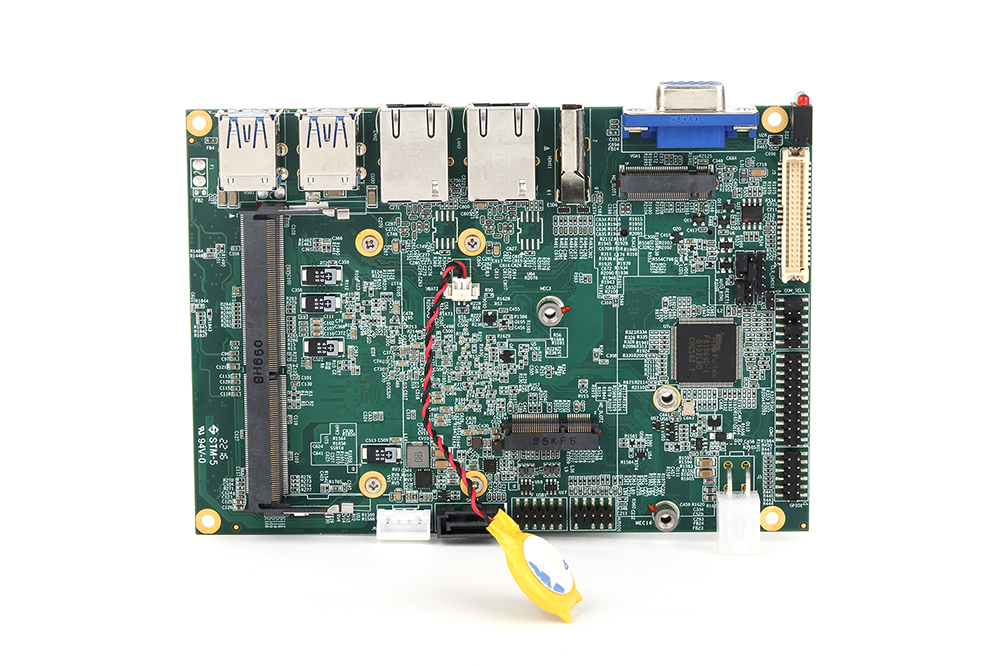

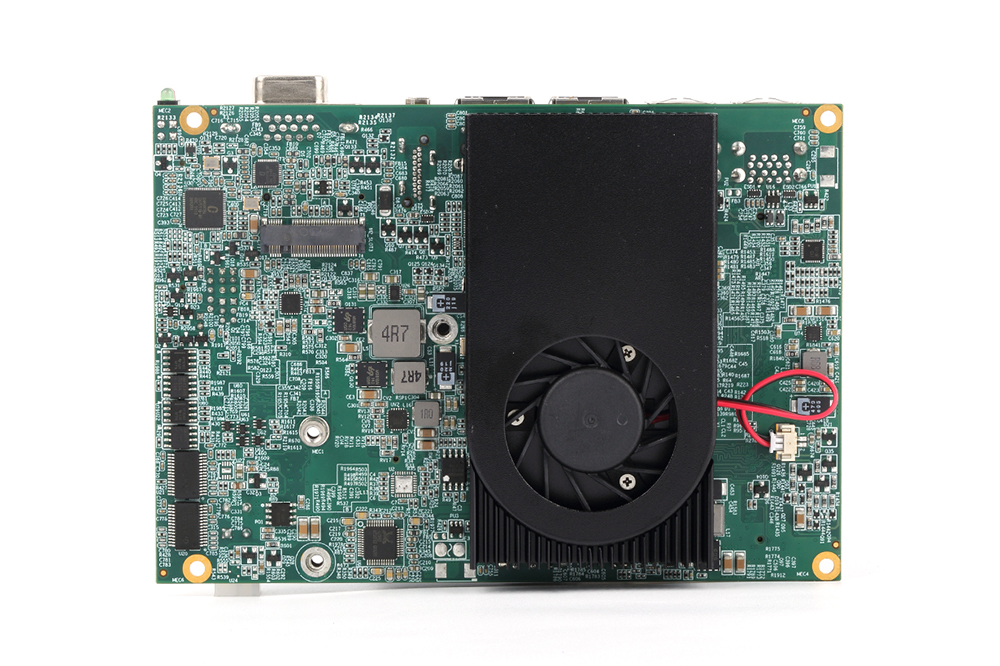

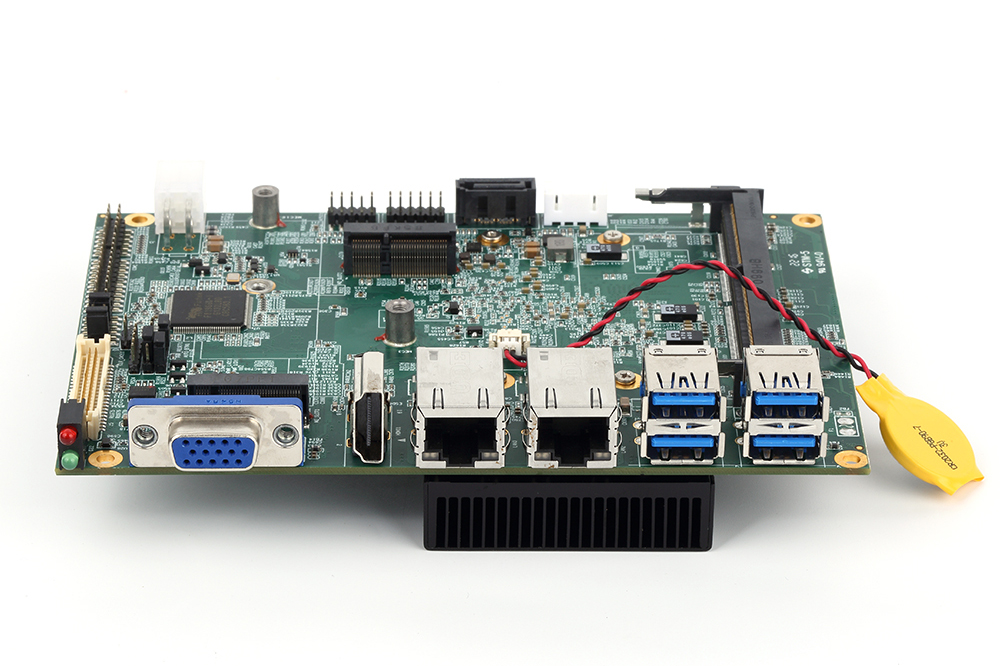

Product Introduction
3.5-inch motherboard with onboard Intel® Elkhart Lake ™ Series SOC
» Intel® Elkhart Lake series SoCs, power consumption: 6.5~12W
» SO-DIMM DDR4 memory (1.2V, supports up to 16GB ) with a maximum frequency of 3200MHz .
» Intel's 11th generation graphics core supports DX12, MPEG2, H.264, JPEG/MJPEG, and H.265 (HEVC).
» Supports eDP 1.3 , HDMI 1.4, VGA, and LVDS ( 18/24- bit single-channel or dual-channel).
» Supports 10/100/1000Mbit Ethernet , SATA, and NVMe SSDs.
» USB 2.0 and USB 3.0 interfaces , RS232/422/485 serial port, GPIO interface.
» Voltage: + 12V ~+ 24V , + 12V is recommended .
» Operating temperature: -20°C ~ + 60 °C (optional -40 ° C ~) +75°C
Technical Information
| Plate type | 3.5-inch motherboard |
| Processor | Intel® Elkhart Lake series SOCs support: Intel® Celeron® N6210 Dual core 1.2 GHz up to 2.6 GHz, 6.5 W Intel® Celeron® N6211 Dual core 1.2 GHz up to 3.0 GHz, 6.5 W Intel® Celeron® J6412 Quad-core 2.0 GHz up to 2.6 GHz, 10 W Intel® Celeron® J6413 Quad-core 1.8 GHz up to 3.0 GHz, 10 W Intel® Celeron® N6415 Quad-core 1.2 GHz up to 3.0 GHz, 6.5 W Intel® Celeron® J6426 Quad-core 2.0 GHz up to 3.0 GHz, 10 W Intel® Atom® X6200FE Dual-Core 1.0 GHz, 4.5 W Intel® Atom® X6212RE Dual-core 1.2 GHz, 6 W Intel® Atom® X6414RE Quad-core 1.5 GHz, 9 W Intel® Atom® X6427FE Quad-core 1.9 GHz, 12 W Intel® Atom® X6425RE Quad-core 1.9 GHz, 12 W Intel® Atom® X6211E dual core 1.3 GHz up to 3.0 GHz, 6 W Intel® Atom® X6413E Quad-core 1.5 GHz up to 3.0 GHz, 9 W Intel® Atom® X6425E Quad-core 2.0 GHz up to 3.0 GHz, 12 W |
| Memory | SO-DIMM DDR4 memory (1.2V, supports up to 16GB) with a maximum frequency of 3200MHz. |
| Graphics processing | Three independent display outputs support eDP (maximum resolution 1920x1080) or LVDS (maximum resolution 1920x1080), HDMI 1.4 (maximum resolution 1920x1080), and VGA (maximum resolution 1920x1080). |
| Network card | Supports two RTL8111H 10/100/1000 Mb/s Ethernet ports |
| Storage | 1 M.2 SSD (M-Key 2280 PCIe x1 or SATA) 1 M.2 WiFi (E-Key 2230 PCIe x1) 1 M.2 4G/5G (B-Key 3042 USB2.0 & PCIe x1) 1 SATA 3.0 |
| USB | Supports 4 USB 2.0 ports and 4 USB 3.0 / 2.0 ports. |
| Serial port | Supports 6 RS232 (3-wire) ports, with COM1 and COM2 selectable between RS232/422/485. |
| IO | 8 GPIO ports, 1 SIM card slot (optional) |
| Sound card | ALC662 High-Fidelity Sound Card (Line-in, Line-out, Mic-in) |
| Power supply | +12V to +24V voltage, +12V is recommended. |
| Temperature | Operating temperature: -20°C to +60°C (optional: -40°C to +75°C) |
| Size | 146 mm x 102 mm |
| Heat dissipation | Fanless design |
| Operating system | Windows 10, Windows 11, Linux |
FAQ
Q1: What performance edge does Elkhart Lake CPU bring to PCM-E351 versus older Bay Trail/Apollo Lake boards?
A: Its onboard Atom x6000E/Celeron J64xx Elkhart Lake SoC delivers 1.5x faster multi-thread processing and doubled graphic decoding capacity, with 4.5W–12W adjustable low TDP for energy-saving IoT deployment.
Q2: What integrated expansion layout makes it flexible for wireless upgrades?
A: Three separate M.2 slots independently hold NVMe SSD, Wi-Fi and 4G/5G modules, plus one SATA 3.0 port for extra storage. It carries 8 USB ports evenly split between USB3.0 and USB2.0 for vision cameras and sensors.
Q3: Display and temperature advantages?
A: It supports triple asynchronous 1080P screens via HDMI, VGA and LVDS/eDP. Standard -20℃~+60℃ operation, with optional -40℃~+75°C wide temp rating for outdoor monitoring hardware.
Q4: Brand and suitable scenarios?
A: Manufactured by Shenzhen YDSTECH, fully fanless without daily maintenance. Optimized for edge gateways, multi-screen digital signage and light machine vision that balance power efficiency and media performance.
