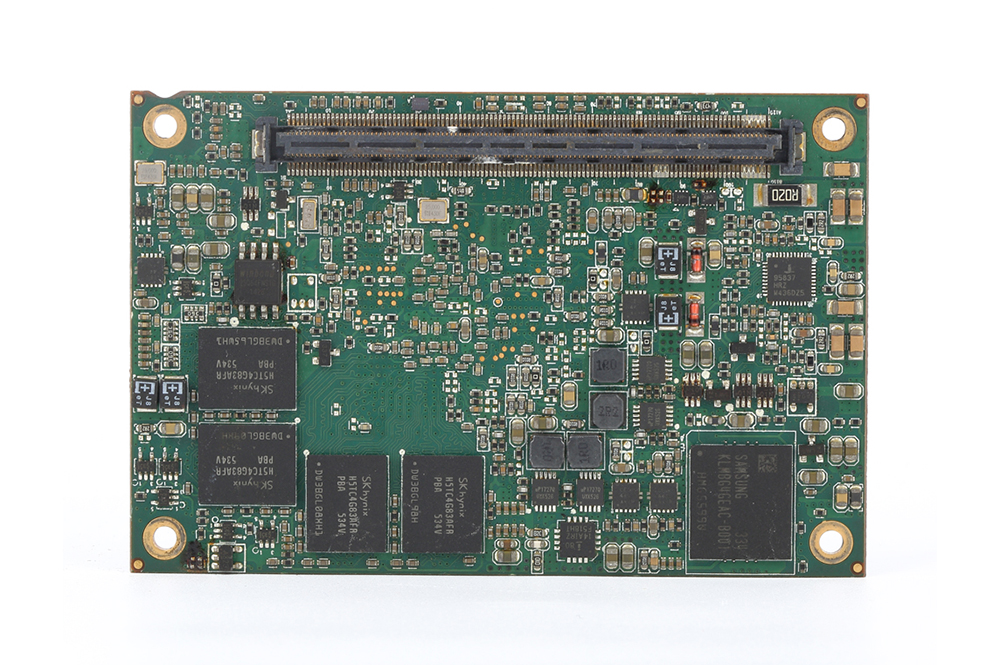

COM-BT10 1 industrial motherboard CPU Core Board Embedded Motherboard.jpg

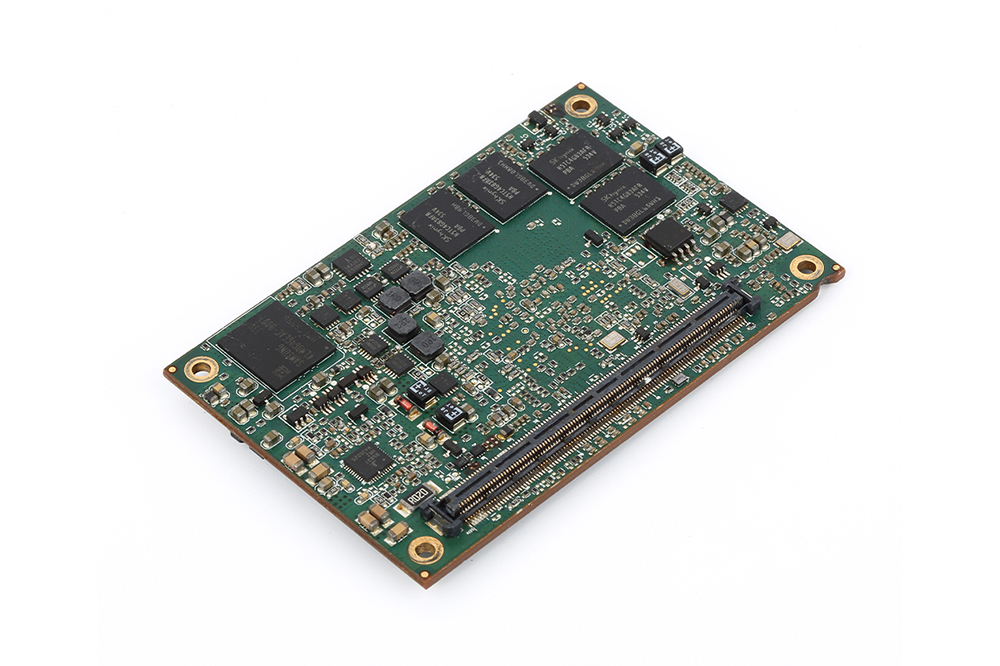

COM-BT10 2 industrial motherboard CPU Core Board Embedded pc Motherboard.jpg

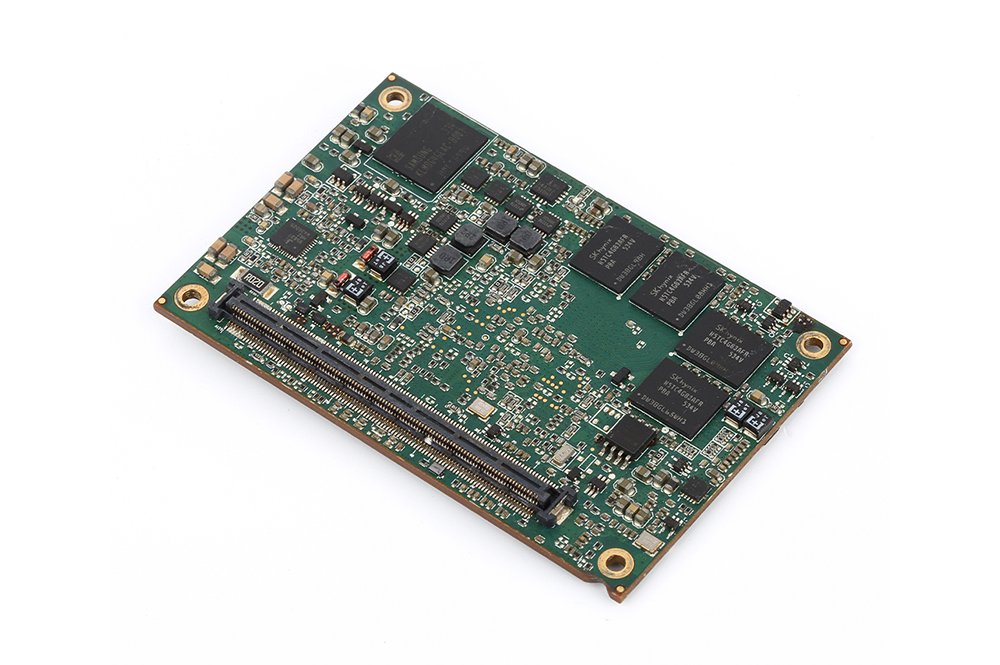

COM-BT10 3 industrial motherboard CPU Core Board Embedded Mainboard.jpg

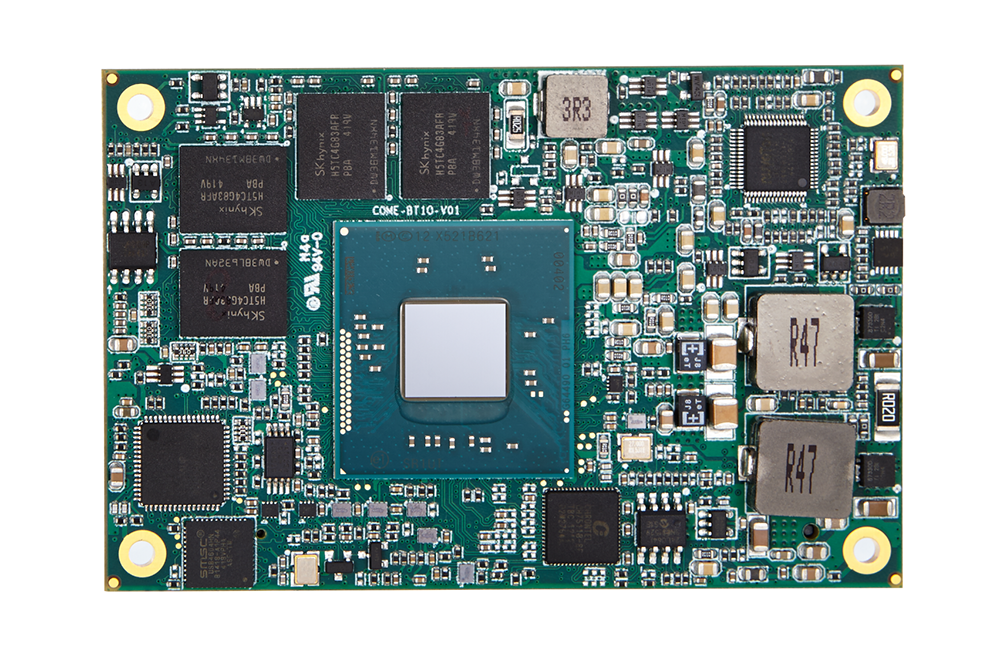

COME-BT10 industrial grade motherboard CPU Core Board Embedded Mainboard.png

Industrial Mini COM Express Type10 x86 Embedded Board with Bay Trail CPU, Up to 8GB DDR3L & Wide Temp Support

The COME-BT10 is a compact COM Express mini Type 10 x86 embedded module built on Intel Bay Trail SoC. It supports Intel Atom E3800 & Celeron low-power CPUs, equipped with 4GB/8GB DDR3L memory and optional 4–128GB onboard eMMC. Featuring Gen7 integrated graphics, rich I/O including USB, SATA, PCIe and serial ports, it runs Windows and Linux stably. Its standout advantage is wide-temperature design: standard version works from -20°C to +65°C, while the industrial wide-temp variant operates reliably at -40°C to +85°C. Ideal for industrial control, vehicle terminals and outdoor embedded devices requiring stable extreme-temperature performance.

    Contact us Download
    product details

    description1

    Product Introduction

    COM Express® mini Type 10 with Intel® Atom™ E3800 & Celeron® Series

    »Intel® Atom™ E3800 & Celeron® Series

    » 4GB DDR3L memory

    »High resolution Intel® Gen. 7 graphics

    »Up to 8x USB 2.0, 1x USB 3.0, eMMC Flash, 2x SATA, SD-Card

    »Temperature operating from -25°C to +75°C

    »Temperature operating from -40°C to +85°C (optional)

    Technical Information

    Compliance COM Express® mini, Pin-out Type 10
    CPU Intel® Atom™ E3845, Intel® Atom™ E3827, Intel® Atom™ E3826, Intel® Atom™ E3825, Intel® Atom™ E3815,
    Intel® Celeron® J1900, Intel® Celeron® N2920, Intel® Celeron® N2930, Intel® Celeron® N2807
    Memory 4GB DDR3L-1333 memory
    Graphics Controller Intel® HD Graphics (Gen7)
    Ethernet Intel® I210IT Gigabit Ethernet
    Hard Disk 2x SATA 3Gb/s
    Flash Onboard 4-128GB eMMC
    PCI Express® / PCI support 3x PCIe x1
    Panel signal DDI: DP++, LVDS: Single Channel 18/24bit or eDP
    USB 1x USB 3.0 (incl. USB 2.0), 3x USB 2.0 from CPU, 4x USB 2.0 from HSIC Hub
    Serial 2x serial interface (RX/TX only)
    Audio Intel® High Definition Audio
    Common Features SPI, LPC, SMB, Fast I²C, Staged Watchdog, RTC
    Options 1x PCIe x1 additional w/o onboard LAN, eMMC Flash onboard (4-128GB), eDP instead of LVDS
    Power Supply 12V, Single Supply Power
    Special Features GPIO/SDIO Switch, General Purpose SPI optional
    Operating System Windows® 7, Windows® 10, Linux
    Temperature Operating: -20°C to +75°C, -40°C to +85°C
    Dimensions (H x W x D) 84 mm x 55 mm

    Ordering Information

    Article Description
    COME-BT10-A10-XY Operating: -20°C to +65°C, 4GB DDR3L-1333 memory
    COME-BT10-A11-XY Operating: -20°C to +65°C, 4GB DDR3L-1333 memory
    COME-BT10W-A10-XY Operating: -40°C to +85°C, 8GB DDR3L-1333 memory
    COME-BT10W-A11-XY Operating: -40°C to +85°C, 8GB DDR3L-1333 memory
    Note:
    X (CPU): E3845, E3827, E3826, E3825, E3815, J1900, N2920, N2930, N2807
    Y (eMMC): 4G, 8G, 16G, 32G, 64G, 128G
