Industrial-Grade X86 3.5 Inch Motherboard, Wide Temperature -40℃~+75℃
description1
Product Introduction

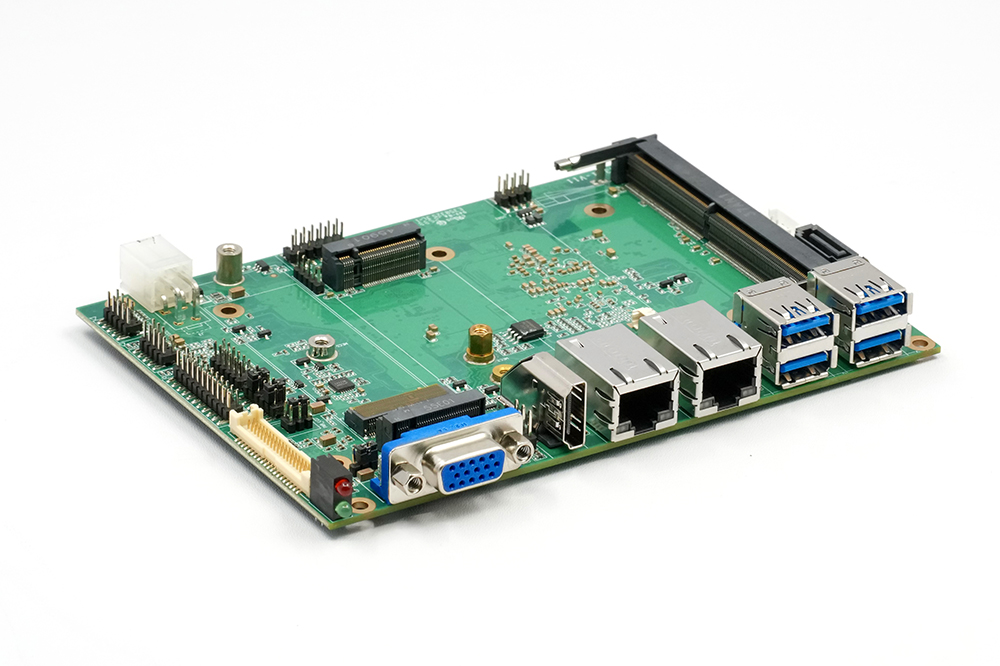

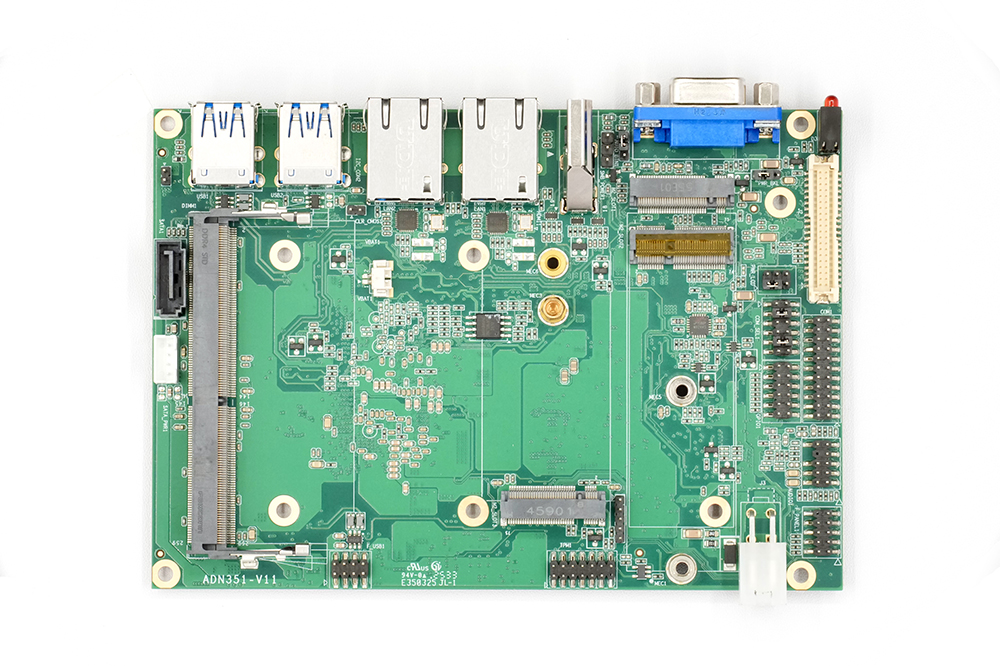

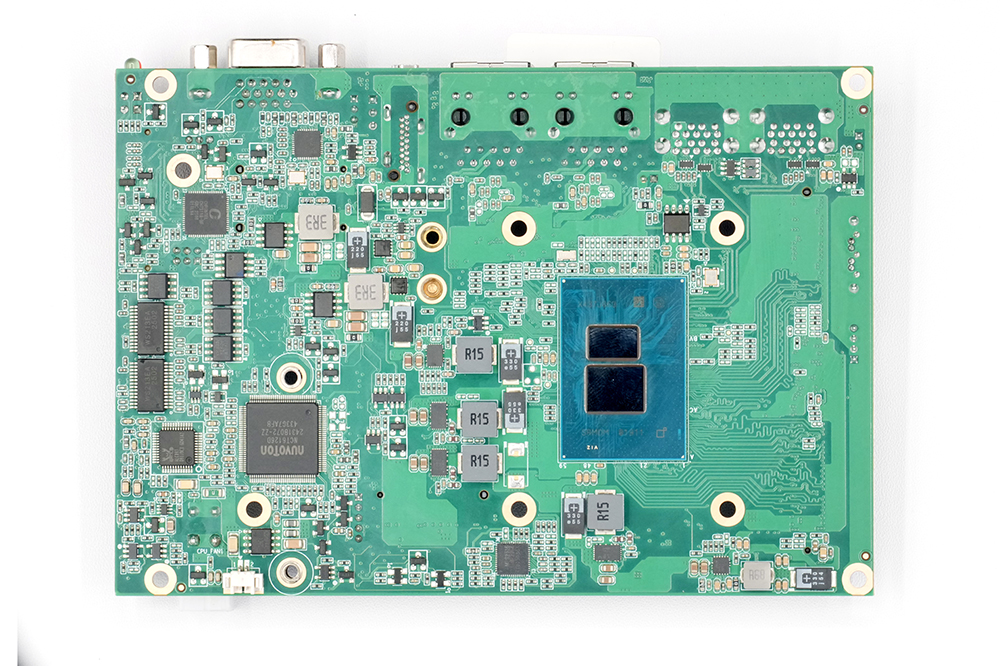

3.5-inch motherboard, with onboard Alder Lake-N/Twin Lake/Amston Lake series processors.
Intel Alder Lake-N /Twin Lake/Amston Lake series processors
» Supports up to 32GB DDR4 SO-DIMM memory, frequency 2133/2666/ 3200MHz
» Integrated Intel 12th Gen Xe LP Graphics Core
» Supports VGA, HDMI, LVDS ( 18/24- bit single or dual channel) or EDP
» Supports dual Gigabit 10/100/1000Mbit Ethernet, SATA, NVMe SSD
» Supports USB 2.0 and USB 3.0 , serial port, GPIO interface, TPM
Input voltage: +12V~+19V , + 12V is recommended .
» Operating temperature: -20 °C to + 60 °C (optional -40°C to + 75 °C )
Technical Information
| Plate type | 3.5-inch motherboard |
| Processor | Supports Intel Alder Lake-N / Twin Lake / Amston Lake series, including: Intel N95, 4C4T, up to 3.4 GHz, 16 EU iGPU, TDP: 15W Intel N97, 4C4T, up to 3.6 GHz, 24 EU iGPU, TDP: 12W Intel N100, 4C4T, up to 3.4 GHz, 24 EU iGPU, TDP: 6W Intel N200, 4C4T, up to 3.7 GHz, 32 EU iGPU, TDP: 6W Intel Core i3 N300, 8C8T, up to 3.8 GHz, 32 EU iGPU, TDP: 7W Intel Core i3 N305, 8C8T, up to 3.8 GHz, 32 EU iGPU, TDP: 15W Intel Atom X7425E, 4C4T, up to 3.4 GHz, 24 EU iGPU, TDP: 12W Intel N150, 4C4T, up to 3.6 GHz, 24 EU iGPU, TDP: 6W Intel N250, 4C4T, up to 3.8 GHz, 32 EU iGPU, TDP: 6W Intel Core i3 N350, 8C8T, up to 3.9 GHz, 32 EU iGPU, TDP: 7W Intel Core i3 N355, 8C8T, up to 3.9 GHz, 32 EU iGPU, TDP: 15W Intel Atom X7211RE, 2C2T, up to 3.2 GHz, 16 EU iGPU, TDP: 6W Intel Atom X7213RE, 2C2T, up to 3.4 GHz, 16 EU iGPU, TDP: 9W Intel Atom X7433RE, 4C4T, up to 3.4 GHz, 32 EU iGPU, TDP: 9W Intel Atom X7835RE, 8C8T, up to 3.6 GHz, 32 EU iGPU, TDP: 12W |
| Memory | Supports one SO-DIMM DDR4 memory module, up to 32GB, with frequencies of 2133/2666/3200MHz. |
| Graphics processing | Supports one HDMI port with a maximum resolution of 3840x2160 @ 60Hz, and one VGA port with a maximum resolution of 1920x1080 @ 60Hz. Supports one 18/24-bit single-channel or dual-channel LVDS, with a maximum resolution of 1920x1080 @ 60Hz, or EDP. |
| Network card | Supports two 10/100/1000 Mbit Ethernet ports (RTL8111H) |
| Storage | Supports one SATA 3.0 interface and one M.2 SSD (M-Key 2280 SSD NVMe/NGFF). |
| mPCIe | Supports one M.2 WIFI port (E-Key 2230 PCIe x1 & USB 2.0) Supports one M.2 4G/5G port (B-Key 3042/3052 USB2.0) |
| USB | Supports 4 front-panel USB 3.0/2.0 ports and 2 internal USB 2.0 ports. |
| Serial port | Supports 6 RS232 (3-wire) ports, with COM1 and COM2 selectable between RS232/422/485. |
| IO | Supports 8 GPIOs, 1 SIM card slot (expandable, optional), and 1 TPM socket. |
| Sound card | ALC662/ALC897 High-Fidelity Sound Card (Line-in, Line-out, Mic-in) |
| Power supply | +12V~+19V, +12V is recommended. |
| Temperature | Operating temperature: -20°C to +60°C (optional: -40°C to +75°C) |
| Size | 146 mm x 102 mm |
| Heat dissipation | Fan cooling |
| Operating system | Windows 10, Windows 11, Linux |
FAQ
Q1: What core hardware upgrades does PCM-ADN351 carry compared with older 3.5-inch boards?
A: It runs Alder Lake-N/Twin Lake high-efficiency CPUs and upgrades memory to DDR4 SO-DIMM, supporting maximum 32GB at 3200MHz, perfect for AI vision and heavy edge data processing.
Q2: What exclusive expansion features does it provide?
A: Three dedicated M.2 slots serve NVMe SSD, Wi-Fi and 4G/5G modules separately. A reserved TPM socket adds hardware encryption to secure industrial confidential data.
Q3: What’s special about its display and cooling structure?
A: Its HDMI port supports 4K@60Hz output for high-definition monitoring. Different from fanless models, it uses fan cooling to handle high TDP processors for complex computing tasks.
Q4: Temperature range and application scenarios?
A: Standard -20℃~+60℃, optional -40℃~+75°C wide temp version. Made by Shenzhen YDSTECH, it supports Win10/11 and Linux, suited for machine vision, smart grid and high-load edge computing equipment.
