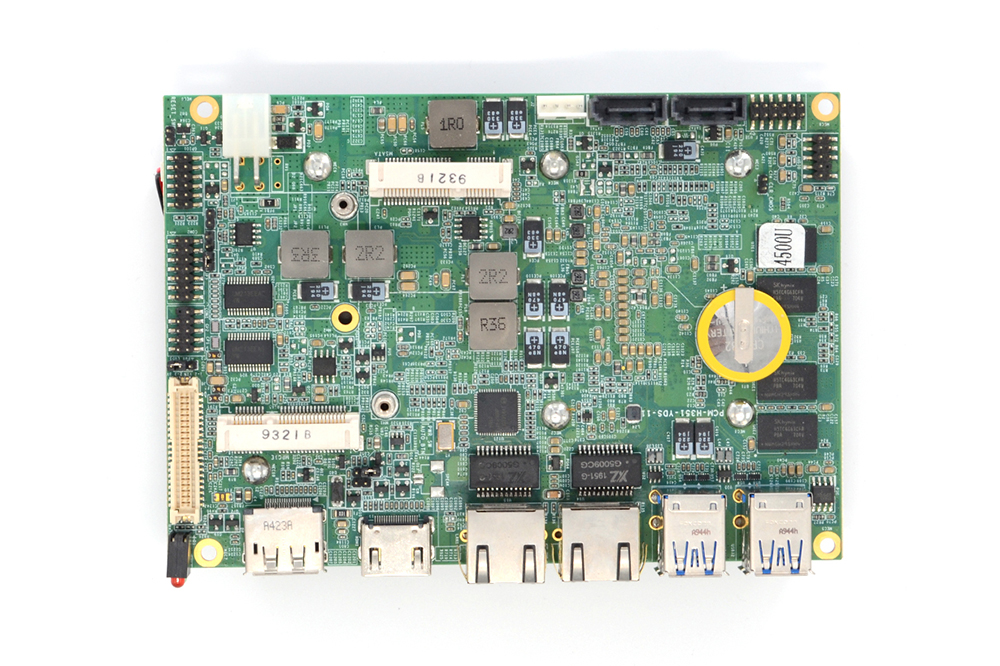

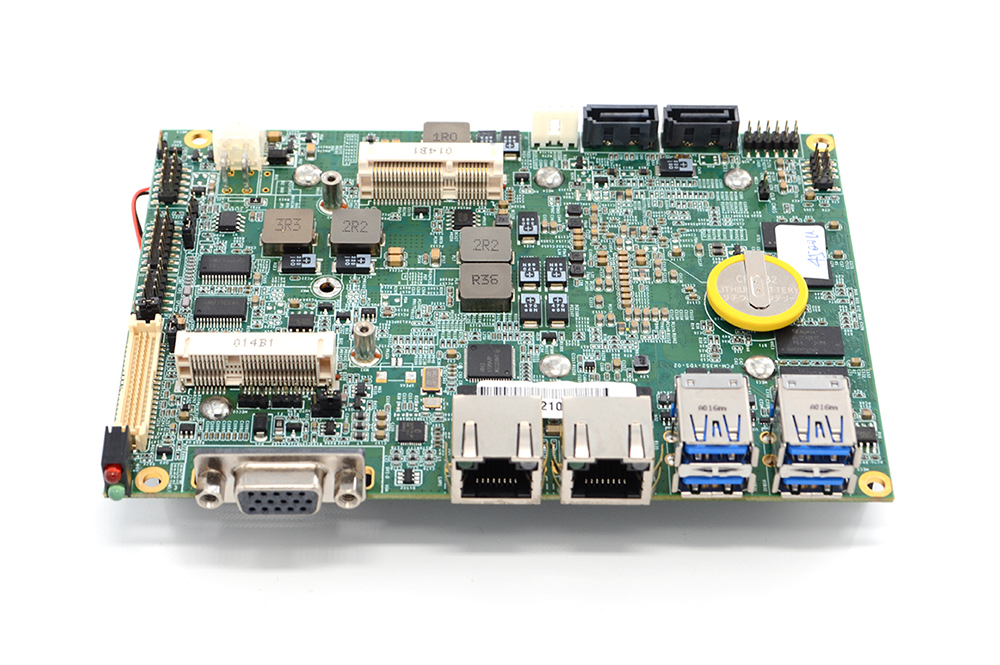

Industrial Grade 3.5 Inch Motherboard Wide Temp Tolerance
description1
Product Introduction
3.5-inch motherboard with onboard Intel® Haswell U - series processor
» Intel® Haswell U -series processor ( dual - core ) , TDP: 15W
» Onboard 4GB DDR3L memory ( 1.35V ) , maximum frequency 1600MHz
» Integrates Intel 7.5th generation graphics core , supporting OpenGL 4.0, OpenCL 1.2, DX11.1, H.264, MPEG2, VC-1)
» Supports DP1.2, HDMI1.4b ( maximum data rate 1.65Gb / s) , LVDS ( 18/24- bit single-channel or dual-channel)
» Supports Intel 10/100/1000Mbit Ethernet (i5 , i7 (supports AMT9.5) ) , SATA, mSATA and mPCIe
» Supports USB 2.0 and USB 3.0 , serial port, and GPIO interface
» DC power connector with locking mechanism ( Input voltage: +12V~+19V , + 12V recommended )
Operating temperature : -20°C to + 60 °C
» Operating temperature : -40°C to + 75 °C (optional )
Technical Information
| Plate type | 3.5-inch motherboard |
| Processor | Fourth generation Intel 22nm dual-core Celeron, i3, i5, i7 Support: Intel® Core™ Celeron-2980U 1.6GHz 15W Intel® Core™ i3-4010U 1.7GHz 15W Intel® Core™ i5-4200U 1.6GHz 15W Intel® Core™ i5-4210U 1.7GHz 15W Intel® Core™ i5-4300U 1.9GHz 15W Intel® Core™ i7-4510U 2.0GHz 15W Intel® Core™ i7-4650U 1.7GHz 15W Intel® Core™ i3-5010U 2.1GHz 15W Intel® Core™ i5-5200U 2.2GHz 15W Intel® Core™ i7-5500U 2.4GHz 15W |
| Memory | Onboard 4GB DDR3L memory (1.35V), maximum frequency 1600MHz |
| Graphics processing | Supports one DisplayPort with a maximum resolution of 3200x2000 @60Hz Supports one HDMI port with a maximum resolution of 1920x1080 @60Hz and a maximum data rate of 1.65Gbps. Supports one 18/24-bit single-channel or dual-channel LVDS |
| Network card | Supports 2 Intel processors 10/100/1000Mbit Ethernet, supports AMT9.5 (Intel® Clarkville i218LM and i5, i7) |
| SATA | Two SATA 1.0/2.0/3.0 standard interfaces, supporting RAID 0, 1, and 5. Supports 1 mSATA |
| mPCIe | Supports 1 mPCIe |
| USB | Supports 4 USB 3.0/2.0 ports (front panel) Supports 4 USB 2.0 ports (3 built-in, 1 mPCIe port occupied). |
| Serial port | 2 RS232 (5-wire), 3 RS232 (3-wire), 1 RS232 (3-wire), or RS422 or RS485 optional |
| IO | Supports 8 GPIOs (front-end). |
| Sound card | ALC662 High-Fidelity Sound Card (Line-in, Line-out, Mic-in) |
| Power supply | +12V~+19V, +12V is recommended. |
| Temperature | Operating temperature: -20°C to +60°C (-40°C to +75°C optional) |
| Size | 146 mm x 101.6 mm |

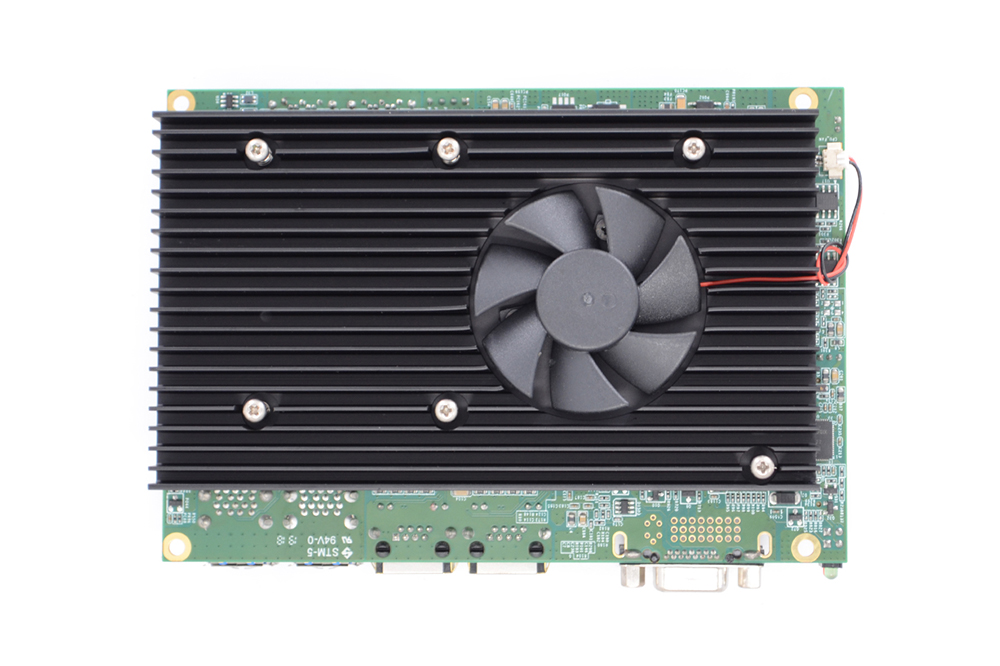

| Heat dissipation | Fanless design (fan optional) |
| Operating system | Win7, Win8, WES7, WES8, Linux, VxWorks |
Ordering Information
| Model | Describe |
| PCM-H351-A10-X | Display: 1x HDMI, 1x DP, 1x 18-bit single-channel LVDS |
| PCM-H351-A11-X | Display: 1x HDMI, 1x DP, 1x 24-bit dual-channel LVDS |
| PCM-H351W-A10-X | Display: 1x HDMI, 1x DP, 1x 18-bit single-channel LVDS Temperature: -40°C to +80°C |
| PCM-H351W-A11-X | Display: 1x HDMI, 1x DP, 1x 24-bit dual-channel LVDS Temperature: -40°C to +80°C |
| Annotation: X represents the CPU model, including: 2980U, 4010U, 4200U, 4210U, 4300U, 4510U, 4650U, 5010U, 5200U, and 5500U. | |
FAQ
Q1: What CPU and memory layout makes PCM-H351 different from new-gen embedded boards?
A: It adopts 4th/5th Gen Haswell/Broadwell dual-core U-series CPUs with fixed onboard 4GB DDR3L memory, eliminating memory slot faults for long-running legacy industrial equipment. It supports Core i7/i5/i3 and Celeron options with stable 15W TDP.
Q2: What unique display and storage features does it carry?
A: It equips DP, HDMI and LVDS triple asynchronous displays, with DP supporting up to 3200×2000 resolution. Dual SATA plus mSATA slots enable RAID storage, rarely seen on compact 3.5-inch legacy boards.
Q3: What OS compatibility and temperature advantages does it offer?
A: It fully supports legacy OS including Win7, WES7 and real-time VxWorks for outdated industrial control software. The wide temp variant PCM-H351W withstands -40℃~+80℃, the highest heat resistance among our low-power fanless lines.
Q4: Brand and target usage?
A: Manufactured by Shenzhen YDSTECH with lock-type 12–19V power port. It mainly serves legacy equipment upgrades, CNC controllers and real-time monitoring devices requiring old system compatibility.
