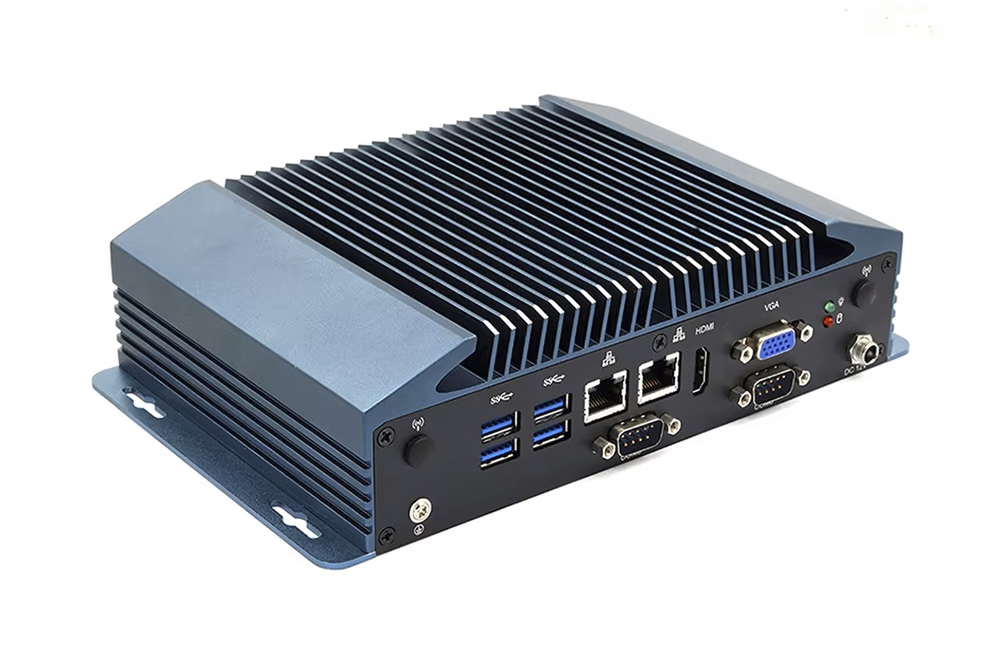

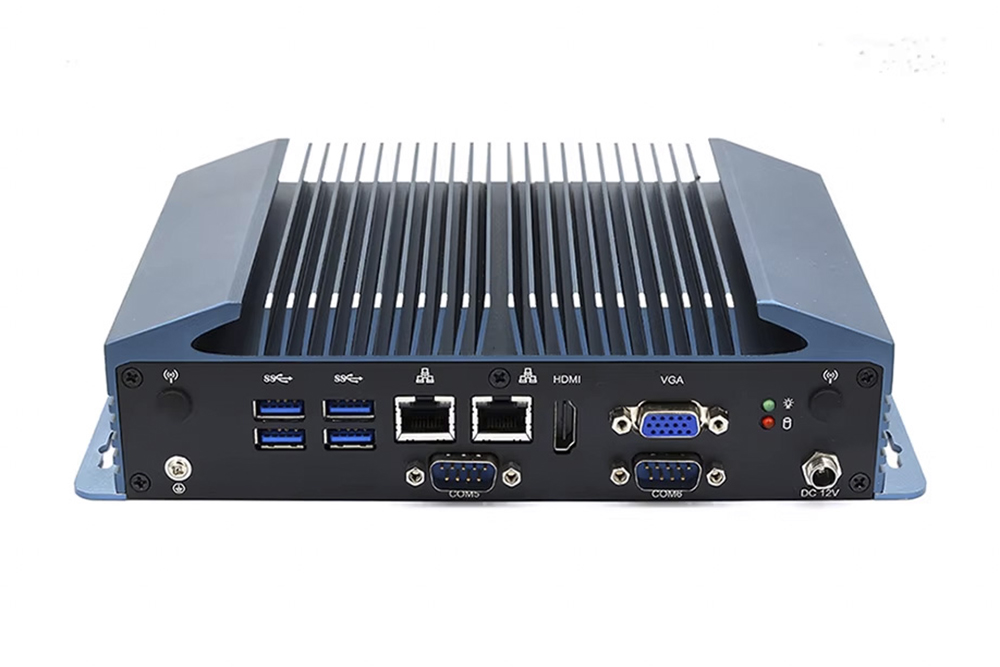

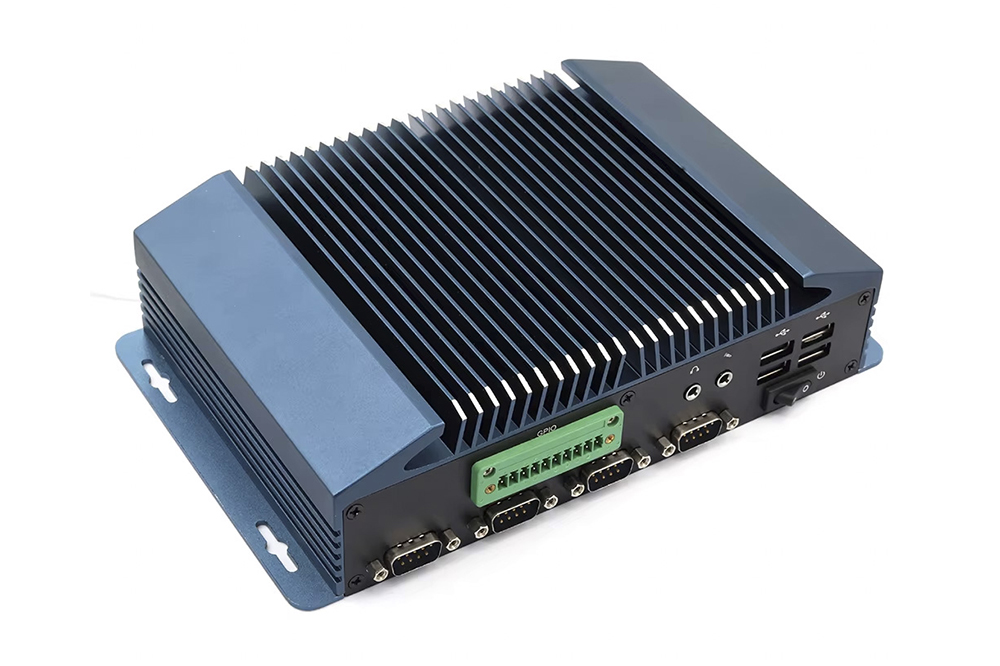

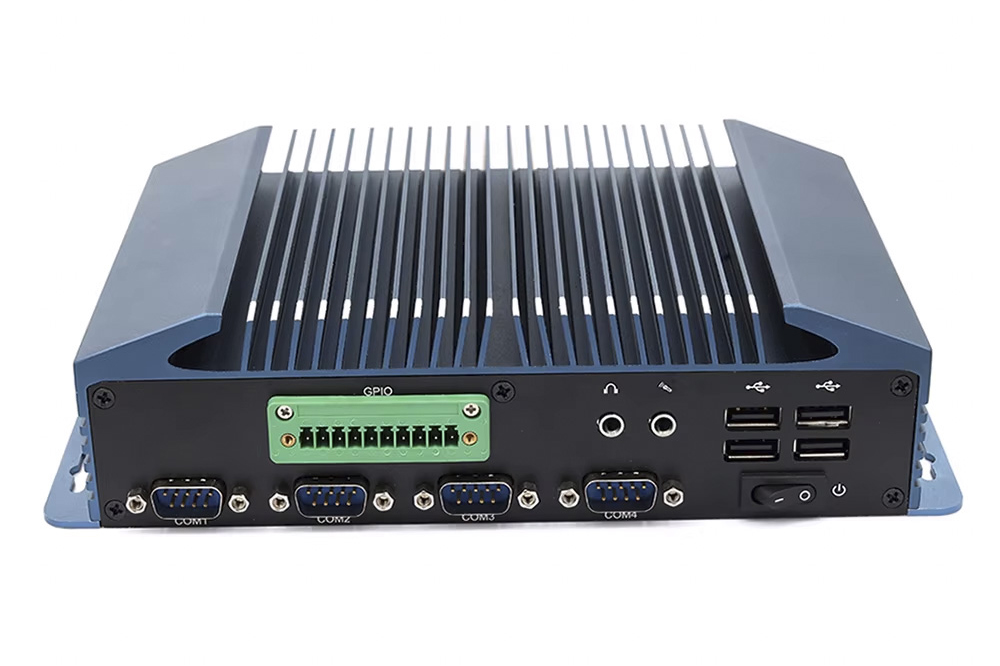

Fanless X86 Mini Industrial PC 6/7 Gen Core CPU Wide Temperature Rich Serial USB Dual Display DDR4 RAM
description1
Technical Information
| Processor | Intel® Core™ i3-6100U 2.3GHz 15W Intel® Core™ i5-6200U 2.3GHz 15W Intel® Core™ i7-6500U 2.5GHz 15W Intel® Core™ i3-7020U 2.3GHz 15W Intel® Core™ i3-7100U 2.4GHz 15W Intel® Core™ i5-7200U 2.5GHz 15W Intel® Core™ i7-7500U 2.7GHz 15W |
| Memory | Onboard 4GB/8GB/16GB DDR4 memory (1.2V), frequency 1333/1600/1866/2133MHz |
| Graphics processing | Supports one VGA port with a maximum resolution of 1920x1080 @ 60Hz Supports one HDMI port with a maximum resolution of 1920x1080 @ 60Hz. |
| Network card | Supports two Intel 10/100/1000Mbit Ethernet ports (Intel I219V and I211AT/I210AT). |
| Storage | 1 mSATA, 2 SATA 3.0, 1 MPCIE |
| USB | Supports 4 USB 3.0 ports and 4 USB 2.0 ports. |
| Serial port | 4 RS232 (3-wire), 2 RS232 (3-wire) / RS422 / RS485 |
| IO | Supports 8 GPIOs and 1 SIM card slot (expandable, optional). |
| Sound card | ALC662 High-Fidelity Sound Card (Line-Out, MIC-in) |
| Power supply | +12V to +24V voltage, +12V is recommended. Power on (default), trigger power on (optional). |
| Adapter | 60W or above |
| Temperature | Operating temperature: -20°C to +60°C (optional: -40°C to +75°C) |
| Size | 205 mm (length) x 140 mm (width) x 55 mm (height) (Overall dimensions excluding wall mount and external interface) |
| Heat dissipation | Fanless design |
| Operating system | Win7, Win10, Win11, Linux |
| Weight | 1.46 kg (bare machine), 2.55 kg (including packaging) |
| Color | The entire unit is blue, with black front and rear panels. |
