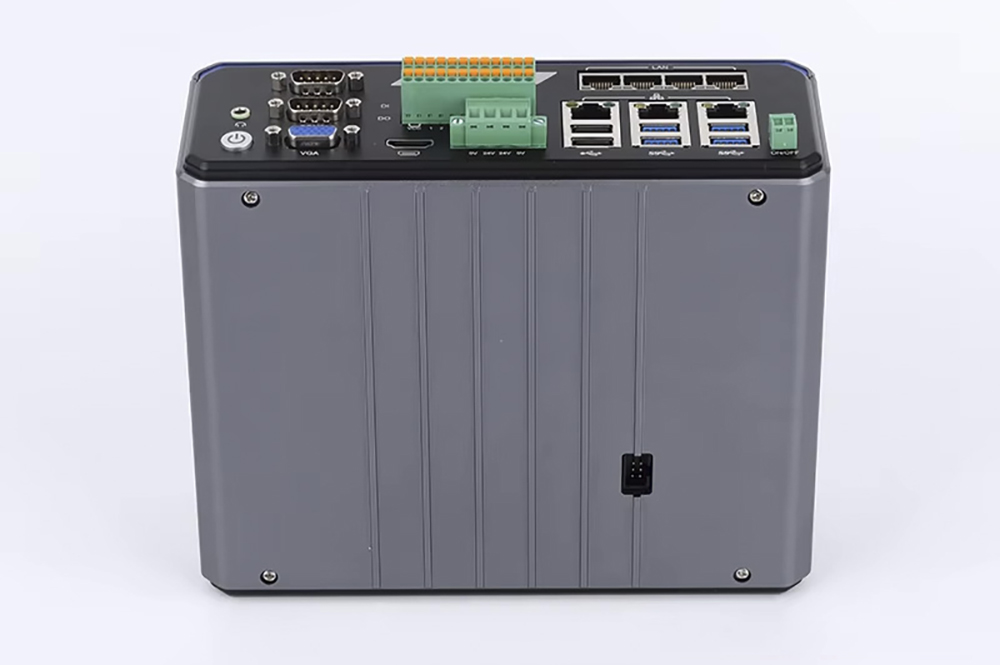

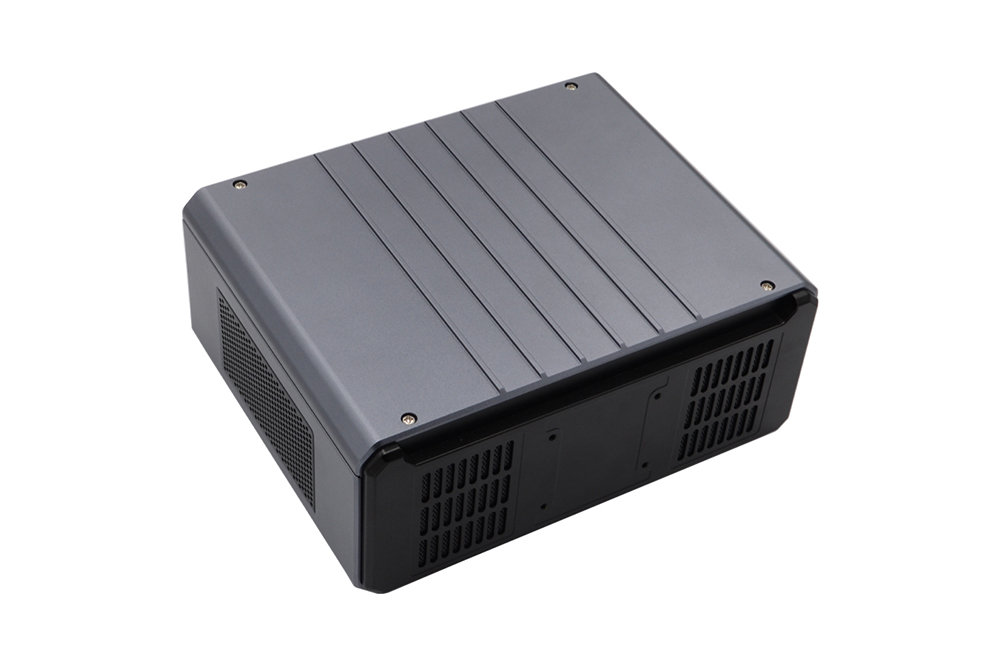

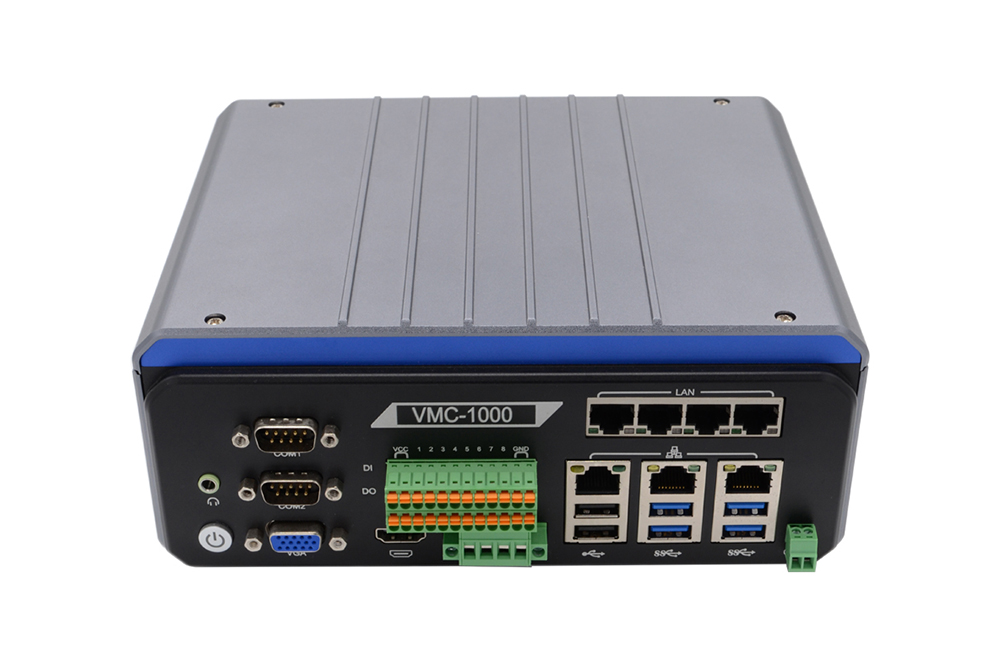

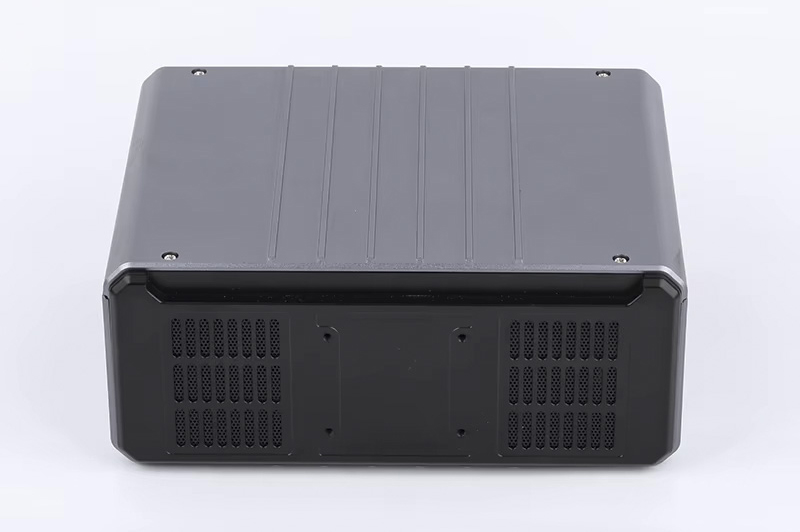

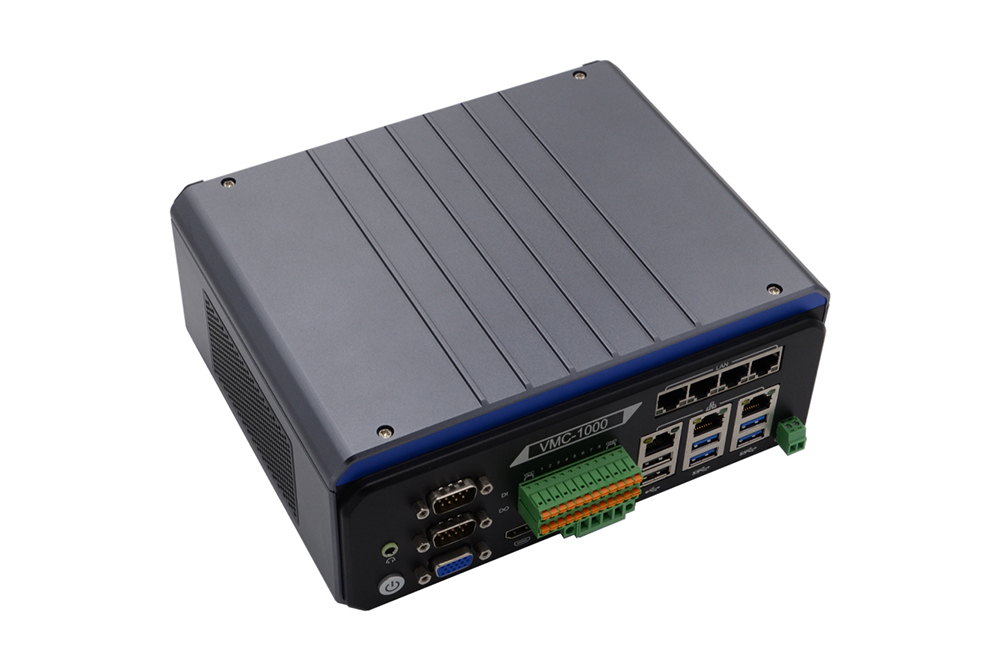

Fanless X86 Industrial Vision PC, Wide Temp -20~65°C, Multi-Gen Intel CPU, Up to 32GB DDR4, Rich POE LAN/Serial/GPIO Interfaces
description1
Technical Information
| Processor | 6th, 7th, 8th, and 9th generation Celeron, Pentium, and Core processors |
| Memory | Two SO-DIMM DDR4 memory modules (1.2V, maximum 32GB), maximum frequency 2666MHz. |
| Graphics processing | Supports one VGA port with a maximum resolution of 1920x1080 @60Hz. Supports one HDMI port with a resolution of 1920x1080 @60Hz. |
| Network card | Supports two Intel I211AT ports (I210AT optional) and one I219V Gigabit Ethernet port, and supports four PoE Gigabit Ethernet ports. |
| Storage | Supports one NVMe 2280 SSD (PCIe x4) and one SATA 3.0 port. |
| USB | Supports 4 USB 3.0 ports, 2 USB 2.0 ports, and 1 built-in dongle socket. |
| Serial port | Two optional RS232/RS422/RS485 interfaces, and one light source controller interface (RS232). |
| IO | Supports 16 GPIOs (optically isolated) 5~24V |
| Sound card | ALC662 high-fidelity sound card, 1 Line-Out interface |
| Power supply | DC24V, one push-button switch and one remote switch interface |
| Temperature | Operating temperature -20°C to +6.5°C |
| Size | 208 mm (length) x 170 mm (width) x 87.5 mm (height) |
| Operating system | Win7, Win10, Linux |
| Weight | 1.46 kg (bare machine), 2.55 kg (including packaging) |
| Color | The entire machine is iron gray, with white and blue silkscreened decorations. |
