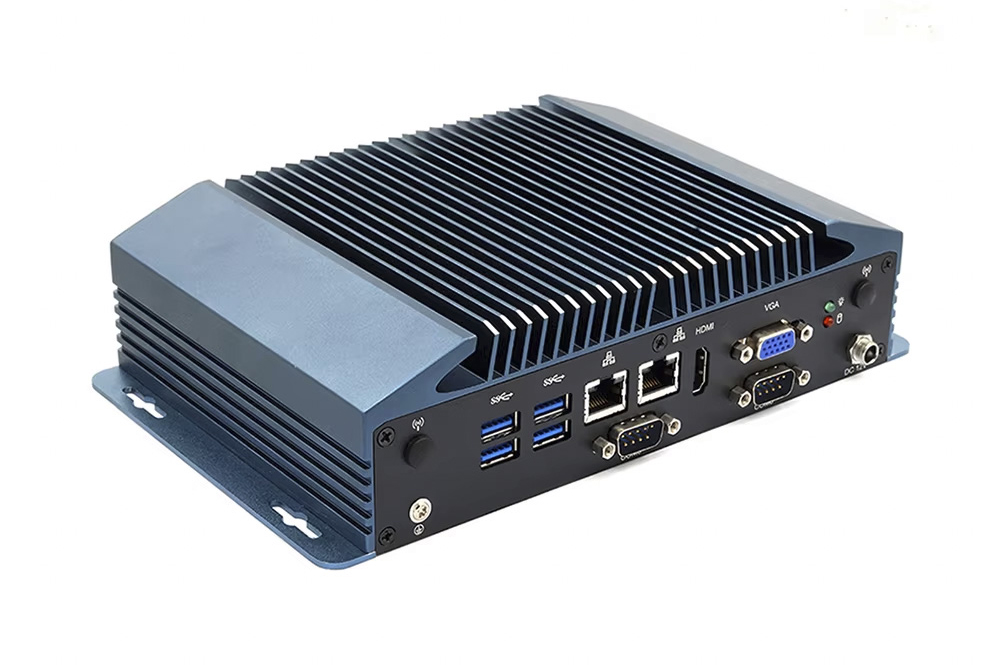

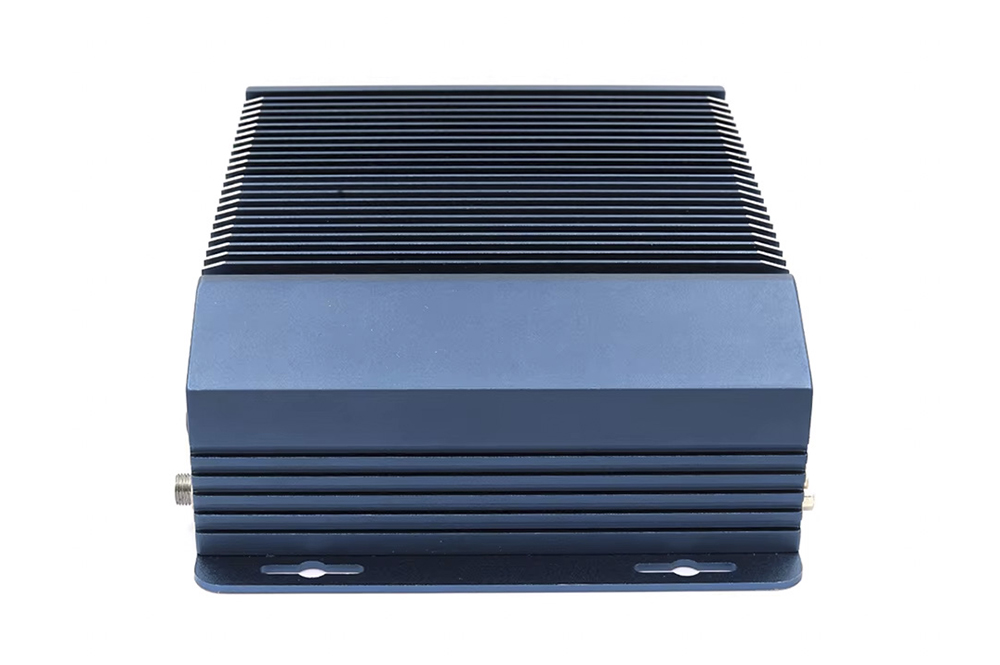

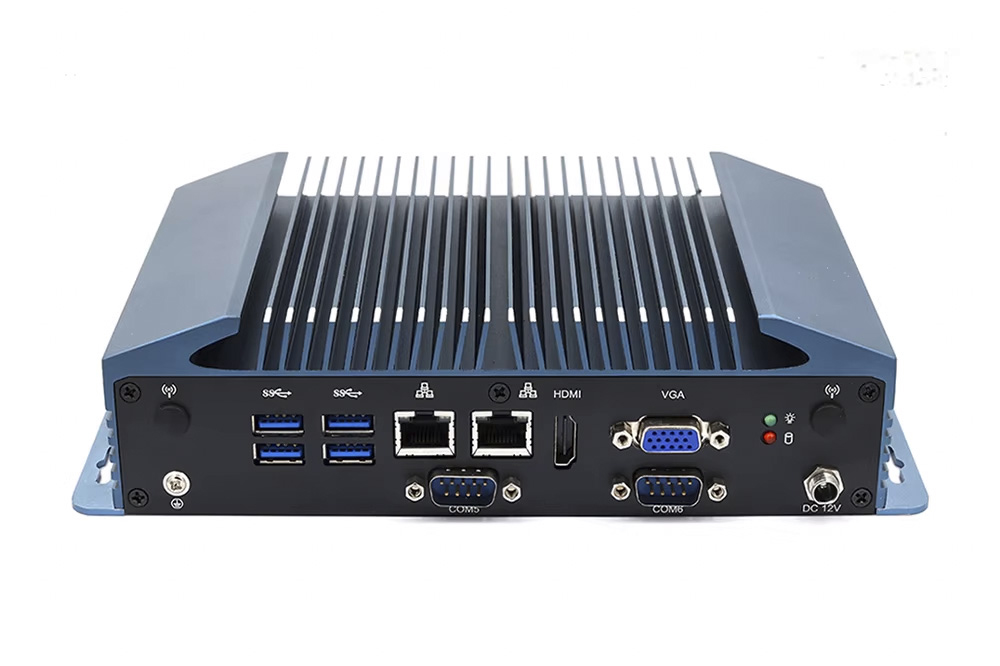

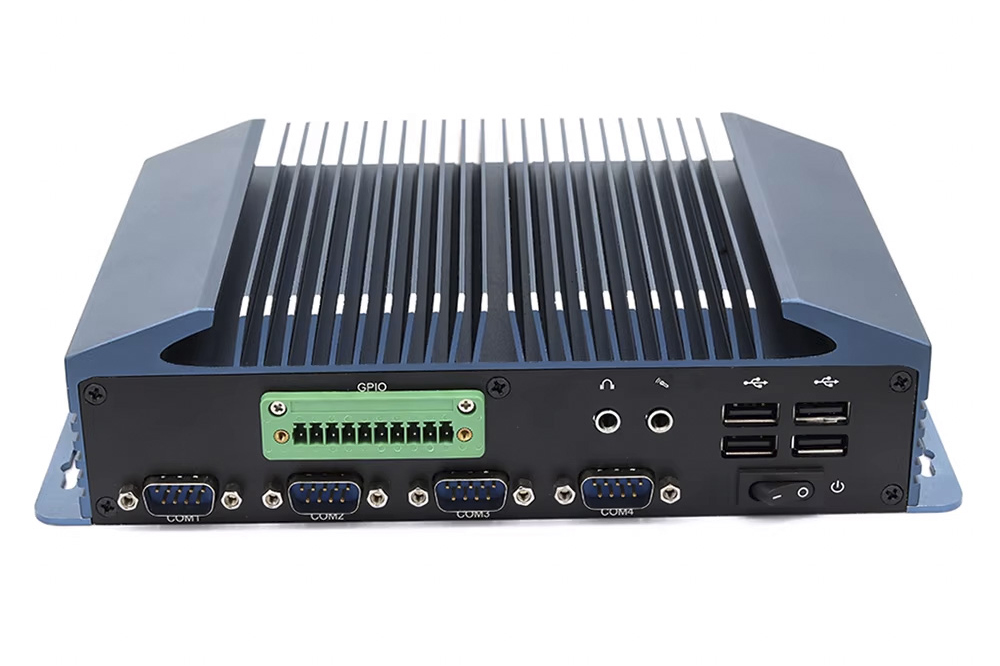

Fanless X86 Industrial Mini PC, Wide Temperature, Expandable CPU, DDR3L RAM, Dual LAN Multi Serial GPIO IO Industrial Computer

ECS-A351 is a fanless X86 industrial mini PC powered by optional Intel Apollo Lake low-power CPUs, supporting up to 8GB DDR3L RAM. It features dual gigabit LAN, multiple RS232/485 serial ports, GPIO, HDMI/VGA dual display and abundant USB interfaces, with mSATA & SATA3 storage slots. Built with passive heat dissipation, it delivers outstanding wide-temperature performance, operating stably from -20°C to 60°C (customizable to -40°C~70°C). Supporting Win10/11 and Linux, this rugged compact unit fits industrial automation, machine vision, smart gateway and outdoor monitoring scenarios with dustproof, maintenance-free merits.

    Contact us Download
    product details

    description1

    Technical Information

    Processor Intel® Apollo J3355 Dual-core 2.0GHz 10W;
    Intel® Apollo J3455 Quad-core 1.5GHz 10W;
    Intel® Apollo J4205 Quad-core 1.5GHz 10W;
    Intel® Apollo N3350 Dual-core 1.1GHz 6W;
    Intel® Apollo N3450 Quad-core 1.1GHz 6W;
    Intel® Apollo N4200 Quad-core 1.1GHz 6W
    Memory SO-DIMM DDR3L memory (1.35V, supports up to 8GB) with a maximum frequency of 1866MHz.
    Graphics processing Supports one VGA port with a maximum resolution of 1920x1080 @60Hz
    Supports one HDMI port with a maximum resolution of 1920x1080 @ 60Hz.
    Network card Supports 2 REALTEK 8111H 10/100/1000Mbit Ethernet
    Storage 1 mSATA, 1 SATA 3.0, 1 MPCIE
    USB Supports 4 USB 3.0 ports and 2 USB 2.0 ports.
    Serial port 4 RS232 (3-wire), 2 RS232 (3-wire) / RS422 / RS485
    IO Supports 8 GPIOs and 1 SIM card slot (Nano).
    Sound card ALC662 High-Fidelity Sound Card (Line-Out, MIC-in)
    Power supply +12V to +19V voltage, +12V is recommended. Power on (default), trigger power on (optional).
    Adapter 60W or above
    Temperature Operating temperature: -20°C to +60°C (optional -40°C to +70°C)
    Size 205 mm (length) x 140 mm (width) x 55 mm (height) (Overall dimensions excluding wall mount and external interface)
    Heat dissipation Fanless design
    Operating system Windows 10, Windows 11, Linux
    Weight 1.46 kg (bare machine), 2.55 kg (including packaging)
    Color The entire unit is blue, with black front and rear panels.
