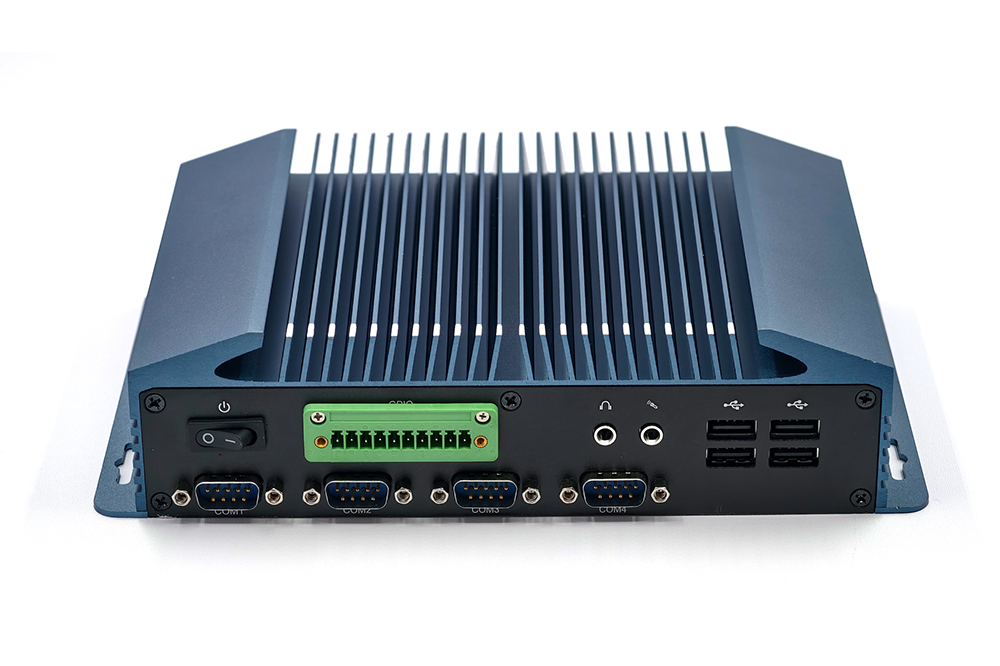

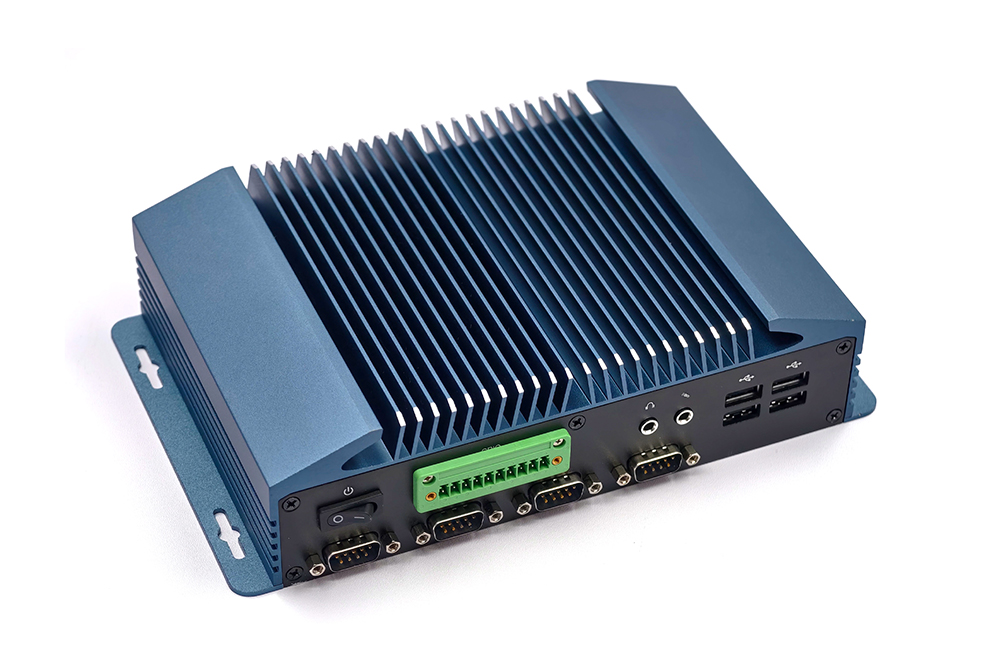

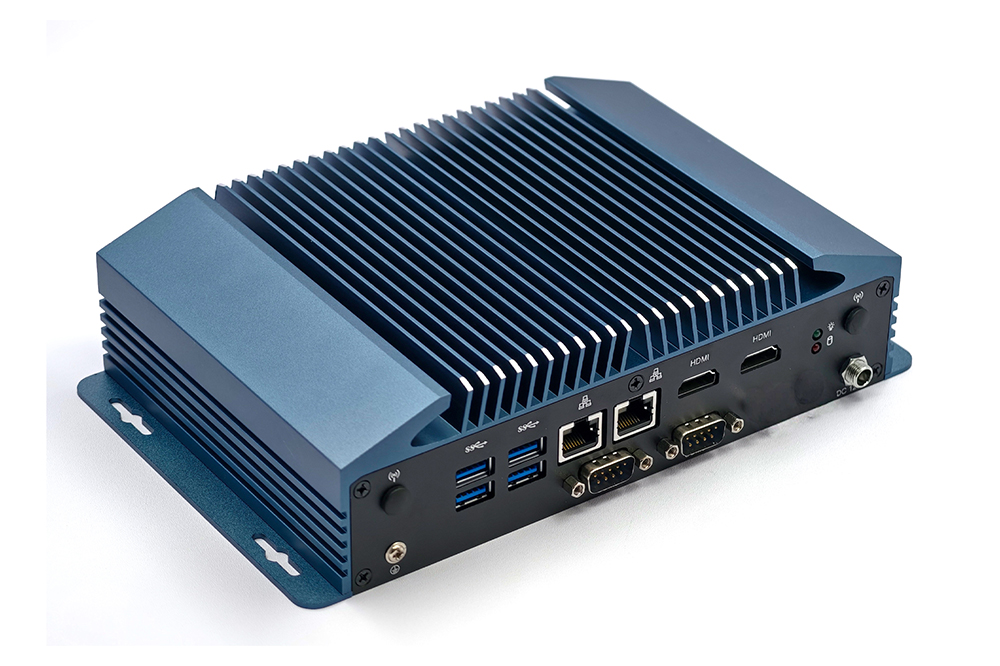

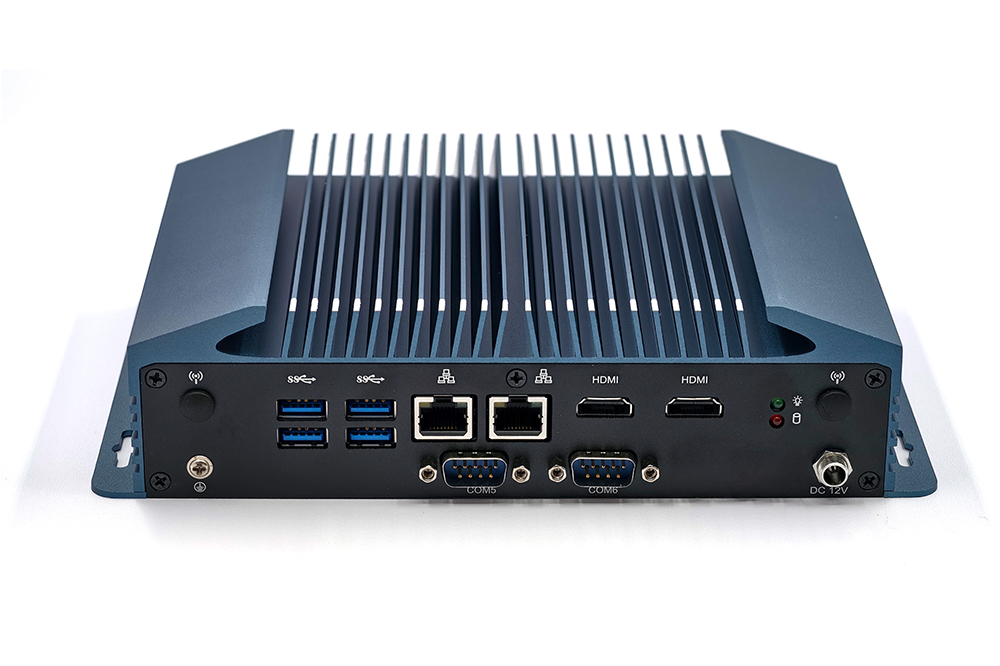

Fanless X86 Industrial Mini PC Wide Temp Support, Celeron CPU, DDR4 RAM, Dual LAN, Multi RS485/232 Serial Ports

ECS-GM351 is a fanless X86 industrial mini PC equipped with low-power Intel Celeron CPUs including N4020, N4120, J4025 and J4125, supporting up to 8GB DDR4 memory. It offers abundant interfaces: dual gigabit Ethernet, six multi-functional RS232/422/485 serial ports, six USB ports, 4K HDMI and VGA dual display outputs, plus multi-storage slots, GPIO and Nano SIM slots. Adopting passive heat sink cooling, it delivers excellent wide-temperature performance of -20℃ to +60℃, with a customized version supporting -40℃~+75℃. The 12-19V wide DC input fits tough environments, perfectly applied to industrial automation, IoT gateways, machine vision and on-site equipment monitoring.

    Contact us Download
    product details

    description1

    Technical Information

    Processor Intel® Celeron® N4020 Dual-core 1.1 GHz up to 2.8 GHz, 6 W
    Intel® Celeron® N4120 Quad-core 1.1 GHz up to 2.6 GHz, 6 W
    Intel® Celeron® J4025 Dual-core 2.0 GHz up to 2.9 GHz, 10 W
    Intel® Celeron® J4125 Quad-core 2.0 GHz up to 2.7 GHz, 10 W
    Memory SO-DIMM DDR4 memory (1.2V, supports up to 8GB) with a maximum frequency of 2400MHz.
    Graphics processing Supports one VGA port with a maximum resolution of 1920x1080 @ 60Hz
    Supports one HDMI port with a maximum resolution of 3840x2160 @ 60Hz.
    Network card Supports 2 REALTEK 8111H 10/100/1000Mbit Ethernet
    Storage One mSATA, one SATA 3.0, one MPCIE, with eMMC support (optional)
    USB Supports 4 USB 3.0 ports and 2 USB 2.0 ports.
    Serial port 4 RS232 (3-wire), 2 RS232 (3-wire) / RS422 / RS485
    IO Supports 8 GPIOs and 1 SIM card slot (Nano).
    Sound card ALC662 High-Fidelity Sound Card (Line-Out, MIC-in)
    Power supply +12V to +19V voltage, +12V is recommended. Power on (default), trigger power on (optional).
    Adapter 60W or above
    Temperature Operating temperature: -20°C to +60°C (optional: -40°C to +75°C)
    Size 205 mm (length) x 140 mm (width) x 55 mm (height) (Overall dimensions excluding wall mount and external interface)
    Heat dissipation Fanless design
    Operating system Windows 10, Windows 11, Linux
    Weight 1.46 kg (bare machine), 2.55 kg (including packaging)
    Color The entire unit is blue, with black front and rear panels.
