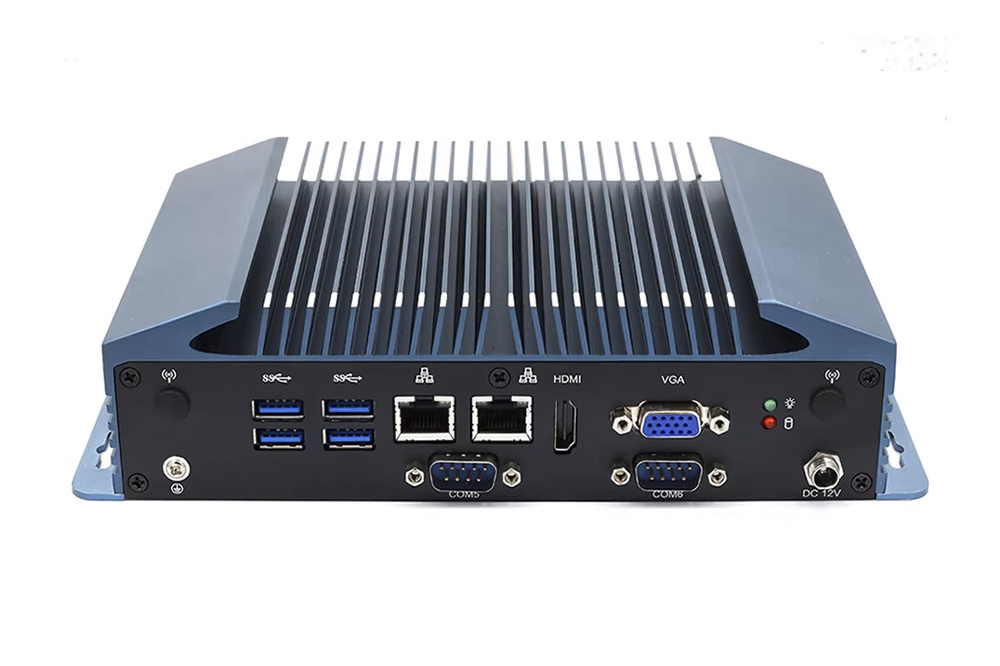

ECS-ADP351 fanless industrial pc 01.jpg

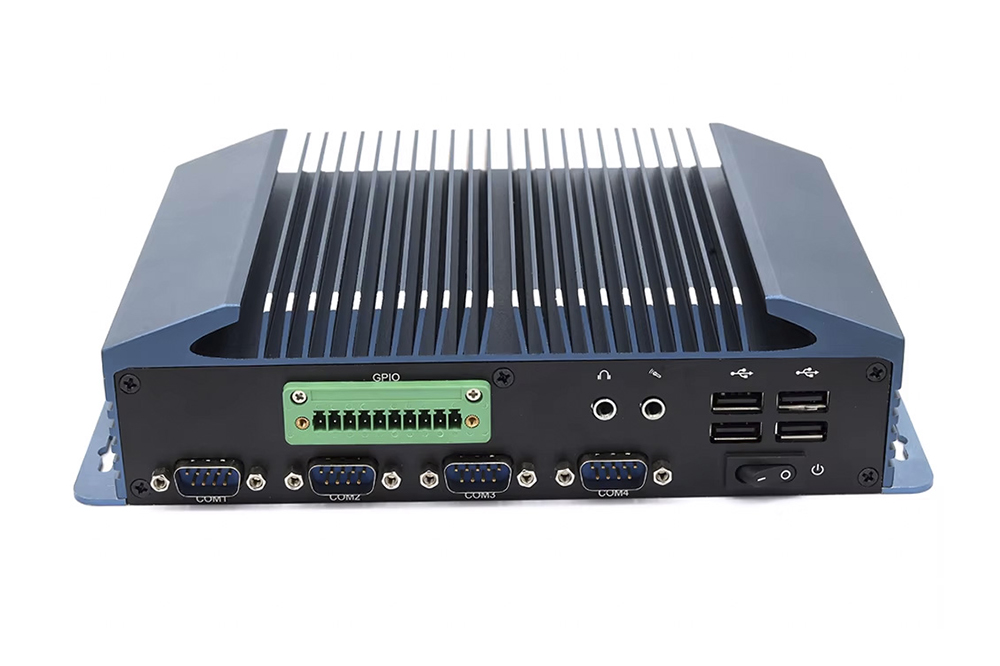

ECS-ADP351 fanless industrial pc 02.jpg

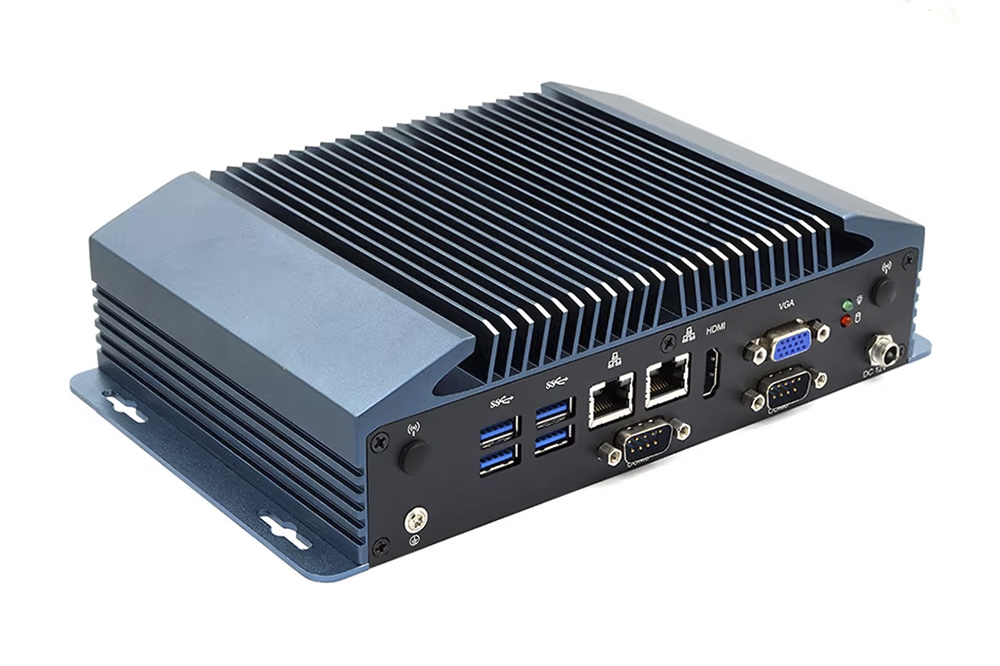

ECS-ADP351 fanless industrial pc 03.jpg

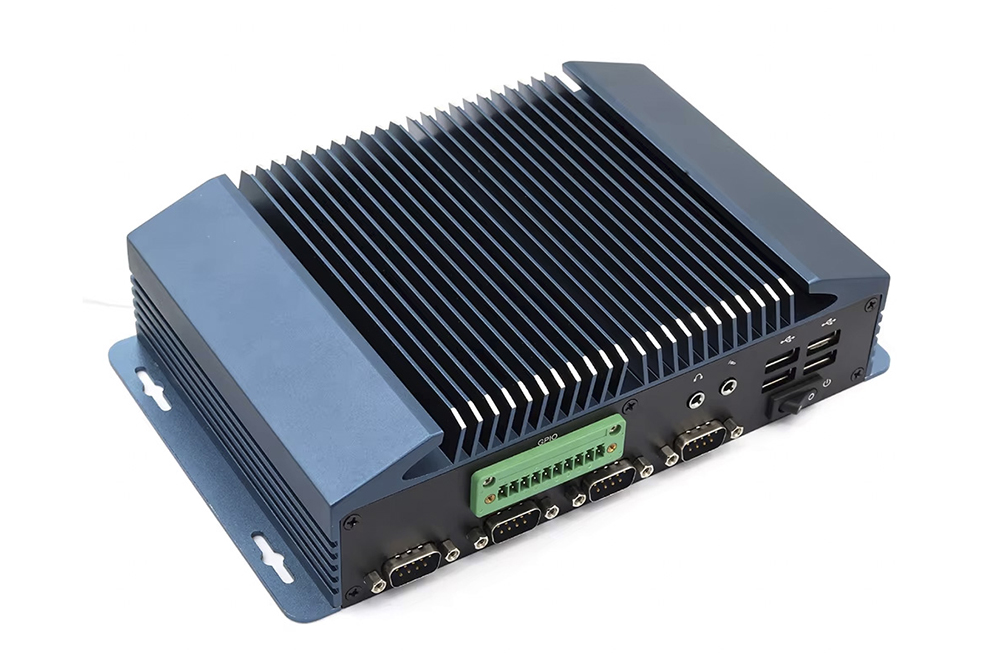

ECS-ADP351 fanless industrial pc 04.jpg

Fanless X86 Industrial Mini PC, Wide Temp, 12/13th Gen Core CPU, Max 64GB DDR4, Dual LAN & Multi RS485 Serial Ports

ECS-ADP351 is a fan-cooled X86 industrial mini PC powered by 12th & 13th Gen Intel Core CPUs. It supports up to 64GB DDR4 dual-channel memory, dual gigabit Ethernet, 6 multi-functional RS232/422/485 serial ports, HDMI+VGA dual display and abundant USB/GPIO interfaces. Equipped with SATA and M.2 dual storage slots, it reserves M.2 slots for WiFi/4G/5G expansion. Boasting wide-temperature performance from -20℃ to 60℃ (optional -40℃~70℃), this rugged embedded machine suits factory automation, machine vision and industrial gateway scenarios with stable operation under harsh environments.

    Contact us Download
    product details

    description1

    Technical Information

    Processor Intel Core i3-1215U, 2C+4A, up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core i3-1215UE, 2C+4A, up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core i3-1220P, 2C+8A, up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 28W-64W
    Intel Core i5-1235U, 2C+8A, up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core i5-1240P, 4C+8A, up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 28W-64W
    Intel Core i5-1245UE, 2C+8A, up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core i7-1255U, 2C+8A, up to 4.7 GHz (P-Core) 3.5 GHz (E-Core), 15W-55W
    Intel Core i7-1260P, 4C+8A, up to 4.7 GHz (P-Core) 3.4 GHz (E-Core), 28W-64W
    Intel Core i7-1265U, 2C+8A, up to 4.8 GHz (P-Core) 3.6 GHz (E-Core), 15W-55W
    Intel Core i7-1265UE, 2C+8A, up to 4.7 GHz (P-Core) 3.5 GHz (E-Core), 15W-55W
    Intel Core i3-1315U, 2C+4A, up to 4.5 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core i5-1335U, 2C+8A, up to 4.6 GHz (P-Core) 3.4 GHz (E-Core), 15W-55W
    Intel Core i3-1315UE, 2C+4A, up to 4.5 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core i5-1335UE, 2C+8A, up to 4.5 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core i7-1355U, 2C+8A, up to 5.0 GHz (P-Core) 3.7 GHz (E-Core), 15W-55W
    Intel Core i7-1365UE, 2C+8A, up to 4.9 GHz (P-Core) 3.7 GHz (E-Core), 15W-55W
    Memory Two dual-channel SO-DIMM DDR4 memory modules, maximum 64GB, frequency 2133/2666/3200MHz
    Graphics processing One HDMI port with a maximum resolution of 3840x2160 @ 60Hz.
    One VGA port has a maximum resolution of 1920x1080 @ 60Hz.
    Network card Supports two Intel 10/100/1000Mbit Ethernet ports (Intel I219V and I211AT/I210AT).
    Storage Supports one SATA 3.0 interface and one M.2 SSD (M-Key 2280 SSD PCIe x1/NGFF).
    mPCIe Supports one M.2 WIFI port (E-Key 2230 PCIe x1 & USB 2.0)
    Supports one M.2 4G/5G port (B-Key 3042/3052 PCIe x1 & USB 2.0)
    USB Supports 4 USB 3.0 ports and 4 USB 2.0 ports.
    Serial port 4 RS232 (3-wire), 2 RS232 (3-wire) / RS422 / RS485
    IO Supports 8 GPIOs and 1 SIM card slot (optional).
    Sound card ALC662/897 High-Fidelity Sound Card (Line-Out, MIC-in)
    Power supply +12V to +19V voltage, +12V is recommended. Power on (default), trigger power on (optional).
    Adapter 90W or above
    Temperature Operating temperature: -20°C to +60°C (optional: -40°C to +70°C)
    Size 205 mm (L) x 140 mm (W) x 55 mm (H) (Overall dimensions, excluding wall mount and external interface)
    Heat dissipation Fan cooling
    Operating system Windows 10, Windows 11, Linux
    Weight 1.46 kg (bare machine), 2.55 kg (including packaging)
    Color The entire unit is blue, with black front and rear panels.
