Fanless X86 Industrial 3.5 Inch Mainboard Onboard Core U CPU DDR4, Dual Intel LAN, Multi Display & Wide Temperature Design

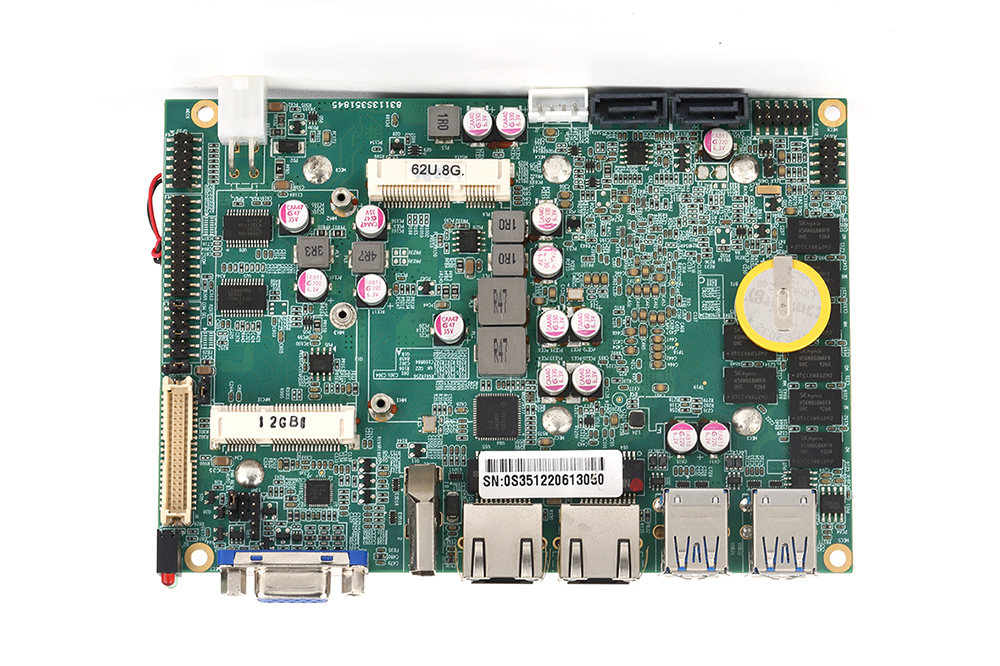

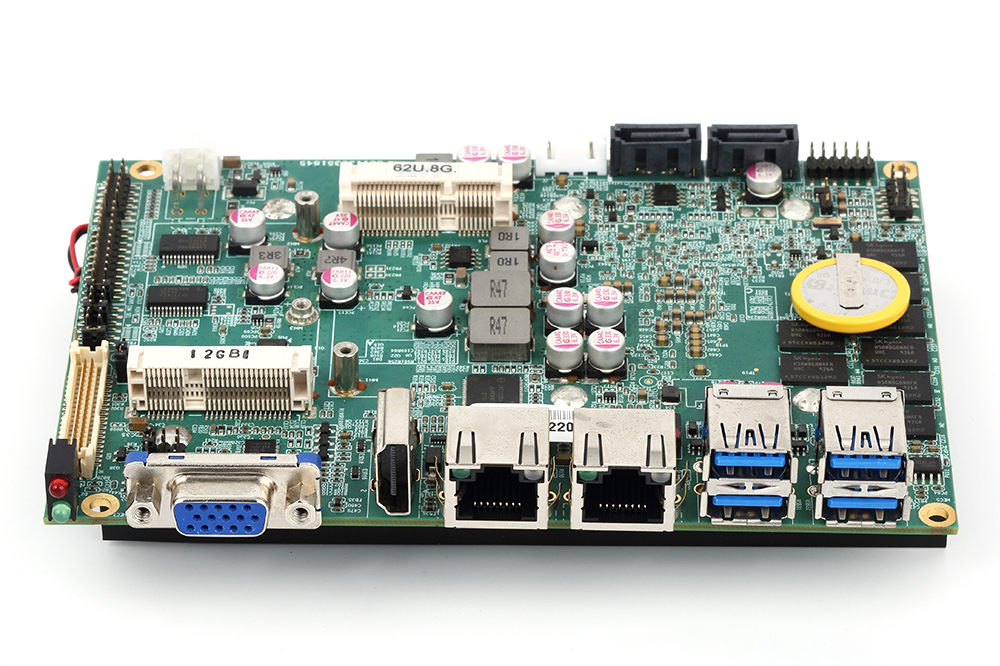

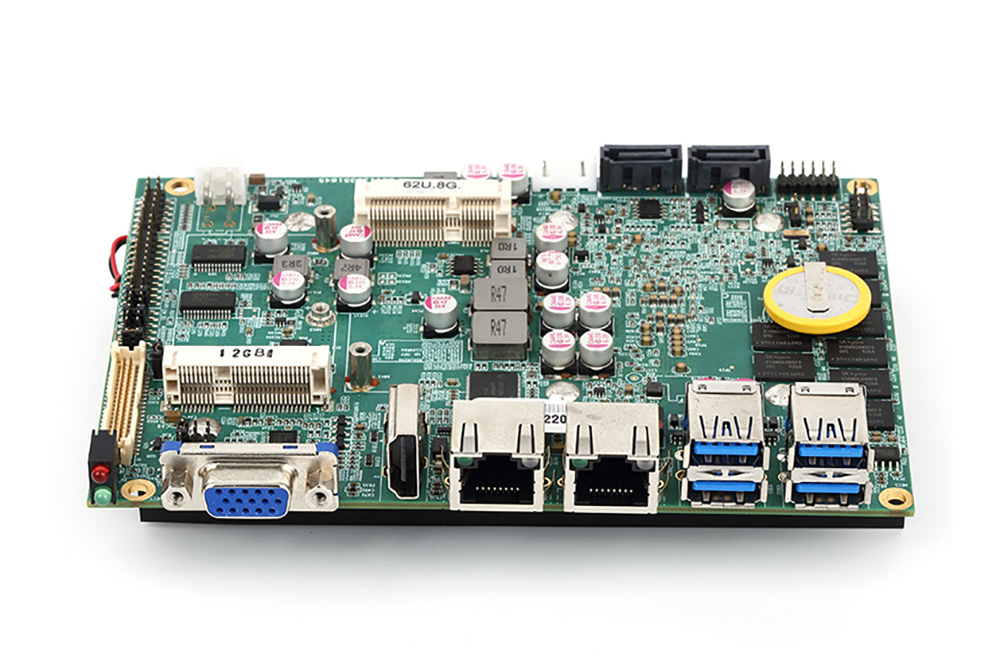

PCM-S351 is a compact 3.5-inch fanless x86 industrial motherboard powered by Intel Skylake/Kaby Lake U-series 15W CPUs, with onboard 4/8/16GB DDR4 1.2V RAM up to 2133MHz. It integrates dual Intel Gigabit LAN, multi-display outputs (VGA/HDMI/LVDS/eDP), 6 industrial serial ports, SATA/mSATA/mPCIe storage and abundant GPIO/USB interfaces. Supporting wide DC input 12–24V, it delivers standard -20℃~+60℃ operating range, with optional ultra-wide temperature of -40℃~+75℃ for harsh environments. Ideal for factory automation, machine vision, industrial gateways and intelligent terminal devices, featuring stable performance and full industrial IO scalability.

    Contact us Download
    product details

    description1

    Product Introduction

    3.5-inch motherboard, with onboard Intel Skylake or Kabylake U -series processor

    Intel​Skylake or Intel Kabylake U- series processor, TDP: 15W

    » Onboard 4GB/8GB/16GB DDR4 memory ( 1.2V ) , maximum frequency 2133MHz

    » Integrates Intel's 9th generation graphics core , supporting OpenGL 4.0, OpenCL 1.2, DX11.1, H.264, MPEG2, and VC-1.

    » Supports VGA, HDMI, LVDS ( 18/24- bit single or dual channel) or EDP

    » Supports Intel 10/100/1000Mbit Ethernet, SATA, mSATA and mPCIe

    » Supports USB 2.0 and USB 3.0 , serial port, and GPIO interface

    Input voltage: +12V~+ 24V , + 12V is recommended .

    » Operating temperature: -20 ° C to + 60 °C (optional -40°C to + 75 °C )

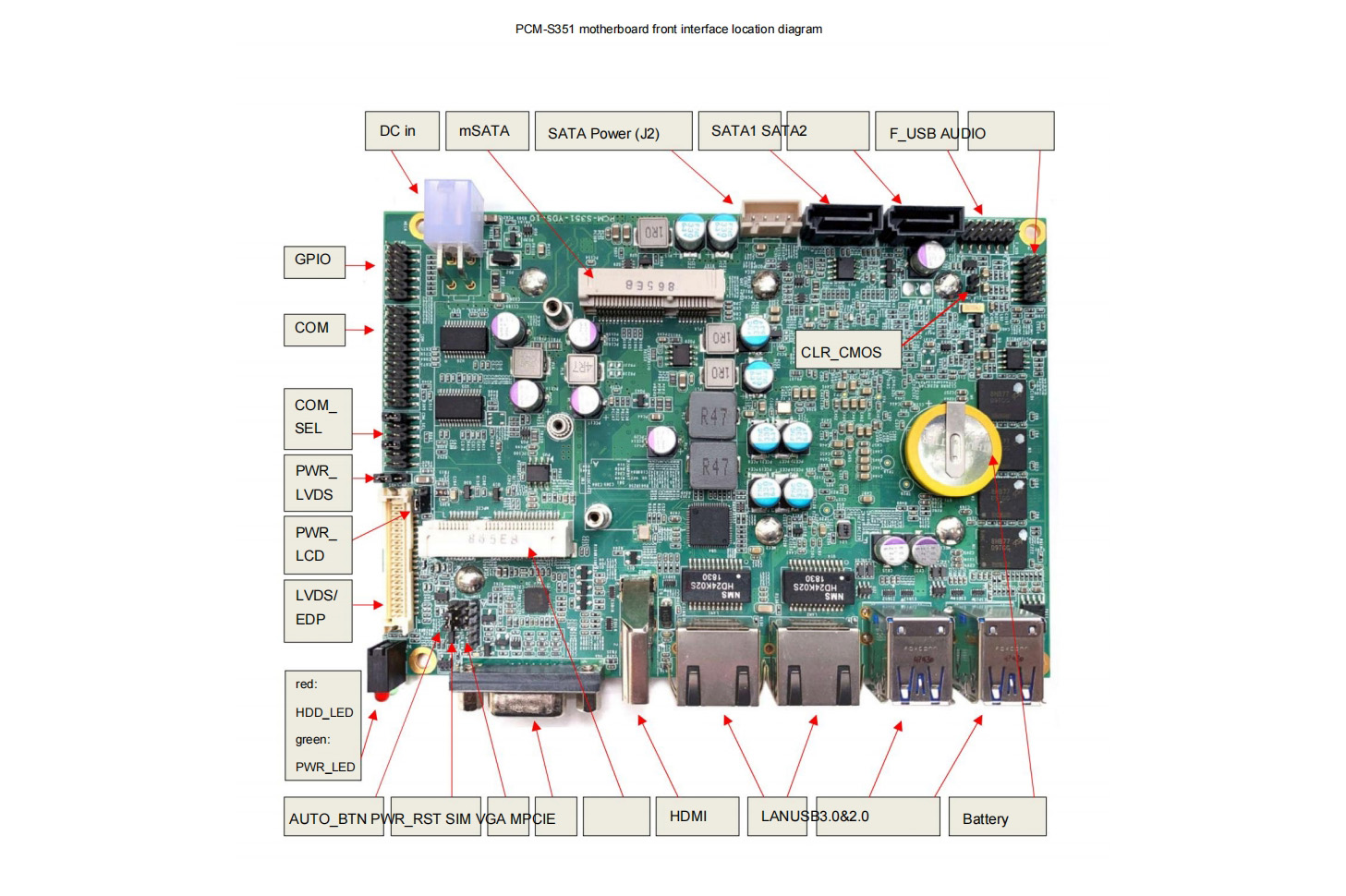

    Technical Information

    Plate type 3.5-inch motherboard
    Processor 6th generation Skylake-u or 7th generation Kabylake-u, I3, I5, I7
    Support:
    Intel® Core™ i3-6100U 2.3 GHz 15W
    Intel® Core™ i5-6200U 2.3 GHz 15W
    Intel® Core™ i7-6500U 2.5 GHz 15W
    Intel® Core™ i3-7100U 2.4 GHz 15W
    Intel® Core™ i3-7020U 2.3 GHz 15W
    Intel® Core™ i5-7200U 2.5 GHz 15W
    Intel® Core™ i7-7500U 2.7 GHz 15W etc.
    Memory Onboard 4GB/8GB/16GB DDR4 memory (1.2V), maximum frequency 2133MHz
    Graphics processing Supports one VGA port with a maximum resolution of 1920x1080 @60Hz
    Supports one HDMI port with a maximum resolution of 1920x1080 @60Hz.
    Supports one 18/24-bit single-channel or dual-channel LVDS
    Network card Supports 2 Intel processors 10/100/1000Mbit Ethernet, Intel® I219V/LM and I211AT/I210AT
    SATA Two SATA 1.0/2.0/3.0 standard interfaces
    Supports 1 mSATA
    mPCIe Supports 1 mPCIe
    USB Supports 4 USB 3.0/2.0 ports (front panel)
    Supports 4 built-in USB 2.0 ports.
    Serial port Supports 6 RS232 ports (3-wire), COM1 and COM2 can be selected from RS232/422/485.
    IO Supports 8 GPIOs (front-facing) and 1 SIM card slot (optional).
    Sound card ALC662 High-Fidelity Sound Card (Line-in, Line-out, Mic-in)
    Power supply +12V~+24V, +12V is recommended.
    Temperature Operating temperature: -20°C to +60°C (optional -40°C to +75°C)
    Size 146 mm x 101.6 mm

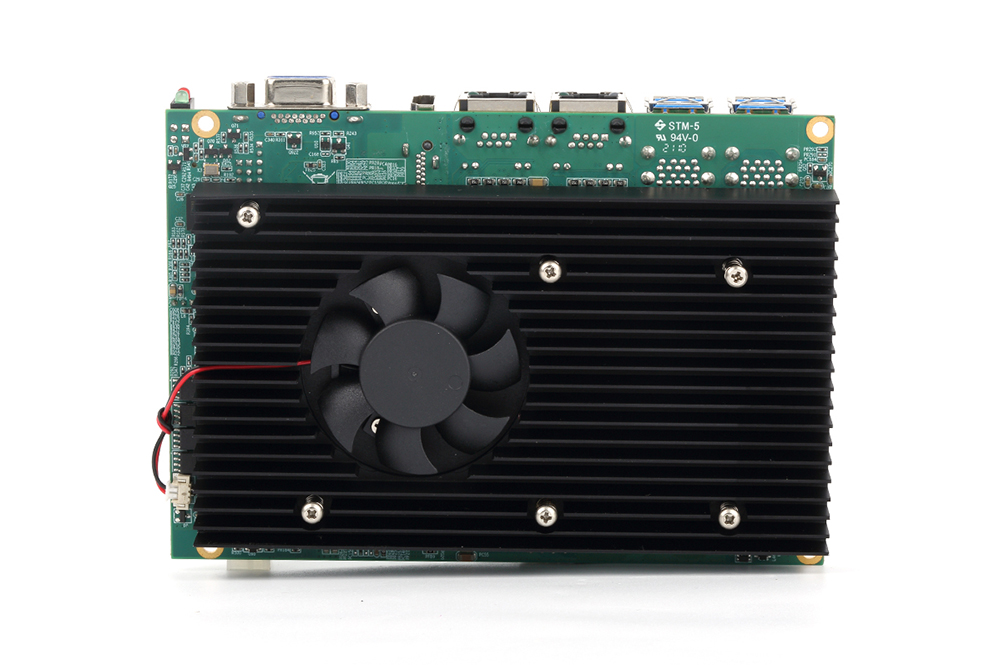

    Heat dissipation Fanless design (fan optional)
    Operating system Win7, Win10, Linux
