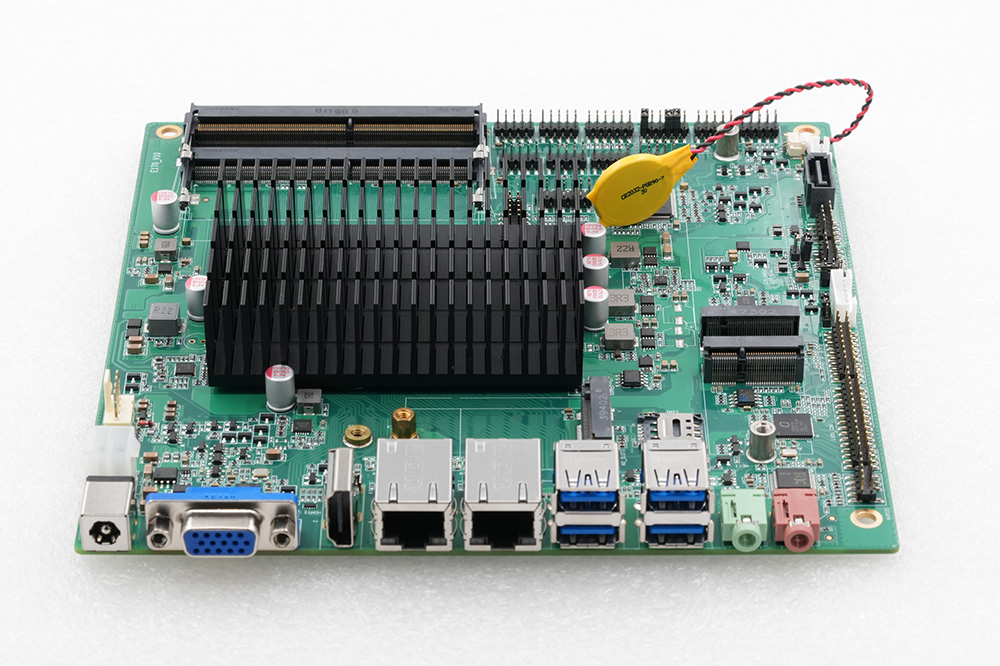

PCM-E170 industrial motherboard 1.jpg

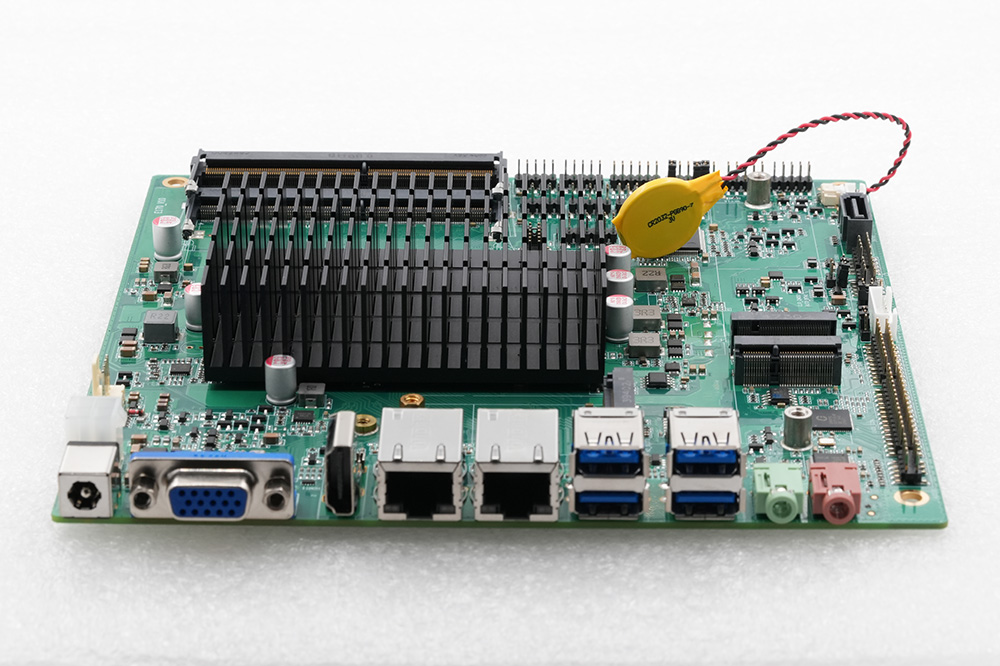

PCM-E170 industrial motherboard 2.jpg

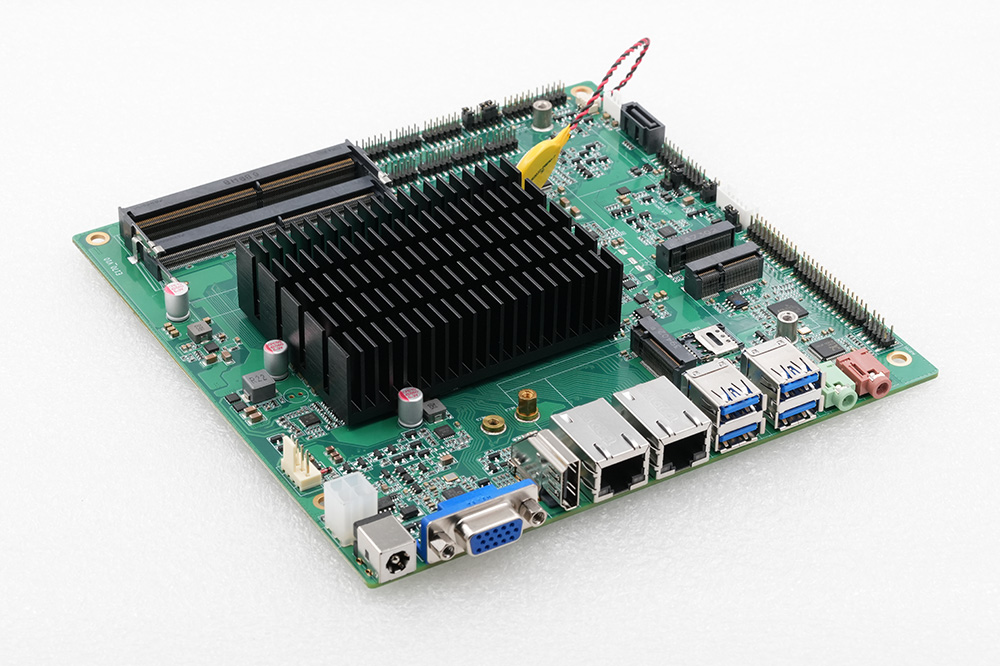

PCM-E170 industrial motherboard 3.jpg

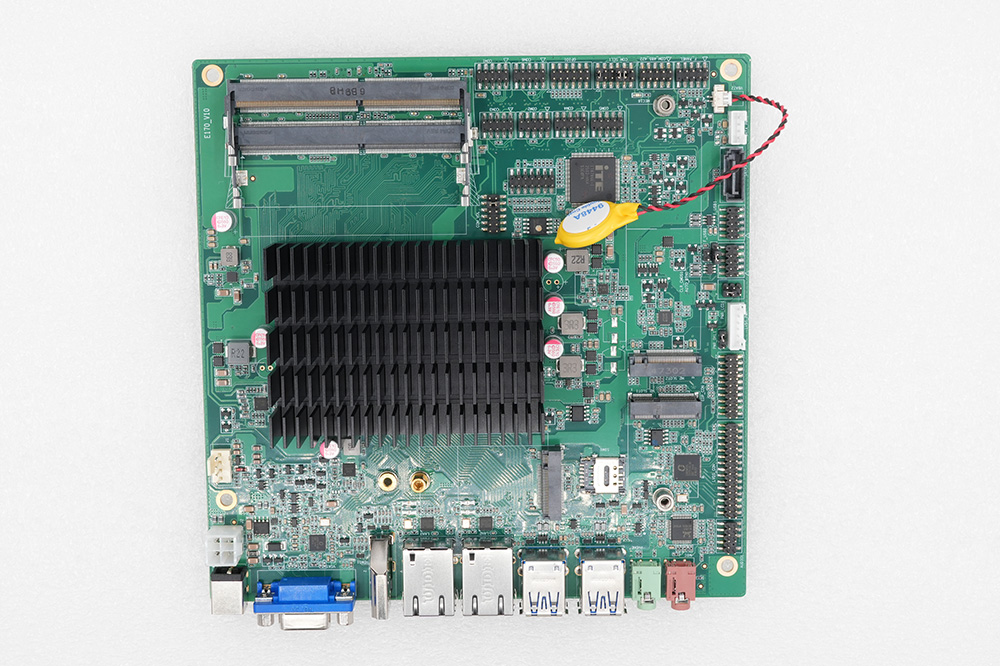

PCM-E170 industrial motherboard 4.jpg

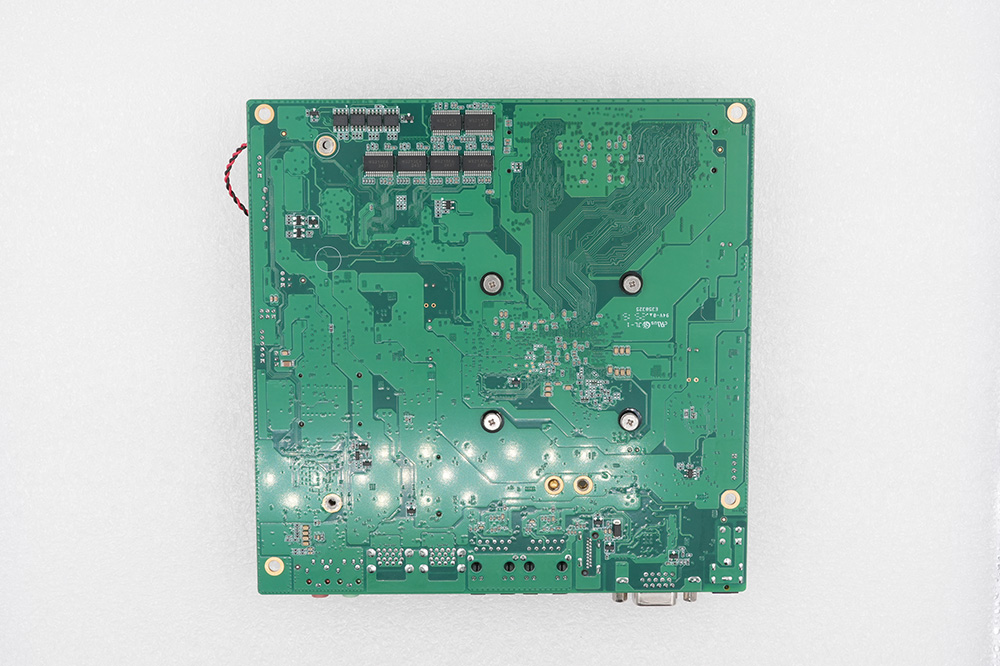

PCM-E170 industrial motherboard 5.jpg

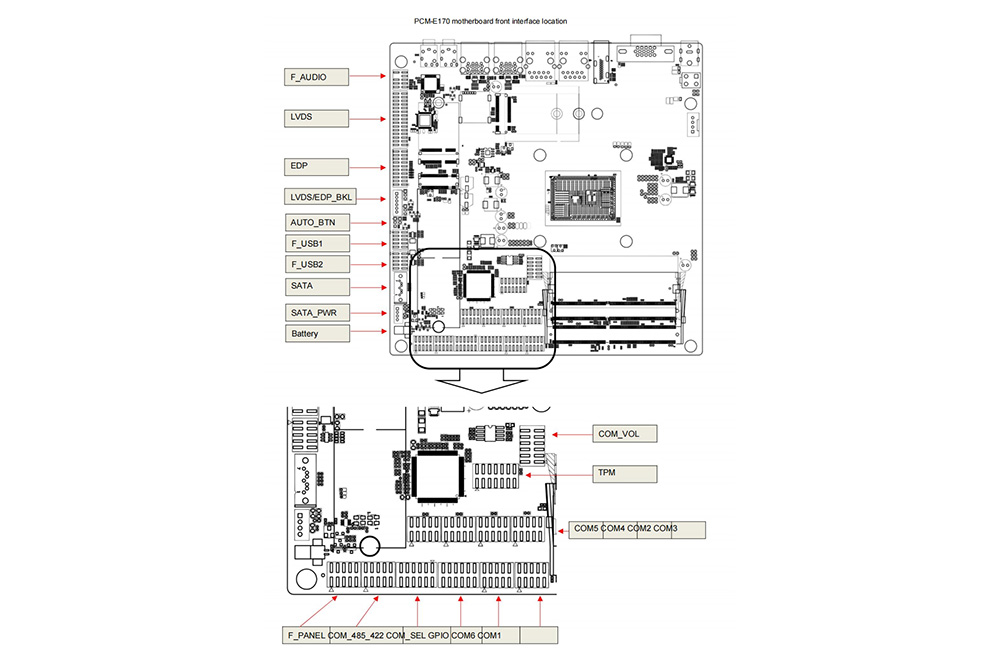

PCM-E170 .jpg

Fanless Wide Temp X86 Industrial Board, Elkhart Lake Series CPU, Dual DDR4 64GB Max, Quad Independent Display Outputs

PCM-E170 is a fanless Mini-ITX X86 industrial motherboard powered by Intel Elkhart Lake SoC CPUs ranging from 4.5W to 12W. It adopts dual DDR4 SO-DIMM slots supporting up to 64GB RAM at 3200MHz, with dual Gigabit LAN, multi-display outputs and abundant industrial serial & GPIO ports. Equipped with multiple M.2 slots for SSD, Wi-Fi and 4G/5G modules, this board features wide-temperature design of -20°C~+60°C (optional -40°C~+75°C) and 12-24V wide voltage input. Ideal for industrial control, smart gateways, self-service terminals and digital signage under harsh working environments.

    Contact us Download
    product details

    description1

    Product Introduction

    Mini-ITX motherboard with onboard Intel® Elkhart Lake ™ Series SOC

    » Intel®​ Elkhart Lake series SoCs, power consumption: 6.5~12W

    » SO-DIMM x2 DDR4 memory (1.2V, supports up to 64GB ) with a maximum frequency of 3200MHz .

    » Intel's 11th generation graphics core supports DX12, MPEG2, H.264, JPEG/MJPEG, and H.265 (HEVC).

    » Supports eDP 1.3 , HDMI 1.4, VGA, LVDS ( 18/24- bit single-channel or dual-channel)

    » Supports 10/100/1000Mbit Ethernet , SATA, NVMe SSDs

    » USB 2.0 and USB 3.0 interfaces , RS232/422/485 serial port, GPIO interface, watchdog timer.

    Voltage : + 12V ~+ 24V , + 12V recommended .

    » Operating temperature: -20 ° C to + 60 °C (optional -40°C to + 75 °C )

    Technical Information

    Plate type Mini-ITX
    Processor Intel® Elkhart Lake series SOCs support:
    Intel® Celeron® N6210 Dual core 1.2 GHz up to 2.6 GHz, 6.5 W
    Intel® Celeron® N6211 Dual core 1.2 GHz up to 3.0 GHz, 6.5 W
    Intel® Celeron® J6412 Quad-core 2.0 GHz up to 2.6 GHz, 10 W
    Intel® Celeron® J6413 Quad-core 1.8 GHz up to 3.0 GHz, 10 W
    Intel® Celeron® N6415 Quad-core 1.2 GHz up to 3.0 GHz, 6.5 W
    Intel® Celeron® J6426 Quad-core 2.0 GHz up to 3.0 GHz, 10 W
    Intel® Atom® X6200FE Dual-Core 1.0 GHz, 4.5 W
    Intel® Atom® X6212RE Dual-core 1.2 GHz, 6W
    Intel® Atom® X6414RE Quad-core 1.5 GHz, 9W
    Intel® Atom® X6427FE Quad-core 1.9 GHz, 12W
    Intel® Atom® X6425RE Quad-core 1.9 GHz, 12W
    Intel® Atom® X6211E dual core 1.3 GHz up to 3.0 GHz, 6 W
    Intel® Atom® X6413E Quad-core 1.5 GHz up to 3.0 GHz, 9 W
    Intel® Atom® X6425E Quad-core 2.0 GHz up to 3.0 GHz, 12 W
    Memory Two SO-DIMM DDR4 memory modules (1.2V, maximum support 64GB), maximum frequency 3200MHz.
    Graphics processing Three independent display outputs support eDP (maximum resolution 1920x1080) or LVDS (maximum resolution 1920x1080), HDMI 1.4 (maximum resolution 1920x1080), and VGA (maximum resolution 1920x1080).
    Network card Supports two RTL8111H 10/100/1000 Mb/s Ethernet ports
    Storage 1 M.2 SSD (M-Key 2280 PCIe x1 or SATA)
    1 M.2 WIFI (E-Key 2230 PCIe x1 & USB 2.0)
    1 M.2 4G/5G (B-Key 3042/3052) PCIe x1 & USB 2.0
    1 SATA 3.0
    USB Supports 4 USB 2.0 ports and 4 USB 3.0 / 2.0 ports.
    Serial port Supports 6 RS232 ports, with COM1/2 selectable between RS232/422/485, and COM3/4 selectable with pin 9 powered (5V/12V).
    IO 8 GPIO ports, 1 SIM card slot, 1 TPM socket, watchdog function
    Sound card ALC662 High-Fidelity Sound Card (Line-in, Line-out, Mic-in)
    Power supply +12V to +24V voltage, +12V is recommended.
    Temperature Operating temperature: -20°C to +60°C (optional: -40°C to +75°C)
    Size 170 mm x 170 mm
    Heat dissipation Fanless design (fan optional)
    Operating system Windows 10, Windows 11, Linux
