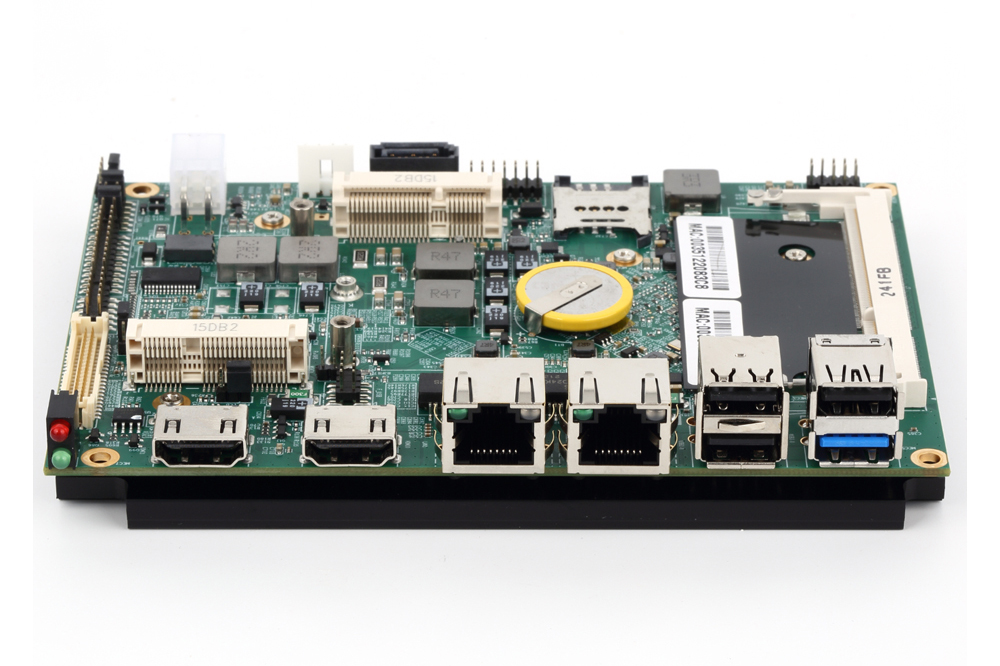

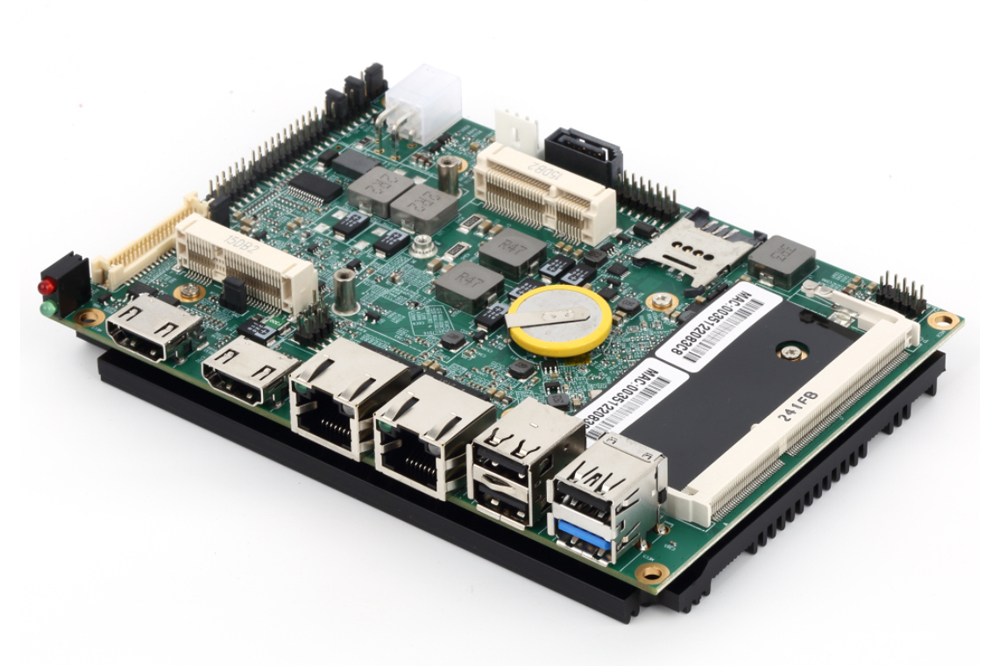

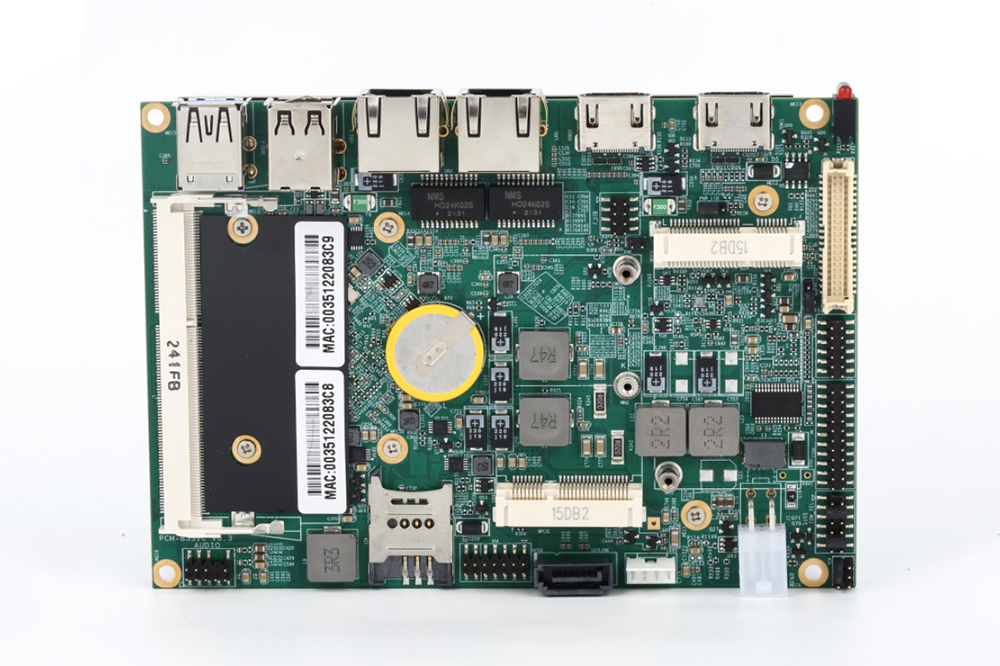

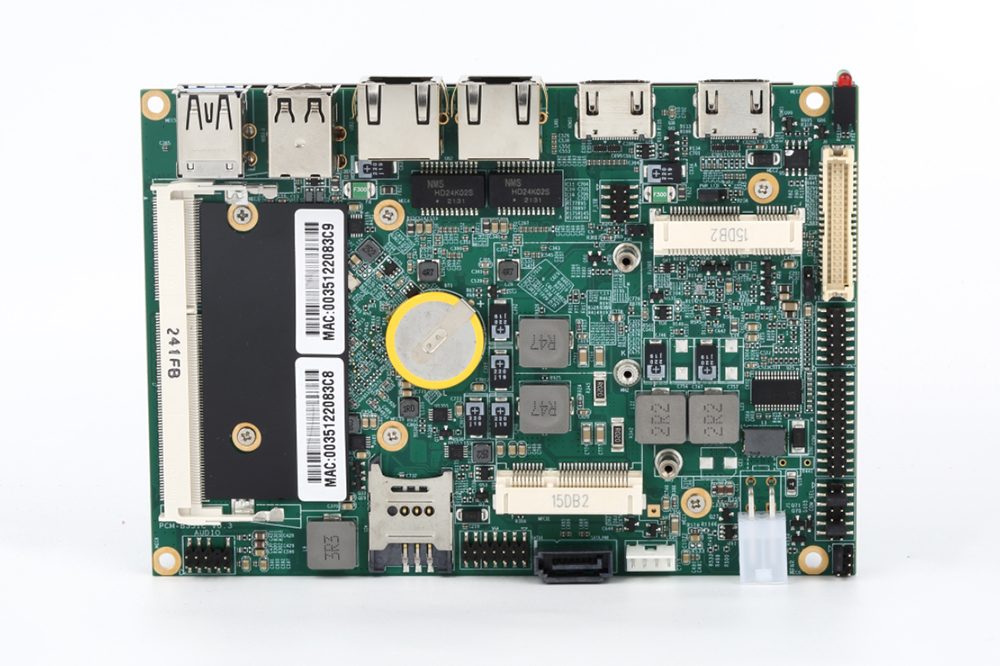

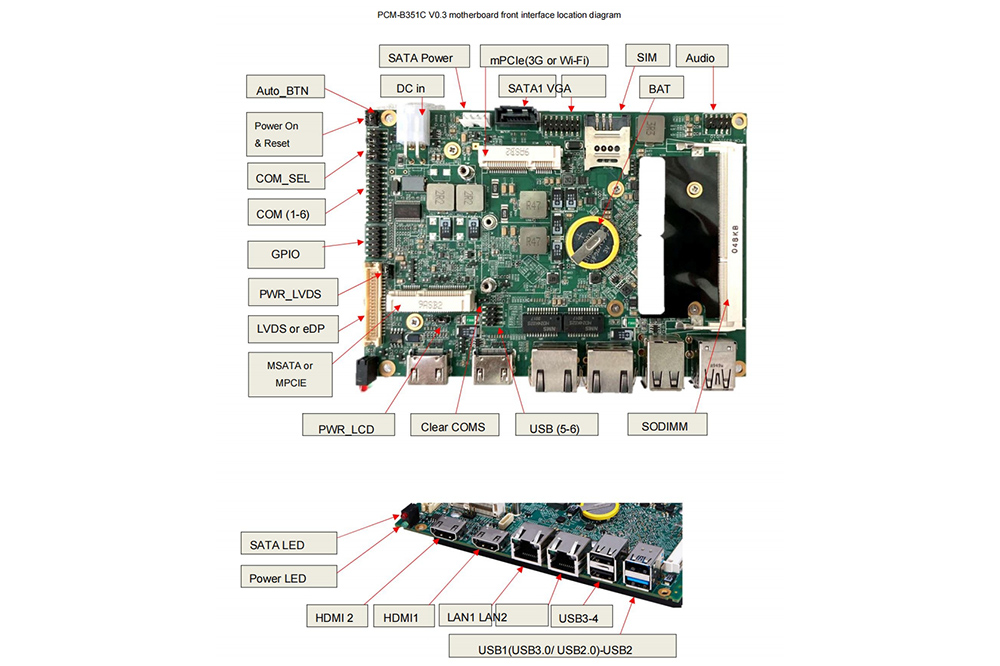

Fanless 3.5 Inch X86 Industrial Motherboard with Baytrail Atom/Celeron SOC
description1
Product Introduction
3.5-inch motherboard with onboard Intel® Atom ™ E38XX or Celeron ™ J1900 series ( SOC )
» Intel® Atom ™ E38xx or Celeron ™ J1900 series SOC, TDP: 5-10W
» SO-DIMM DDR3L memory (1.35V, supports up to 8GB ) with a maximum frequency of 1333MHz .
» Supports Intel 7th generation graphics cores , OpenGL 3.0, OpenCL 1.2, DX11, H.264, MPEG2, MCV, VC-1, VP8
» Supports eDP 1.3 , HDMI 1.4a , VGA, and LVDS ( 18/24- bit single-channel or dual-channel).
» Supports 10/100/1000Mbit Ethernet , SATA, mSATA ( mPCIe) , or mPCIe.
» USB 2.0 and USB 3.0 interfaces , RS232/422/485 serial port, GPIO interface.
» Input voltage: + 12V ~+ 24V , + 12V is recommended , 9-24V is optional.
» Operating temperature: -20°C ~ +75°C (optional -40 ° C ~) +8 5 °C)
Technical Information
| Plate type | 3.5-inch motherboard |
| Processor | Intel® Atom™ E38xx / Celeron™ J1x00 series SoC (single-core, dual-core or quad-core), TDP: 5-10W Support: Intel® Atom™ E3805 Single Core 1.33GHz 3W Intel® Atom™ E3815 Single Core 1.46GHz 5W Intel® Atom™ E3825 Dual-Core 1.33GHz 6W Intel® Atom™ E3826 Dual-Core 1.46GHz 7W Intel® Atom™ E3827 Dual-Core 1.75GHz 8W Intel® Atom™ E3845 Quad-Core 1.91GHz 10W Intel® Celeron™ J1800 Dual-Core 2.41 GHz 10W Intel® Celeron™ J1900 Quad-Core 2.0GHz 10W |
| Memory | SO-DIMM DDR3L memory (1.35V, supports up to 8GB) with a maximum frequency of 1333MHz. |
| Graphics processing | Two independent display outputs support eDP (maximum resolution 1920x1080) or LVDS (maximum resolution 1920x1080), HDMI 1.4a (maximum resolution 1920x1080), and VGA (maximum resolution 1920x1080). |
| Network card | Supports two RTL8111H N ports (10/100/1000 Mb/s Ethernet). |
| SATA | Supports one mSATA and one SATA 2.0 port. |
| USB | Supports 5 USB 2.0 ports and 1 USB 3.0 / 2.0 port (4 front-facing and 2 internal). |
| Serial port | Supports 6 RS232 (3-wire) ports, with COM5 and COM6 selectable between RS232/422/485. |
| IO | Supports 1 mPCIe port, 8 GPIO ports, and 1 SIM card slot. |
| Sound card | ALC662 High-Fidelity Sound Card (Line-in, Line-out, Mic-in) |
| Power supply | +12V to +24V voltage, +12V is recommended, 9-24V is optional. |
| Temperature | Operating temperature: -20°C to +75°C (optional: -40°C to +85°C) |
| Size | 146 mm x 101 mm |

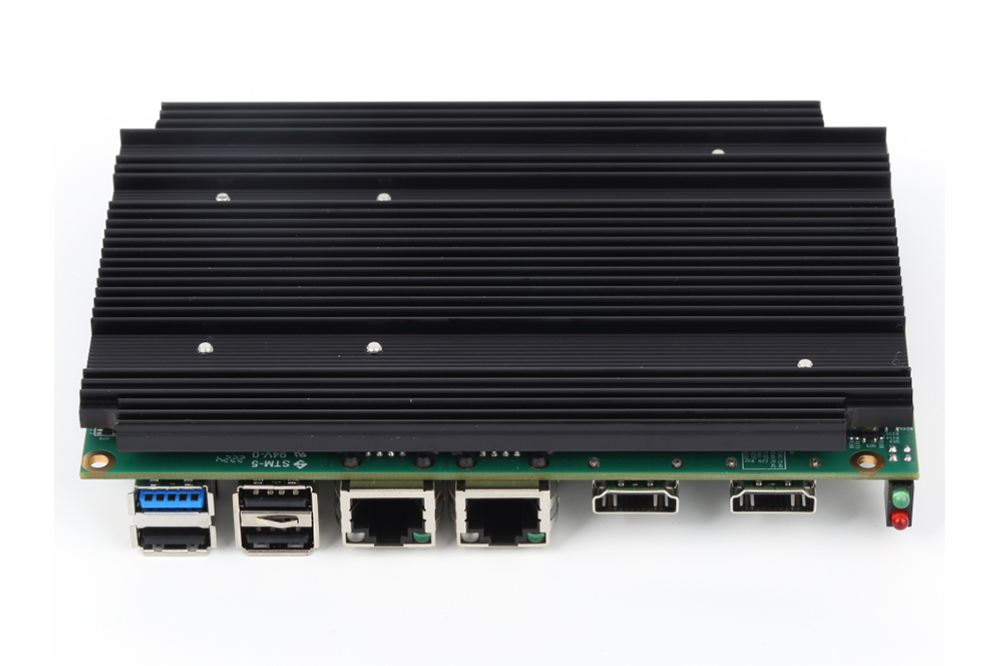

| Heat dissipation | Fanless design |
| Operating system | Win7, Win10, Linux |
Ordering Information
| Model | Describe |
| PCM-B351C-A10-X | Display: 1x LVDS + 1x HDMI or 1x LVDS + 1x VGA |
| PCM-B351C-A11-X | Display: 1x eDP + 1x HDMI or 1x eDP + 1x VGA |
| PCM-B351C-A12-X | Display: 2x HDMI or 1x VGA + 1x HDMI |
| PCM-B351CW-A10-X | Display: 1x LVDS + 1x HDMI or 1x LVDS + 1x VGA Temperature: -40°C to +85°C |
| PCM-B351CW-A11-X | Display: 1x eDP + 1x HDMI or 1x eDP + 1x VGA Temperature: -40°C to +85°C |
| PCM-B351CW-A12-X | Display: 2x HDMI or 1x VGA + 1x HDMI Temperature: -40°C to +85°C |
| Annotation: X represents the CPU model, including: E3805, E3815, E3825, E3826, E3827, E3845, and J1900. | |
FAQ
Q1: Why is this board good for harsh, tight industrial spaces?
A: It’s a 3.5-inch fanless motherboard (146×101mm) with passive cooling, avoiding dust-related fan failures. It can work from -40°C to +85°C (optional) and handles 9-24V power, fitting harsh environments and small spaces.
Q2: How does it ensure 24/7 stable operation?
A: It uses an Intel Bay Trail Atom/Celeron SOC (5-10W TDP) with low heat, paired with DDR3L memory (up to 8GB) for energy-efficient, long-term performance.
Q3: What industrial connections does it have?
A: It has dual Gigabit LAN, 6 configurable serial ports for legacy devices, an mPCIe slot for 4G, and multiple displays (HDMI/VGA) to connect PLCs, sensors, and control terminals.
