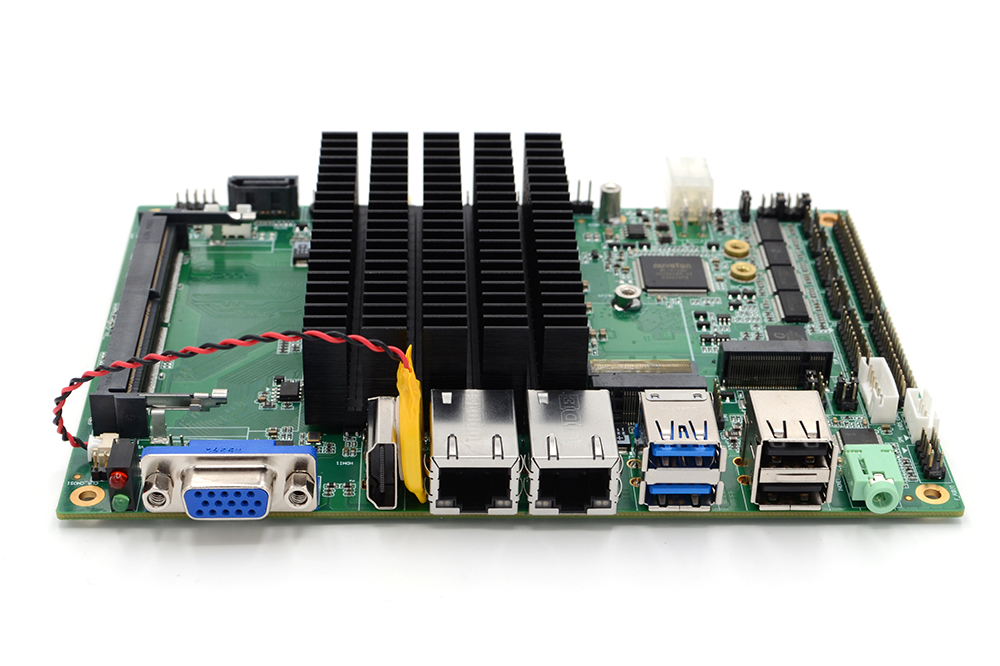

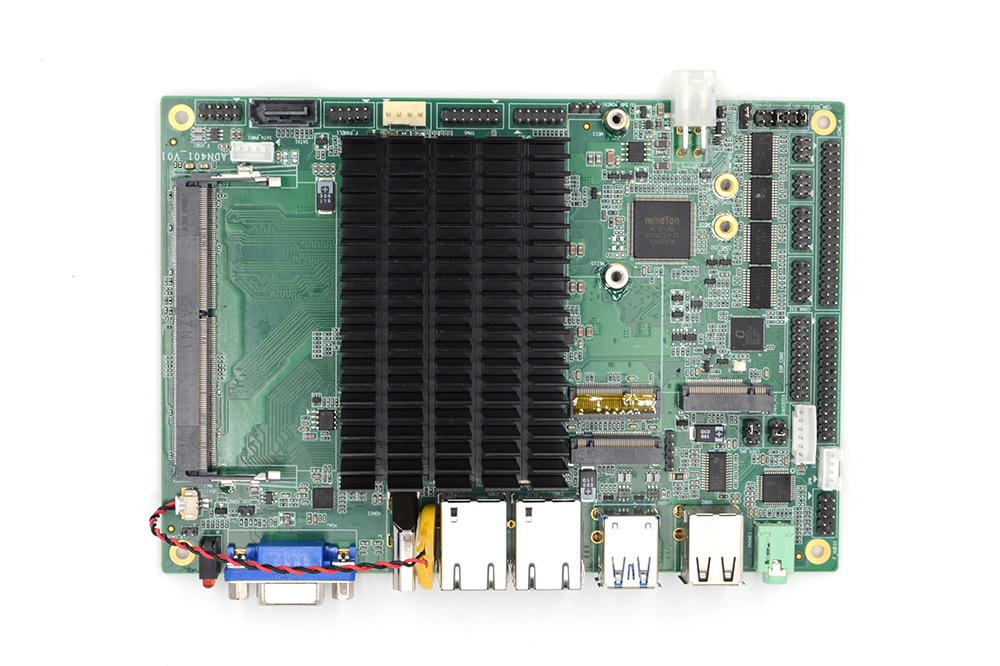

4 Inch X86 Industrial Motherboard Wide Temp Operation, Intel Low Power CPU Up to 32GB DDR4 Dual LAN Multi Video Output

PCM-ADN401 is a 4-inch fanless X86 industrial motherboard powered by Intel Alder Lake-N/Twin Lake low-power CPUs, supporting up to 32GB DDR4 SO-DIMM memory. It integrates dual Gigabit Ethernet, multi-display ports (HDMI/VGA/LVDS/eDP), 6 serial ports and abundant M.2 slots for storage, WiFi and 4G/5G modules. Equipped with wide-temperature design, it stably runs from -20°C to +60°C (optional -40°C~+75°C). Adopting silent passive cooling, it delivers high reliability for industrial control, edge gateways, digital signage and automation terminals, compatible with Win10/11 and Linux systems.

    Contact us Download
    product details

    description1

    Product Introduction

    4-inch motherboard, with onboard Alder Lake-N/Twin Lake/Amston Lake series processors.

    Intel​ Alder Lake-N/Twin Lake/Amston Lake series processors

    » Supports up to 32GB DDR4 SO-DIMM memory, frequency 2133/2666/ 3200MHz

    » Integrated Intel 12th Gen Xe LP Graphics Core

    » Supports VGA, HDMI, LVDS ( 18/24- bit single or dual channel) or EDP

    » Supports dual Gigabit 10/100/1000Mbit Ethernet, SATA, NVMe SSD

    » Supports USB 2.0 and USB 3.0 , serial port, GPIO interface, TPM

    Input voltage: +12V~+19V , + 12V is recommended .

    » Operating temperature: -20 °C to + 60 °C (optional -40°C to + 75 °C )

    Technical Information

    Plate type 4-inch motherboard
    Processor Supports Intel Alder Lake-N / Twin Lake / Amston Lake series, including:
    Intel N95, 4C4T, up to 3.4 GHz, 16 EU iGPU, TDP: 15W
    Intel N97, 4C4T, up to 3.6 GHz, 24 EU iGPU, TDP: 12W
    Intel N100, 4C4T, up to 3.4 GHz, 24 EU iGPU, TDP: 6W
    Intel N200, 4C4T, up to 3.7 GHz, 32 EU iGPU, TDP: 6W
    Intel Core i3 N300, 8C8T, up to 3.8 GHz, 32 EU iGPU, TDP: 7W
    Intel Core i3 N305, 8C8T, up to 3.8 GHz, 32 EU iGPU, TDP: 15W
    Intel Atom X7425E, 4 cores and 4 processors, up to 3.4 GHz, 24 EU iGPU, TDP: 12W
    Intel N150, 4C4T, up to 3.6 GHz, 24 EU iGPU, TDP: 6W
    Intel N250, 4C4T, up to 3.8 GHz, 32 EU iGPU, TDP: 6W
    Intel Core i3 N350, 8C8T, up to 3.9 GHz, 32 EU iGPU, TDP: 7W
    Intel Core i3 N355, 8C8T, up to 3.9 GHz, 32 EU iGPU, TDP: 15W
    Intel Atom X7211RE, 2C2T, up to 3.2 GHz, 16 EU iGPU, TDP: 6W
    Intel Atom X7213RE, 2C2T, up to 3.4 GHz, 16 EU iGPU, TDP: 9W
    Intel Atom X7433RE, 4C4T, up to 3.4 GHz, 32 EU iGPU, TDP: 9W
    Intel Atom X7835RE, 8C8T, up to 3.6 GHz, 32 EU iGPU, TDP: 12W
    Memory Supports one SO-DIMM DDR4 memory module, up to 32GB, with frequencies of 2133/2666/3200MHz.
    Graphics processing Supports one HDMI port with a maximum resolution of 3840x2160 @ 60Hz, and one VGA port with a maximum resolution of 1920x1080 @ 60Hz.
    Supports one 18/24-bit single-channel or dual-channel LVDS, with a maximum resolution of 1920x1080 @ 60Hz, or EDP.
    Network card Supports two 10/100/1000 Mbit Ethernet ports (RTL8111H)
    Storage Supports one SATA 3.0 interface and one M.2 SSD (M-Key 2280 SSD NVMe/NGFF).
    PCIe Supports one M.2 WIFI port (E-Key 2230 PCIe x1 & USB 2.0)
    Supports one M.2 4G/5G port (B-Key 3042/3052 PCIe x1 & USB 2.0)
    USB Supports 2 USB 3.0/2.0 ports and 2 USB 2.0 ports (front panel), 2 USB 2.0 ports (internal panel).
    Serial port Supports 6 RS232 ports (9 wires), with COM1 and COM2 selectable between RS232/422/485.
    IO Supports 8 GPIOs, 1 SIM card slot (expandable, optional), 1 TPM socket, and watchdog circuit.
    Sound card The ALC662/ALC897 high-fidelity sound card (Line-in, Line-out, Mic-in) integrates a power amplifier chip, one speaker output jack, and one 3.5mm audio output jack.
    Power supply +12V~+19V, +12V is recommended.
    Temperature Operating temperature: -20°C to +60°C (optional: -40°C to +75°C)
    Size 165 mm x 115 mm
    Heat dissipation Fanless cooling
    Operating system Windows 10, Windows 11, Linux
