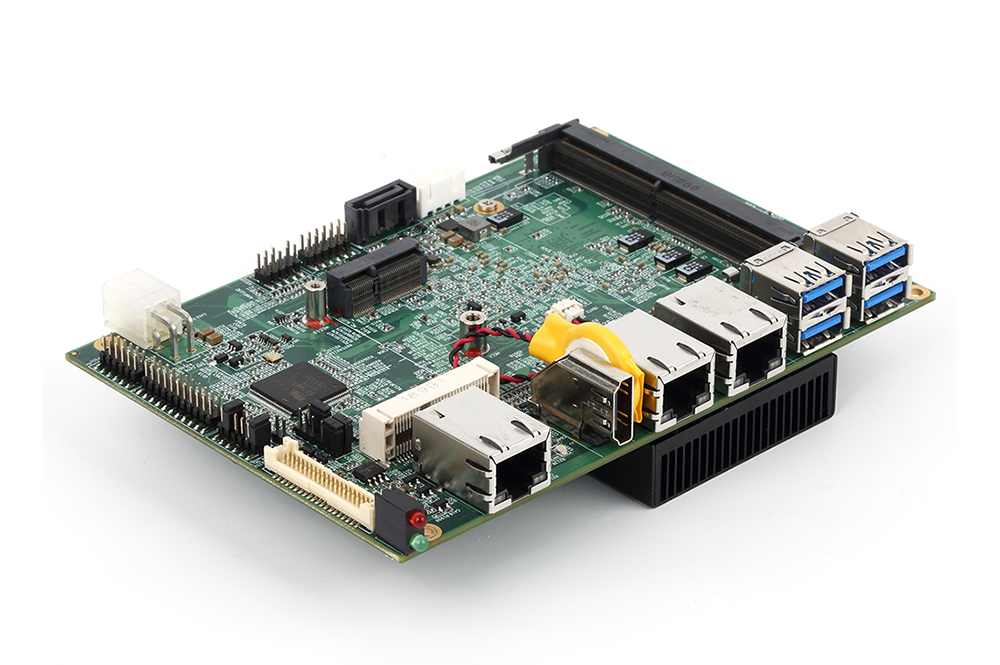

3.5 Inch X86 DDR4 Industrial Motherboard, Wide Temp -40℃~+75℃ & Multi-Display Output
description1

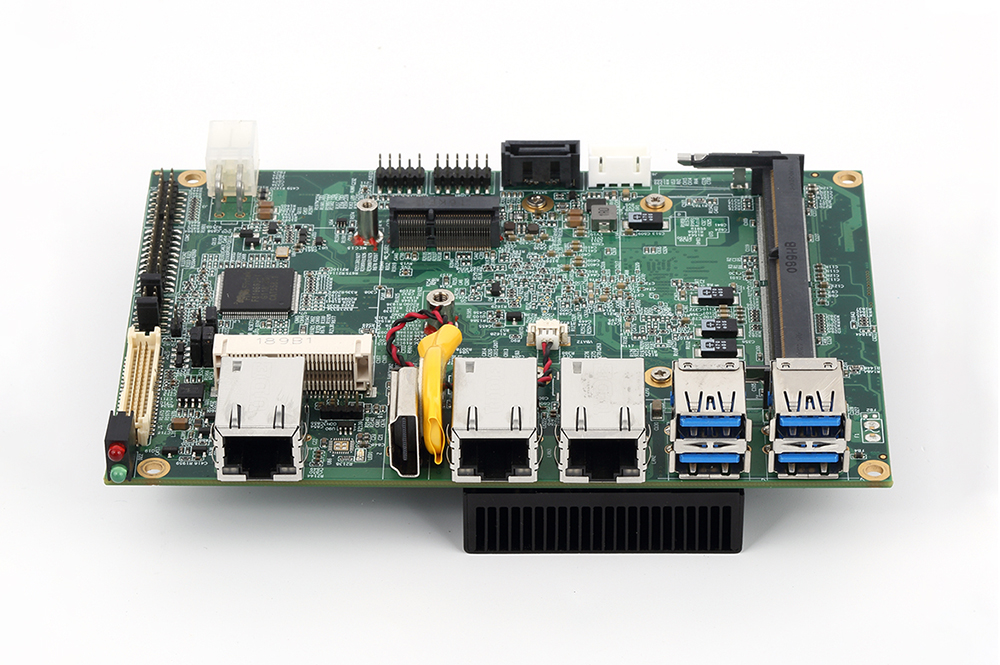

Product Introduction
3.5-inch motherboard with onboard Intel® ELKHART LAKE ™ Series SOC
» Intel® Elkhart Lake series SoCs, power consumption: 4.5-12W
» SO-DIMM DDR4 memory (1.2V, supports up to 16GB ) with a maximum frequency of 3200MHz .
» Intel's 11th generation graphics core supports DX12, MPEG2, H.264, JPEG/MJPEG, and H.265 (HEVC).
» Supports eDP 1.3 , HDMI 2.0, and LVDS ( 18/24- bit single-channel or dual-channel).
» Supports 10/100/1000Mbit Ethernet , SATA, and mSATA.
» USB 2.0 and USB 3.0 interfaces , RS232/422/485 serial port, GPIO interface.
» Voltage: + 12V ~+ 24V , + 12V is recommended .
» Operating temperature: -20 °C ~ +60 ° C (optional -40 °C ~ +75 ° C )

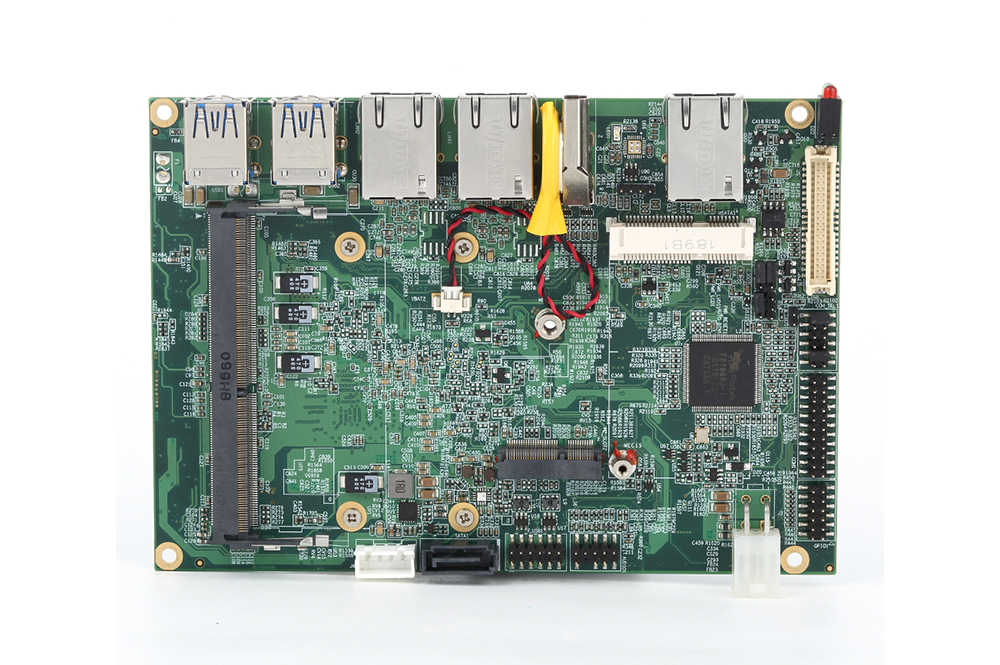

Technical Information
| Plate type | 3.5-inch motherboard |
| Processor | Intel® Elkhart Lake series SOCs support: Intel® Celeron® N6210 Dual core 1.2 GHz up to 2.6 GHz, 6.5 W Intel® Celeron® N6211 Dual core 1.2 GHz up to 3.0 GHz, 6.5 W Intel® Celeron® J6412 Quad-core 2.0 GHz up to 2.6 GHz, 10 W Intel® Celeron® J6413 Quad-core 1.8 GHz up to 3.0 GHz, 10 W Intel® Celeron® N6415 Quad-core 1.2 GHz up to 3.0 GHz, 6.5 W Intel® Celeron® J6426 Quad-core 2.0 GHz up to 3.0 GHz, 10 W Intel® Atom® X6200FE Dual-Core 1.0 GHz, 4.5 W Intel® Atom® X6212RE Dual-core 1.2 GHz, 6W Intel® Atom® X6414RE quad-core 1.5 GHz, 9W Intel® Atom® X6427FE Quad-core 1.9 GHz, 12W Intel® Atom® X6425RE Quad-core 1.9 GHz, 12W Intel® Atom® X6211E dual core 1.3 GHz up to 3.0 GHz, 6 W Intel® Atom® X6413E Quad-core 1.5 GHz up to 3.0 GHz, 9 W Intel® Atom® X6425E Quad-core 2.0 GHz up to 3.0 GHz, 12 W |
| Memory | SO-DIMM DDR4 memory (1.2V, supports up to 16GB) with a maximum frequency of 3200MHz. |
| Graphics processing | Three independent display outputs support eDP (maximum resolution 2560x1600) or LVDS (maximum resolution 1920x1200) or HDMI 1 2.0 (maximum resolution 4096x2160). |
| Network card | Supports 3 RTL8111H 10/100/1000 Mb/s Ethernet ports |
| Storage | One mSATA port, one SATA 3.0 port. 1 MPCIE |
| USB | Supports 4 USB 2.0 ports and 4 USB 3.0 ports. |
| Serial port | Supports 6 RS232 (3-wire) ports, with COM1 and COM2 selectable between RS232/422/485. |
| IO | 8 GPIO interfaces |
| Sound card | ALC662 High-Fidelity Sound Card (Line-in, Line-out, Mic-in) |
| Power supply | +12V to +24V voltage, +12V is recommended. |
| Temperature | Operating temperature: -20°C to +60°C (optional: -40°C to +75°C) |
| Size | 146 mm x 102 mm |

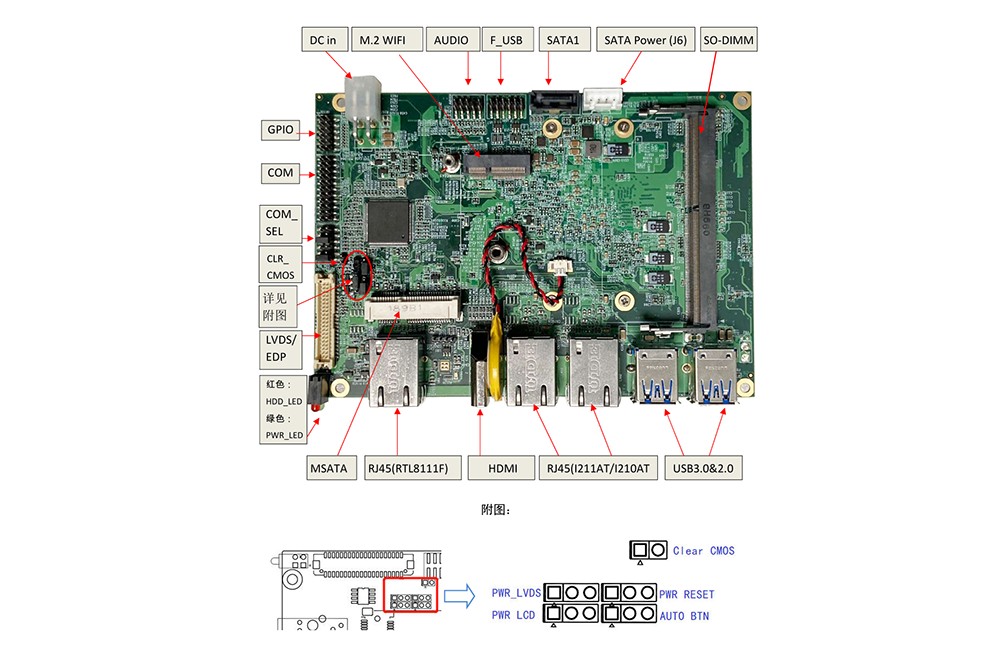

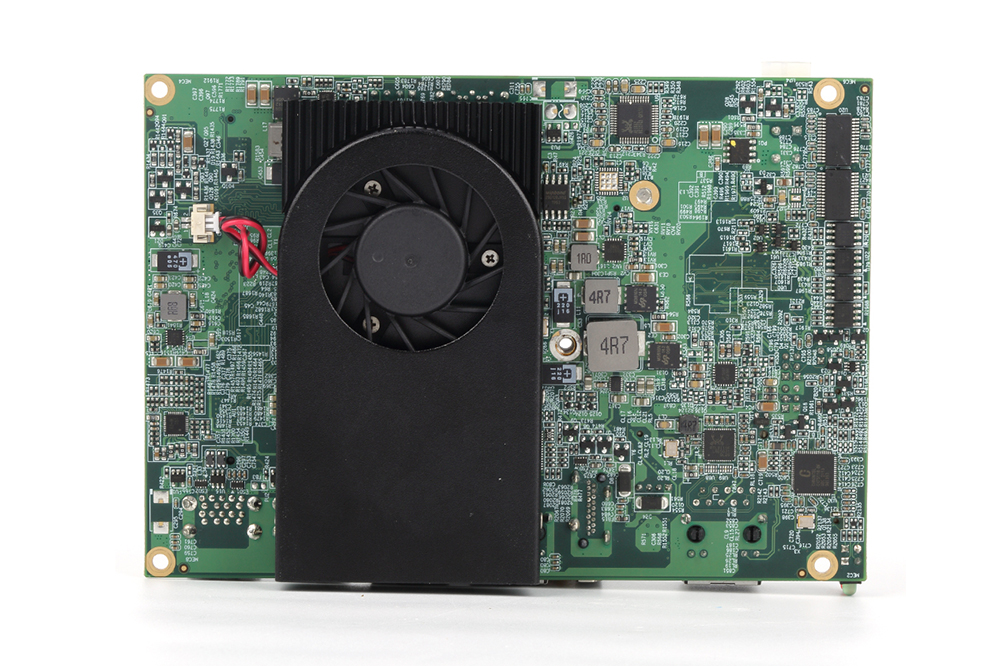

| Heat dissipation | Fan cooling |
| Operating system | Windows 10, Windows 11, Linux |
