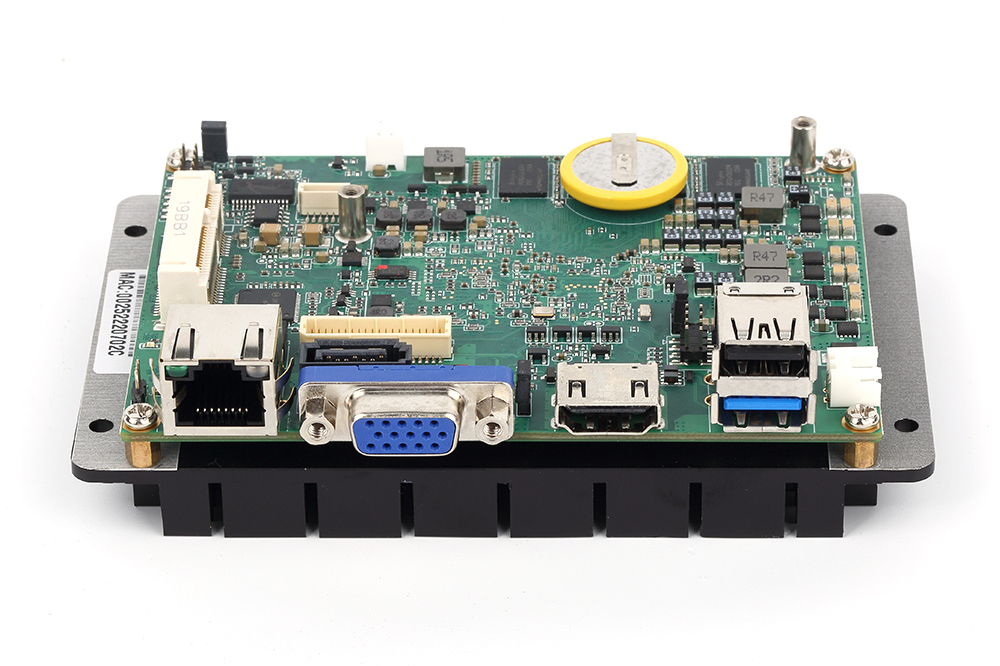

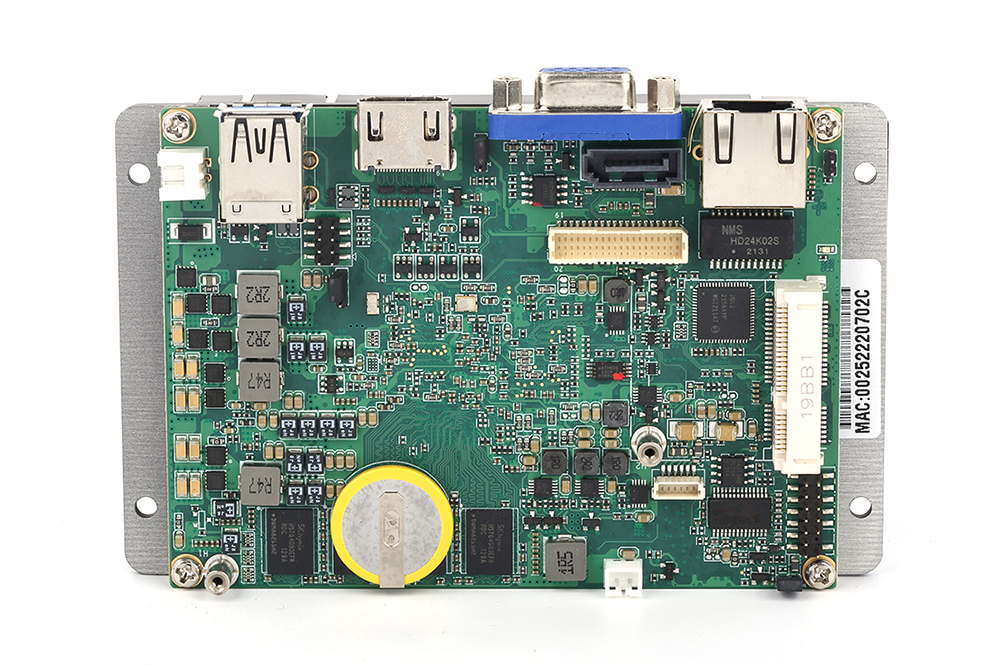

2.5 Inch Intel x86 Fanless Industrial Motherboard
description1

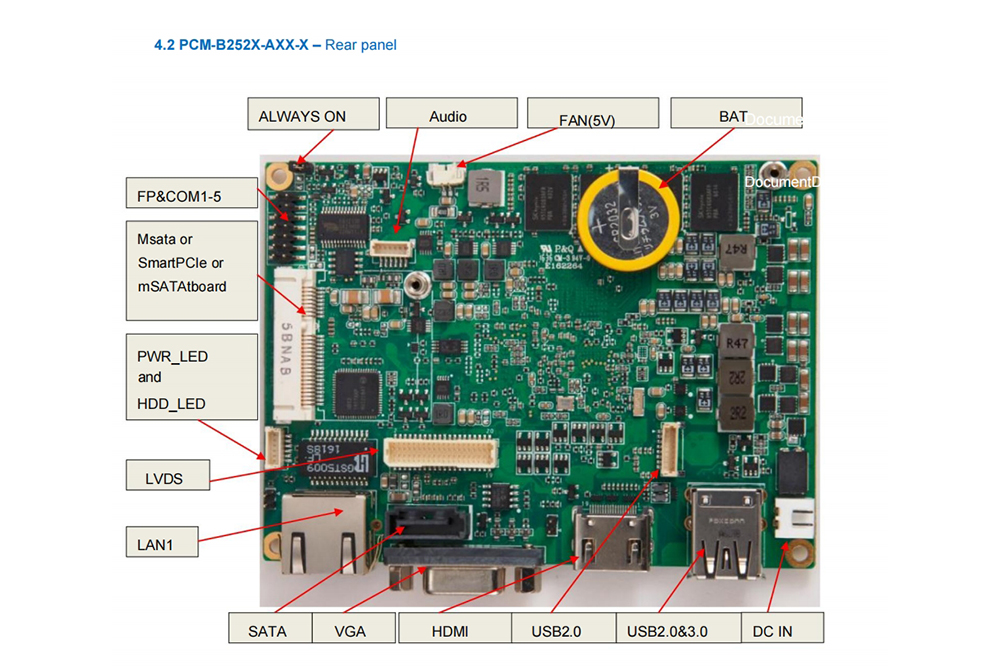

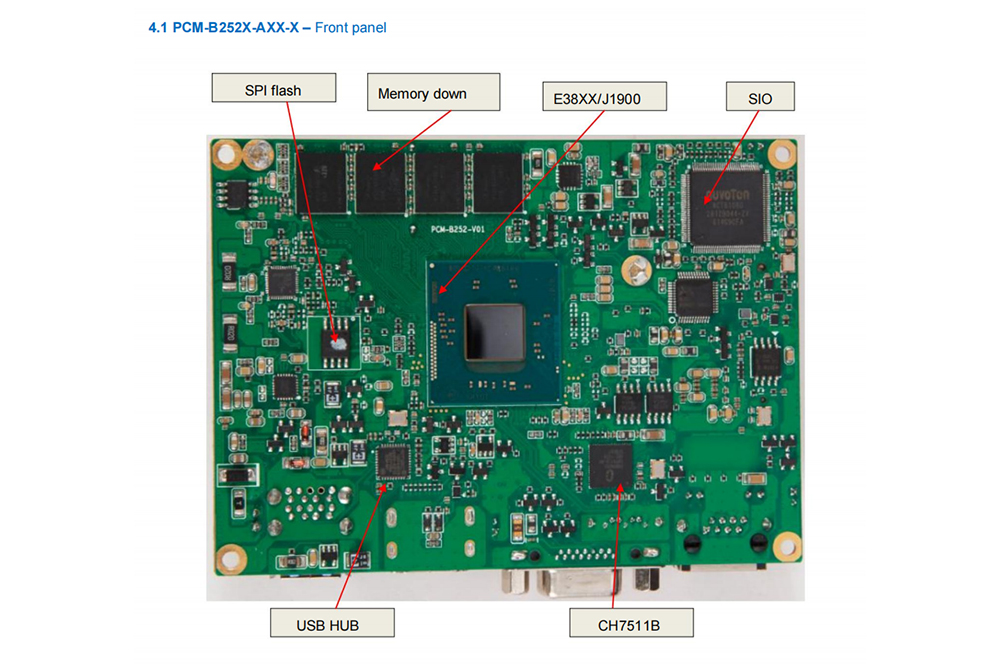

Product Introduction
Miniature 2.5-inch motherboard with an onboard Intel® Atom ™ E38XX /J1900 series ( SoC ).
» Intel® Atom ™ E38xx / J1900 series SoC (single-core , dual-core, or quad-core) , TDP: 5-10W
» 4GB onboard DDR3L memory (1.35V ) with a maximum frequency of 1333MHz
Supports Intel 7th generation graphics cores , OpenGL 3.0, OpenCL 1.2 , DX11, H.264, MPEG2, MCV, VC-1, VP8
» Supports VGA, HDMI 1.4a , and LVDS (6-bit and 8-bit optional).
» Supports 10/100/1000Mbit Ethernet ( Intel I211 AT / I210AT Ethernet ) , SATA, mSATA (half-height ) , or expansion via mPCIe connector for smartboards .
» USB 2.0 and USB 3.0 interfaces , serial port, GPIO interface ( for smartboard expansion).
» DC power input (voltage: + 12V ~ + 24V , 9-24V optional )
» Operating temperature: -20°C to +75°C
» Operating temperature: -40°C to +85°C (optional )
Technical Information
| Plate type | 2.5-inch motherboard |
| Processor | Intel® Atom™ E38xx / j1900 series SOC (single-core, dual-core, or quad-core), TDP: 5-10W Support: Intel® Atom™ E3805 Single Core 1.33GHz 3W Intel® Atom™ E3815 Single Core 1.46GHz 5W Intel® Atom™ E3825 Dual-Core 1.33GHz 6W Intel® Atom™ E3826 Dual-Core 1.46GHz 7W Intel® Atom™ E3827 Dual-Core 1.75GHz 8W Intel® Atom™ E3845 Quad-Core 1.91GHz 10W Intel® Atom™ J1900 Quad-core 2.0GHz 10W Intel® Atom™ N2807 Dual-core 1.58 GHz 4.3W |
| Memory | 4 GB onboard DDR3L memory (1.35V) with a maximum frequency of 1333MHz |
| Graphics processing | Three display output interfaces: LVDS (maximum resolution 1900x1200); HDMI 1.4a (front panel, maximum resolution 1920x1200); VGA (front panel, maximum resolution 1920x1080), supporting simultaneous asynchronous display of two channels. |
| Network card | Supports one RJ45 port (10/100/1000 Mb/s), and integrates an Intel I211AT /I210AT Ethernet card. |
| SATA | Supports one mSATA port or expansion with one Smartboard (supports one mSATA, one NGFF, and one SATA port). |
| USB | Supports 2 USB 2.0 ports (built-in); 1 USB 3.0 port (front); 1 USB 2.0 port (front). |
| Serial port | Supports 4 RS232 (3-wire) or 2 five-wire RS232 and 1 RS485 |
| Sound card | ALC662 High-Fidelity Sound Card (Line-out, Mic-in) |
| Power supply | DC +12V ~ +24V voltage, DC +12V 5A is recommended, 9-24V is optional. |
| Temperature | Operating temperature: -20 ℃ to +75 ℃ (-40 ℃ to +85 ℃ is optional) |
| Size | 110mm x 82mm |
| Heat dissipation | Fanless design |
| Operating system | Win7, Win 10, Linux |
Ordering Information
| Model | Describe |
| PCM-B252-A10-X | Display: 1 x VGA, 1 x HDMI, 1 x LVDS (6-bit) 4 GB RAM Temperature: -20 ℃ to +75 ℃ |
| PCM-B252-A11-X | Display: 1 x VGA, 1 x HDMI, 1 x LVDS (8-bit) 4 GB RAM Temperature: -20 ℃ to +75 ℃ |
| PCM-B252W-A10-X | Display: 1 x VGA, 1 x HDMI, 1 x LVDS (6-bit) 4 GB RAM Temperature: -40 ℃ to +85 ℃ |
| PCM-B252W-A11-X | Display: 1 x VGA, 1 x HDMI, 1 x LVDS (8-bit) 4 GB RAM Temperature: -40 ℃ to +85 ℃ |
| Annotation: X represents the CPU model, which includes: E3805, E3815, E3825, E3826, E3827, E3845, J1900, and N2807. | |
