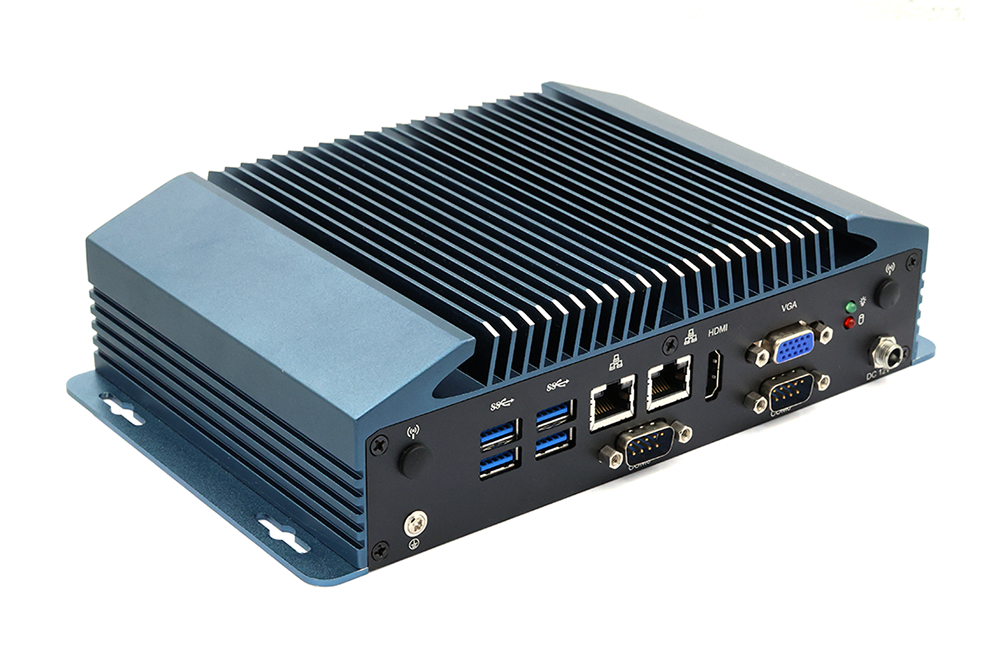

-20~60℃ Wide Temp Fanless X86 Industrial Mini Box PC, 11th Gen Intel CPU, 64GB DDR4, Dual Ethernet Multi Serial & GPIO Ports
description1
Technical Information
| Processor | 11th generation Tiger Lake processors support: Intel Core™ i3-1115G4, 2C4T, up to 4.1 GHz Intel Core™ i3-1125G4, 4C8T, up to 3.7 GHz Intel Core™ i5-1135G7, 4C8T, up to 4.2 GHz Intel Core™ i5-1145G7, 4C8T, up to 4.4 GHz Intel Core™ i7-1165G7, 4C8T, up to 4.7 GHz Intel Celeron 6305, 2C2T, 1.8 GHz Intel Celeron 6305E, 2C2T, 1.8 GHz |
| Memory | Two SO-DIMM DDR4 memory modules (1.2V, maximum support 64GB), maximum frequency 3200MHz. |

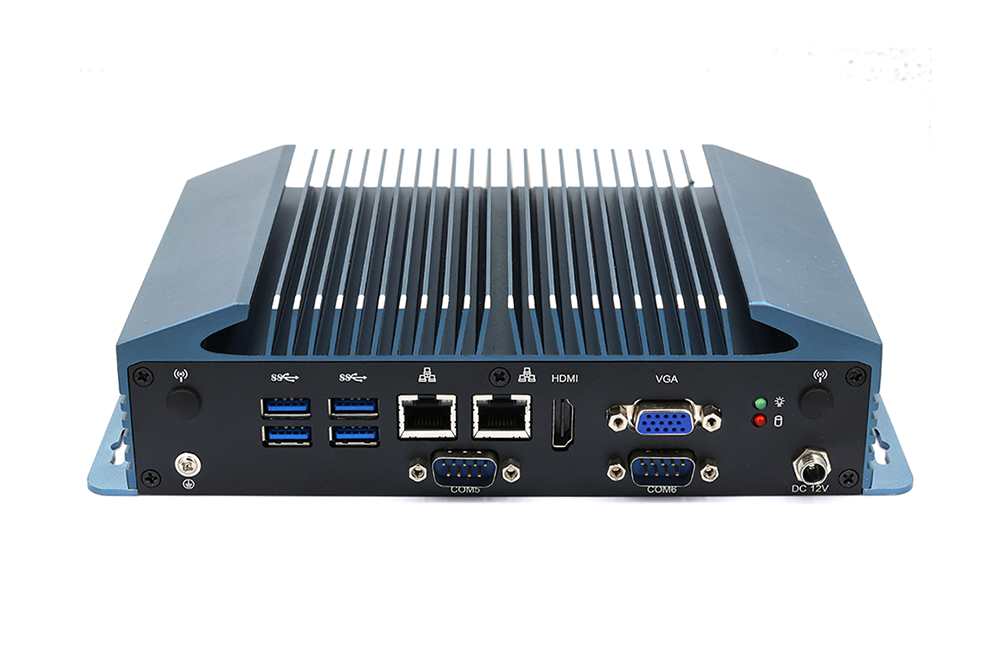

| Graphics processing | Supports one VGA port with a maximum resolution of 1920x1080 @ 60Hz Supports one HDMI port with a maximum resolution of 3840x2160 @ 60Hz. |
| Network card | Supports 2 Intel processors 10/100/1000Mbit Ethernet |
| Storage | One SATA 3.0 standard interface, one M.2 2280 SSD interface (PCIe x4) |
| PCIe | Supports one M.2 WIFI port (E-Key 2230 PCIe x1) Supports one M.2 4G/5G port (B-Key 3042/3052 USB 2.0 & PCIe x1) |
| USB | Supports 4 USB 3.0 ports and 4 USB 2.0 ports. |

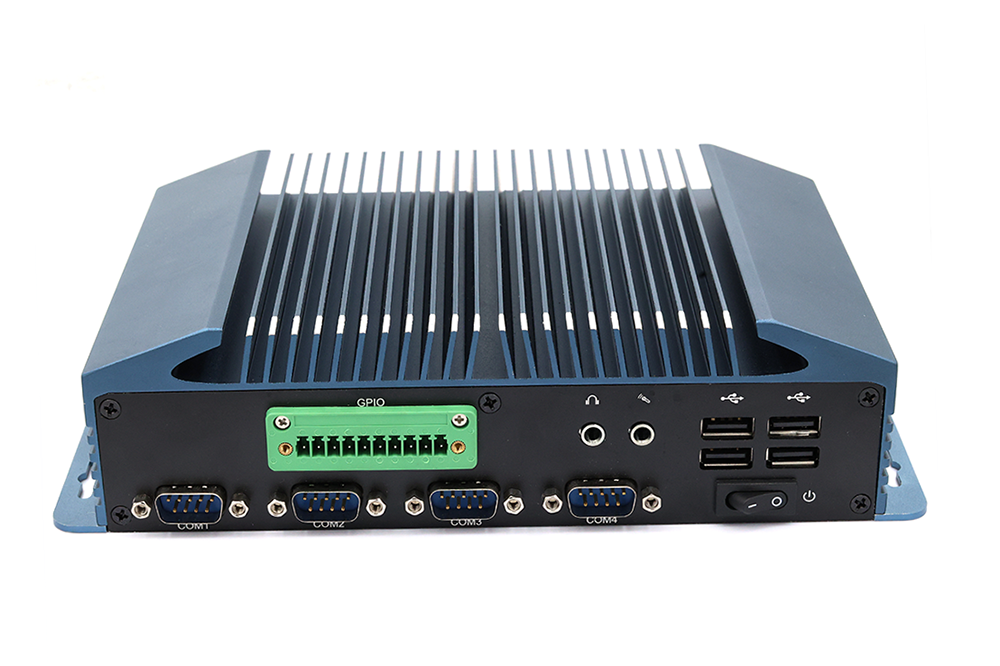

| Serial port | 4 RS232 (3-wire), 2 RS232 (3-wire) / RS422 / RS485 |
| IO | Supports 8 GPIOs and 1 SIM card slot (expandable, optional). |
| Sound card | ALC662 High-Fidelity Sound Card (Line-Out, MIC-in) |
| Power supply | +12V to +19V voltage, +12V is recommended. Power on (default), trigger power on (optional). |
| Adapter | 60W or above |
| Temperature | Operating temperature: -20°C to +60°C (-40°C to +70°C is optional) |
| Size | 205 mm (length) x 140 mm (width) x 55 mm (height) (Overall dimensions excluding wall mount and external interface) |
| Heat dissipation | Fanless design |
| Operating system | Windows 10, Windows 11, Linux |
| Weight | 1.46 kg (bare machine), 2.55 kg (including packaging) |
| Color | The entire unit is blue, with black front and rear panels. |
FAQ
Q1: What makes ECS-T351 different from standalone 3.5-inch motherboards?
A: It is a fully assembled all-in-one box PC with integrated aluminum heat sink casing, no extra chassis assembly needed. Powered by 11th Gen Tiger Lake Core i7/i5/i3 & Celeron CPUs, it supports dual DDR4 slots up to 64GB memory, far larger capacity than single-slot 3.5-inch boards.
Q2: What unique IO and storage layout does it carry?
A: It carries 8 USB ports (4 USB3.0 + 4 USB2.0), dual storage slots (SATA + NVMe M.2), plus two independent M.2 slots for Wi-Fi and 4G/5G cellular modules. It reserves trigger power-on function for customized industrial control.
Q3: Temperature range and structural strengths?

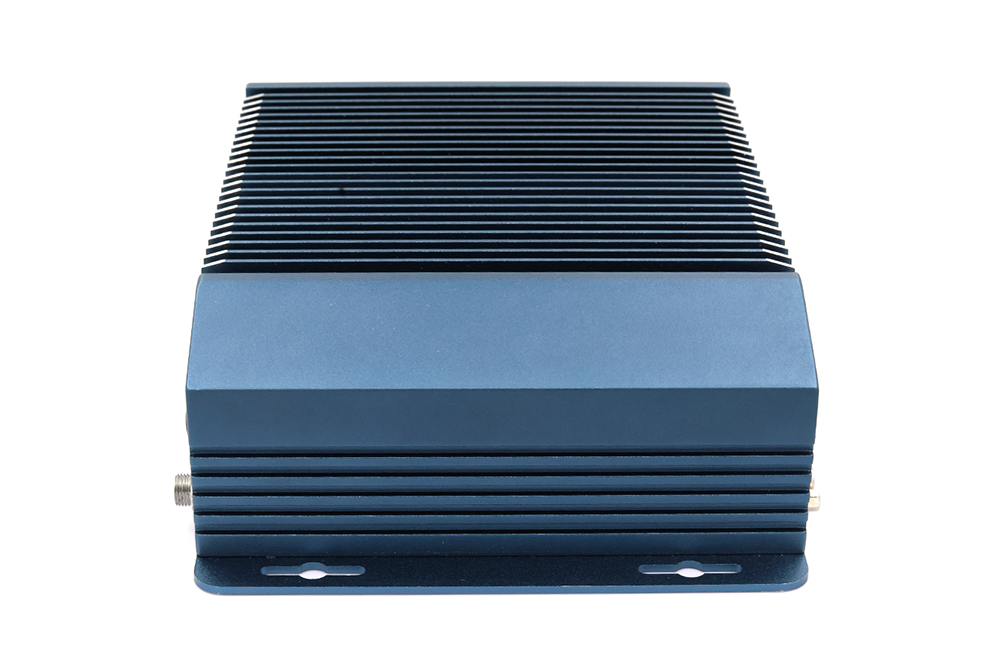

A: Standard -20℃~+60℃, optional -40℃~+70℃ wide temp variant. The whole aluminum housing acts as heat radiator, delivering silent fanless operation without maintenance.
Q4: Manufacturer and target usage?
A: Developed by Shenzhen YDSTECH. Suited for high-load machine vision, self-service kiosks and factory automation that demand pre-built, ready-to-run industrial computing hardware.
