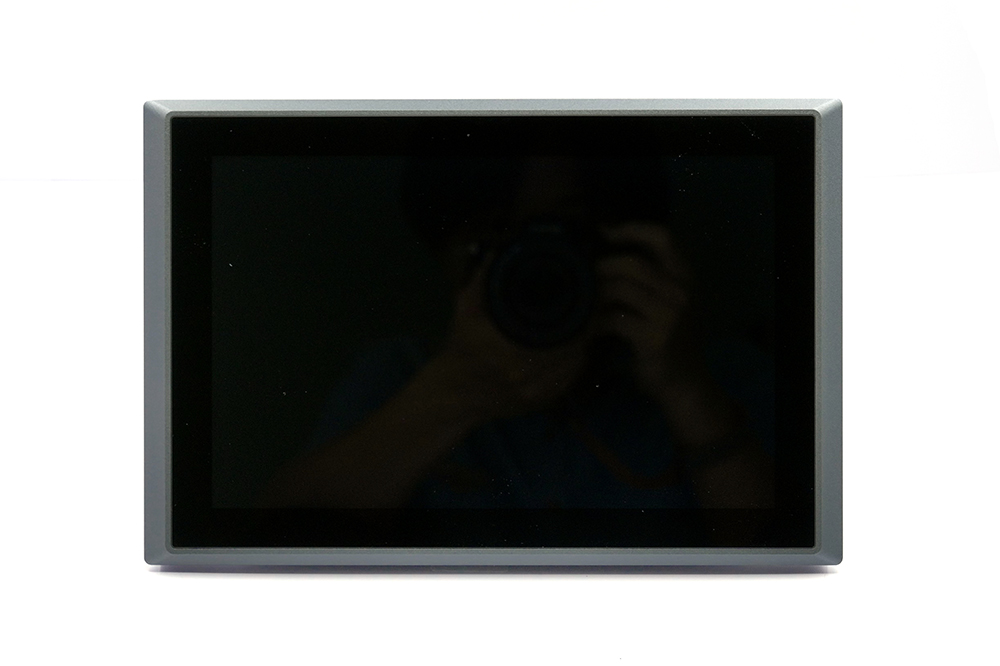

PPC-ADP351 1000 Nits Outdoor High-Brightness Industrial Panel 01.jpg
PPC-ADP351 1000 Nits Outdoor High-Brightness Industrial Panel 02.jpg

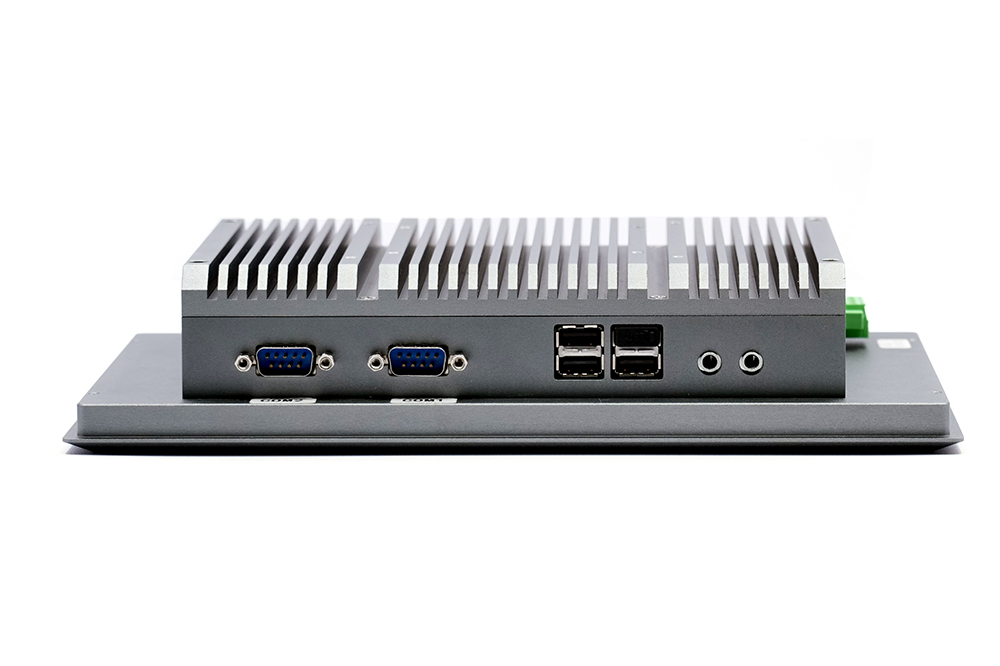

PPC-ADP351 1000 Nits Outdoor High-Brightness Industrial Panel 03.jpg

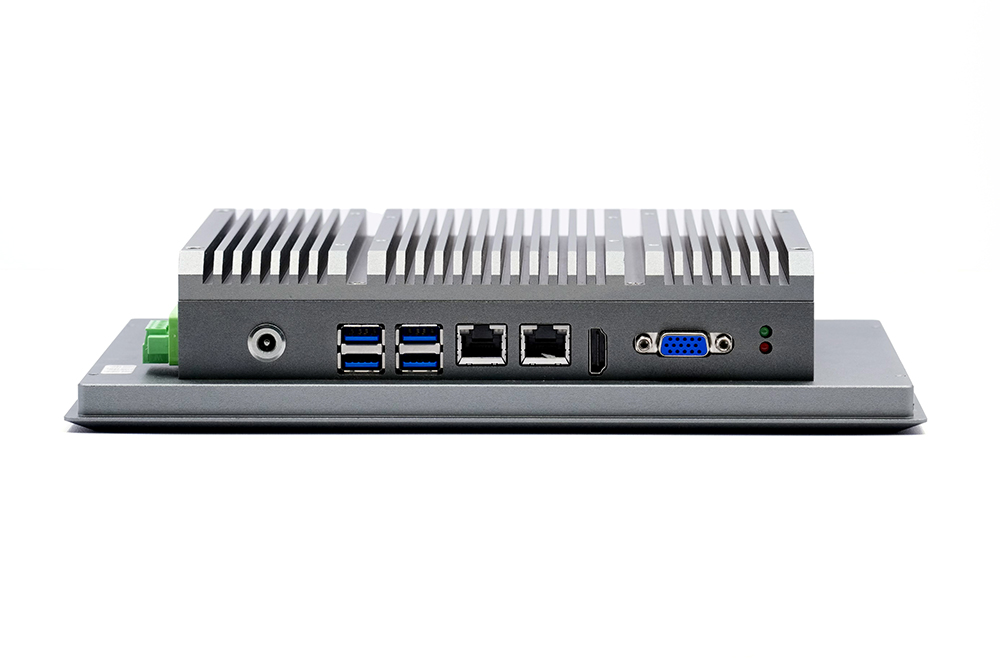

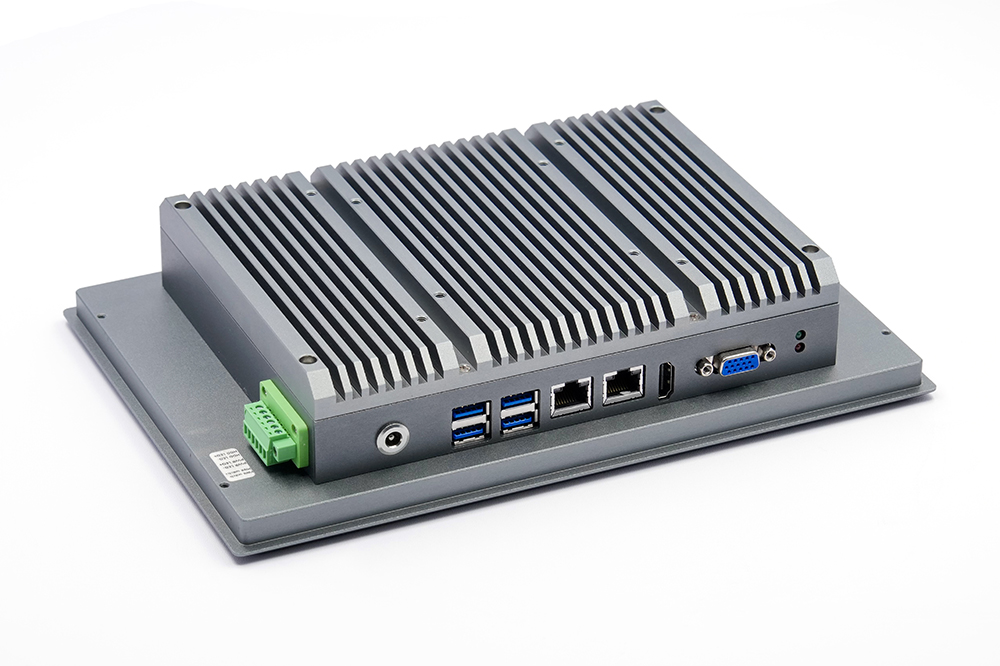

PPC-ADP351 1000 Nits Outdoor High-Brightness Industrial Panel 04.jpg

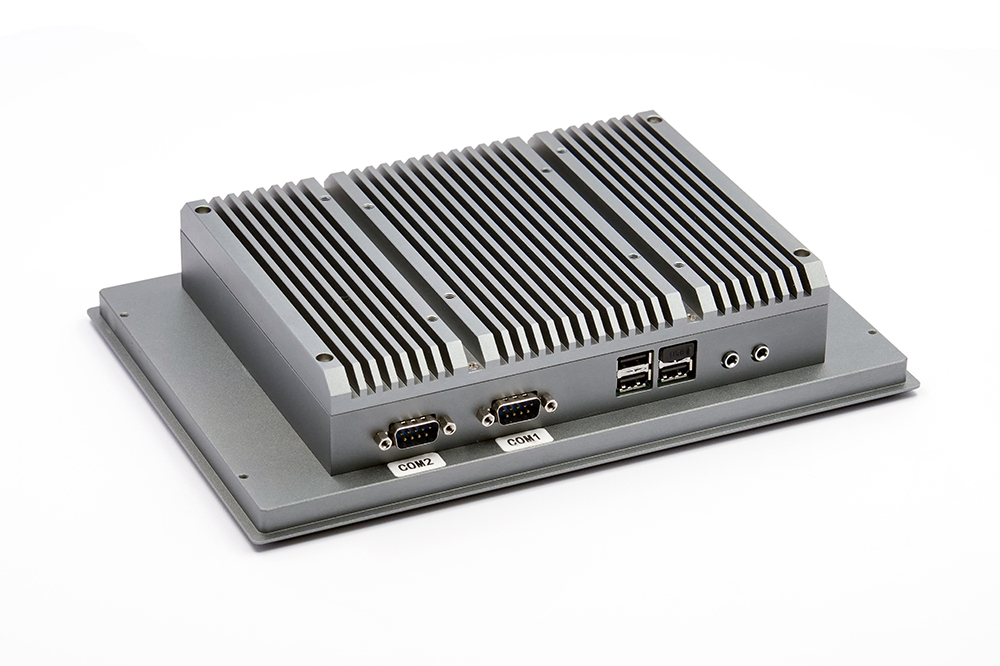

PPC-ADP351 1000 Nits Outdoor High-Brightness Industrial Panel 05.jpg

1000cd/m² High Bright X86 Outdoor HMI Panel, Wide Temp, 12th Gen Core CPU, Max 64GB DDR4, Multi Serial & Ethernet Ports

PPC-ADP351 is a 10.1-inch X86 outdoor high-bright industrial panel PC powered by 12th Gen Intel Core i3/i5/i7 CPUs. It supports up to 64GB DDR4 memory, dual Gigabit LAN, abundant USB and RS232/422/485 serial ports, plus M.2 slots for 4G/5G and WiFi expansion. With a 1000cd/㎡ sunlight-readable screen, it features wide-temperature operation from -20℃ to +60℃ (customizable -40℃~+70℃). Running Win10/11 and Linux, it delivers 30,000-hour MTBF. Ideal for factory automation, outdoor monitoring, smart equipment and harsh industrial scenarios with extreme temperature environments.

    Contact us Download
    product details

    description1

    Technical Information

    Model PPC-ADP351
    Processor Intel Core™ i3-1215U, 2C+4A, up to 4.4 GHz (P-Core) and 3.3 GHz (E-Core), 15W-55W
    Intel Core™ i5-1235U, 2C+8A, up to 4.4 GHz (P-Core) 3.3 GHz (E-Core), 15W-55W
    Intel Core™ i7-1255U, 2C+8A, up to 4.7 GHz (P-Core) 3.5 GHz (E-Core), 15W-55W
    Memory Two dual-channel SO-DIMM DDR4 memory modules, maximum 64GB, frequency 2133/2666/3200MHz
    Network card Supports two 10/100/1000Mbit Ethernet ports
    PCIe Supports one M.2 Wi-Fi port (E-Key 2230 PCIe x1)
    and one M.2 4G/5G port (B-Key 3042/3052 USB 2.0 & PCIe x1).
    SATA Supports one SATA 3.0 interface and one M.2 SSD (M-Key 2280 SSD NVMe).
    Audio One 3.5mm audio output and one microphone input jack
    USB Supports 4 USB 3.0 ports and 4 USB 2.0 ports.
    Serial port 2 COM ports (RS232/422/485 optional), supports expansion to 6 COM ports (2 of which are optional RS232/422/485).
    Physical resolution 1280x800
    Display area 216.96 mm × 135.60 mm
    Color 16.7M colors
    Lumen The center brightness of the display should not be less than 1000 cd/m²
    LCD mode Single channel, 8-bit LVDS
    Backlight mode LED backlight module
    Power interface DC12V
    Temperature Operating temperature: -20°C to +60°C (optional: -40°C to +70°C)
    Overall dimensions 270 mm (H) × 180 mm (V) × 55 mm (D)
    Operating system Windows 10, Windows 11, Linux
    Weight 3 kg (max)
    MTBF 30000h

    Ordering Information

    Model Describe

    PPC-ADP351- I3/ 1215U

    10.1-inch high-brightness screen, optional memory and hard drive.

    PPC-ADP351 - I5 / 1235U

    10.1-inch high-brightness screen, optional memory and hard drive.

    PPC-ADP351 - I7 / 1235U

    10.1-inch high-brightness screen, optional memory and hard drive.
